Sony PVM-A250 - OLED Module Assembly

1-12 (E)
PVM-A250

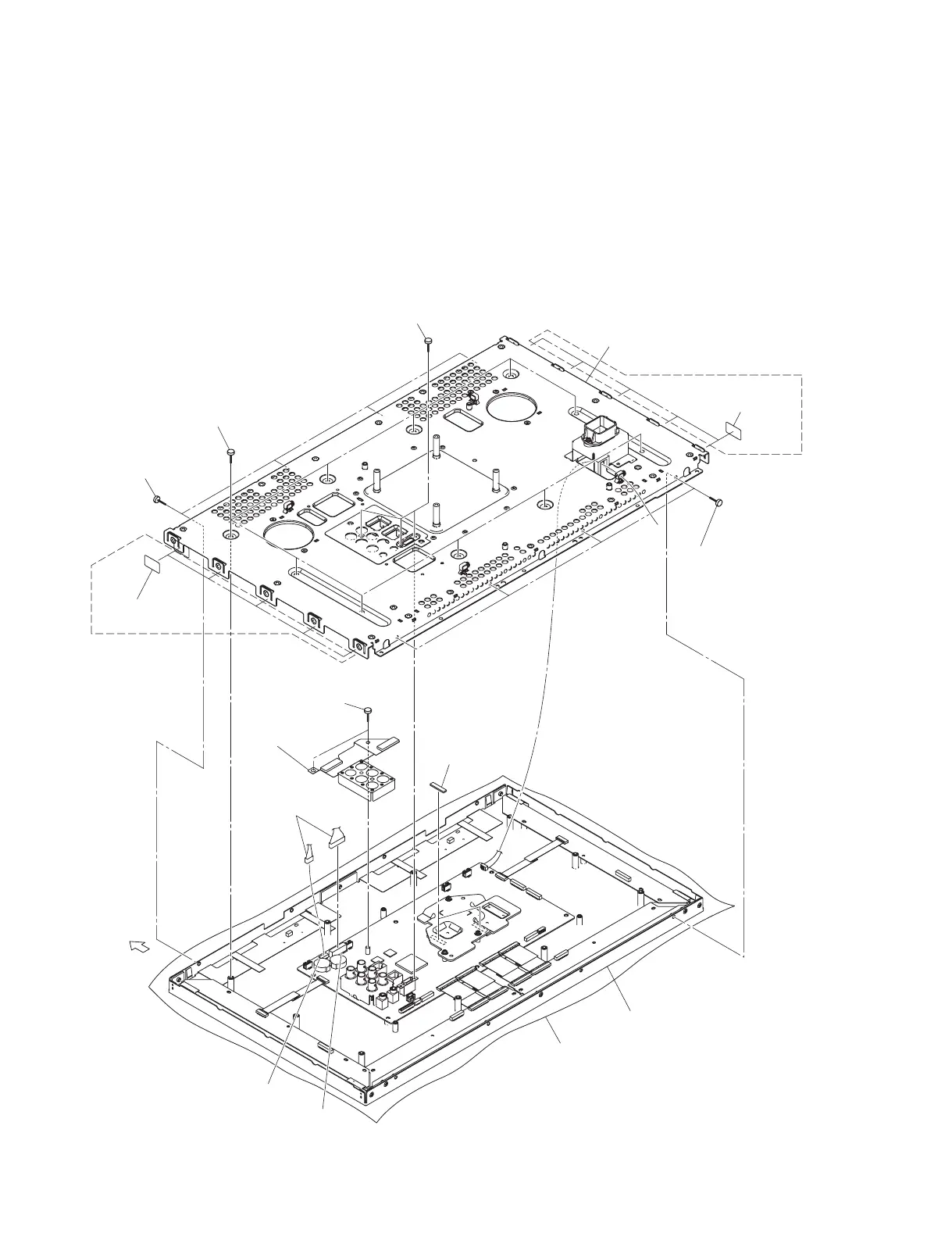

1-4-9. OLED Module Assembly
. Remove the rear cover. (Refer to Section 1-4-1.)
. Remove the PWM fan (left). (Refer to Section 1-4-2.)
. Remove the G2 board. (Refer to Section 1-4-3.)
. Remove the PWM fan (right). (Refer to Section 1-4-4.)
. Remove the bezel assembly. (Refer to Section 1-4-5.)
3 Ten screws
(PSW4 x 8)
4 Four screws
(PSW3 x 6)
5 Four screws
(PSW3 x 6)
0 Two screws
(PSW3 x 6)
2 Three screws
(B3 x 5)
1 Two harnesses
!- EMC bracket
9 Two gaskets
!= OLED module assembly
8 Main frame assembly
6 Five conductive
tapes
7 Five conductive
tapes
Conductive cushion
CN4007
CN4008
Upper side
*1
*1
*1: Serial No.7000001 to 7001869: PVM-A250 (SY)
Serial No.7200001 to 7200148: PVM-A250 (CN)
