Sony PVM-A250 - Audio Signal Processing; CPU Functionality

2-3 (E)
PVM-A250
IC6000
I2C3
I2C2
I2C1
I2C0
SIO1
SIO0
Tool board
Tool board
HDMI_EDID_DIR_OUT_EN_X
Log output for debugging
Auxiliary I/O for board adjustment
CPU_I2C3
High-Speed
Switching
Q9200
CN9201
IC8000
CRE4 GAMMA
IC8501
IC6200
IC6201
IC6202
CPU_I2C2
IC7000
IC7003
HDMI_DEC
IC2003
Level
conversion
Level
conversion
EDID
IC2000
CN2000
CN4006
I/O_EXP
I/O_EXP
IC001
IC002
Sensor
IC1
CN6200
CN6201
CN1
CN3
CN001
HDMI
RealTime CLKEEPROM EEPROM
Audio Proc
Level
conversion
CPU_I2C1
CPU_I2C0
H1
H2
Sensor
IC2002
IC4000
MCPU_SIO0
MCPU_SIO1
2ch Analog SW
CPU_HDMI_I2C_EN
Tool terminal
IC2004
SPI
IC5000
FPGA_KB
CPU_SPI
IC6205
2. Audio signal processing
The audio signal embedded into an SDI signal is decoded using IC5000. The audio signal embedded into
an HDMI signal is decoded using IC2003. One signal is selected out of these two kinds of digital signals
and an analog audio signal from AUDIO IN terminal, and sent to an analog output terminal, speaker
output terminal, and then headphone output terminal.
3. CPU
The CPU of this unit is mounted in IC6000. Each device is set and controlled by the user control and
parallel remote control from an H1 board, the control from LAN, and the value that a panel temperature
sensor detects.

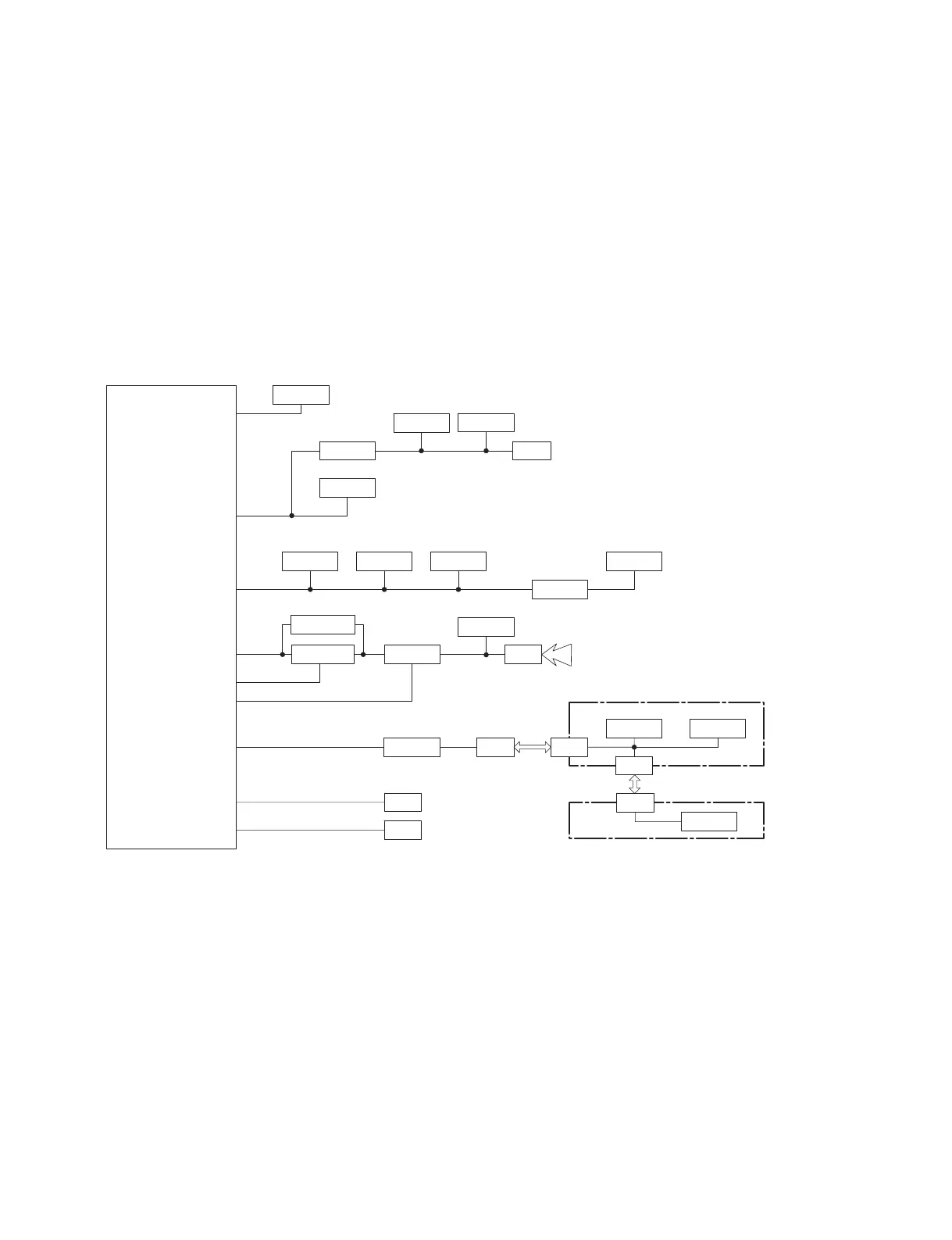

Connection buses are as shown below.
