Sony RCD-W1 - CD-R Mechanism and Sled Mechanism Removal; CD-R Mechanism Assy (Deck B) Removal; Sled Mechanism Assy Removal

15
RCD-W1

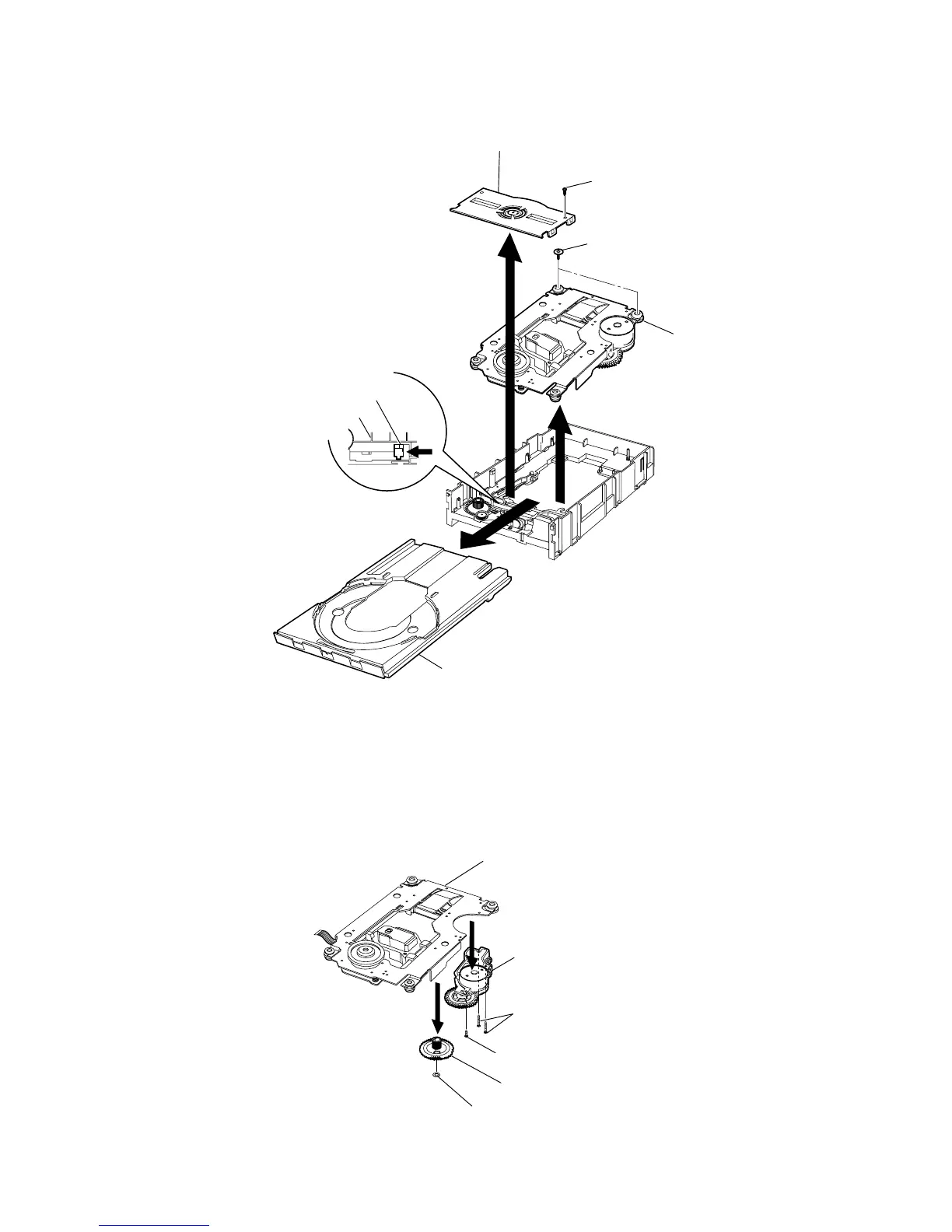

3-12. CD-R MECHANISM ASSY (DECK B)
3-13. SLED MECHANISM ASSY
1 Screw (1.7X6)
3 Clamp holder assy
7
2
8
A
5
Two screws
9 CD-R mechanism ass
y
4 Push out the disc tray by pushing the
Up/Down suide un the drrow
A direction.
6 Disc tray
Up/Down guide
Main base
Bottom view
3 Screw (2.0x4.5)
Washer
2
1
Pinion gear assy
4 Two screws (2.0x11.5)
5 Sled mechanism assy
CD-R mechanism assy
