Sony RCD-W1 - SECTION 6 EXPLODED VIEWS; Front Panel Exploded View

61
RCD-W1
SECTION 6
EXPLODED VIEWS

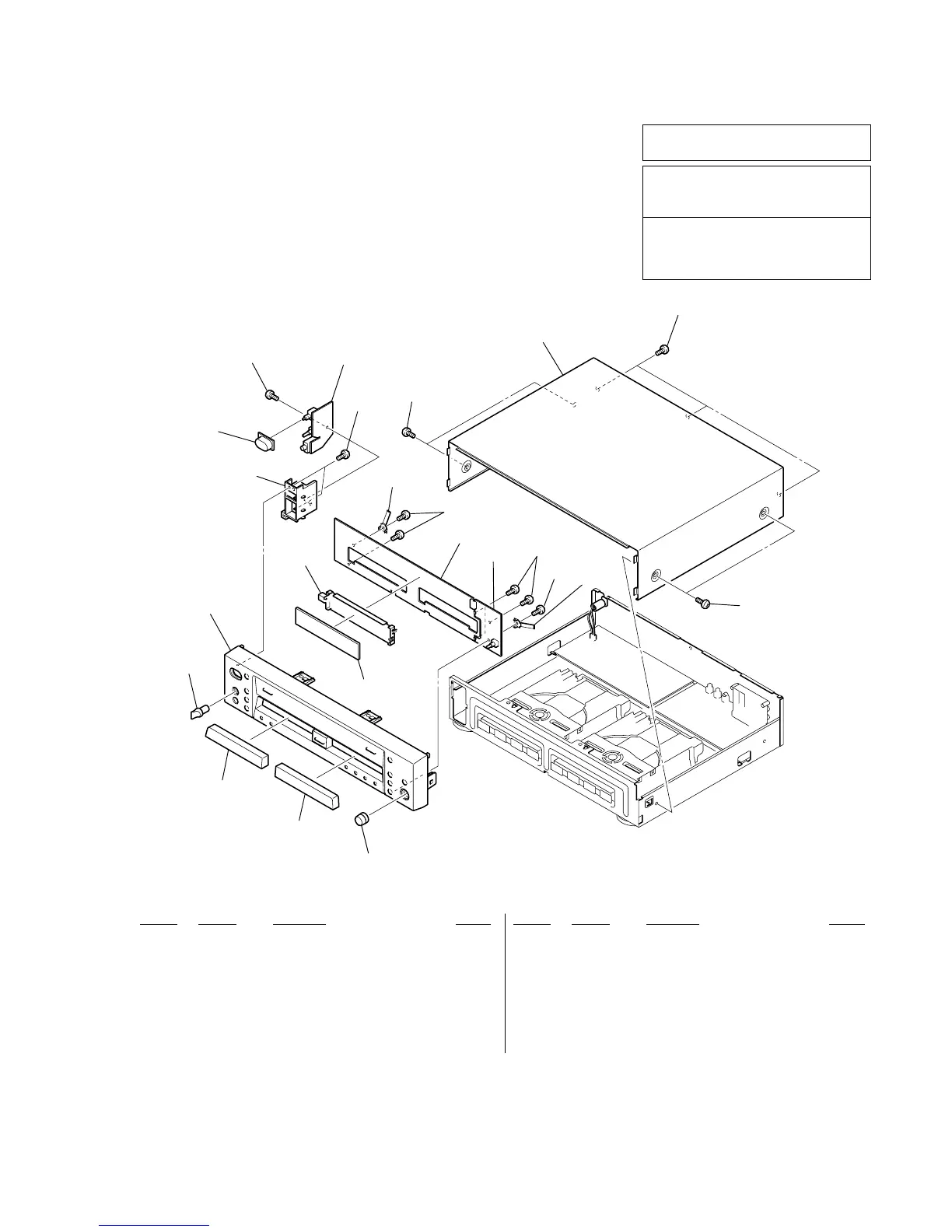

6-1. FRONT PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
MX : Mexican model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant le
numéro spécifié.
When indicating parts by reference number,
please include the board name.
1
2
3
4
5
6
7
7
7
7
8
10
11
12
not supplied
not supplied
not
supplied
FLD801
not
supplied
7
9
10
10
1 4-235-379-01 KNOB, REC VOL
2 4-235-360-01 DOOR, TRAY (REC)
3 4-235-359-01 DOOR, TRAY (PLAY)
4 4-235-378-01 KNOB, P/VOLUME
5 4-235-449-01 PANEL ASSY, FRONT
6 4-235-380-01 KNOB, POEWR
7 4-235-377-01 SCREW, SPECIAL
8 A-4726-177-A HP BOARD,COMPLETE
9 4-235-363-01 CASE, TOP
10 4-235-383-01 SCREW (CASE)
11 A-4726-178-A VOL BOARD,COMPLETE
12 A-4726-179-A FL BOARD,COMPLETE
FLD801 1-518-766-11 INDICATOR TUBE, FLUORESCENT
