Sony RCD-W3 Service Manual

10
RCD-W3

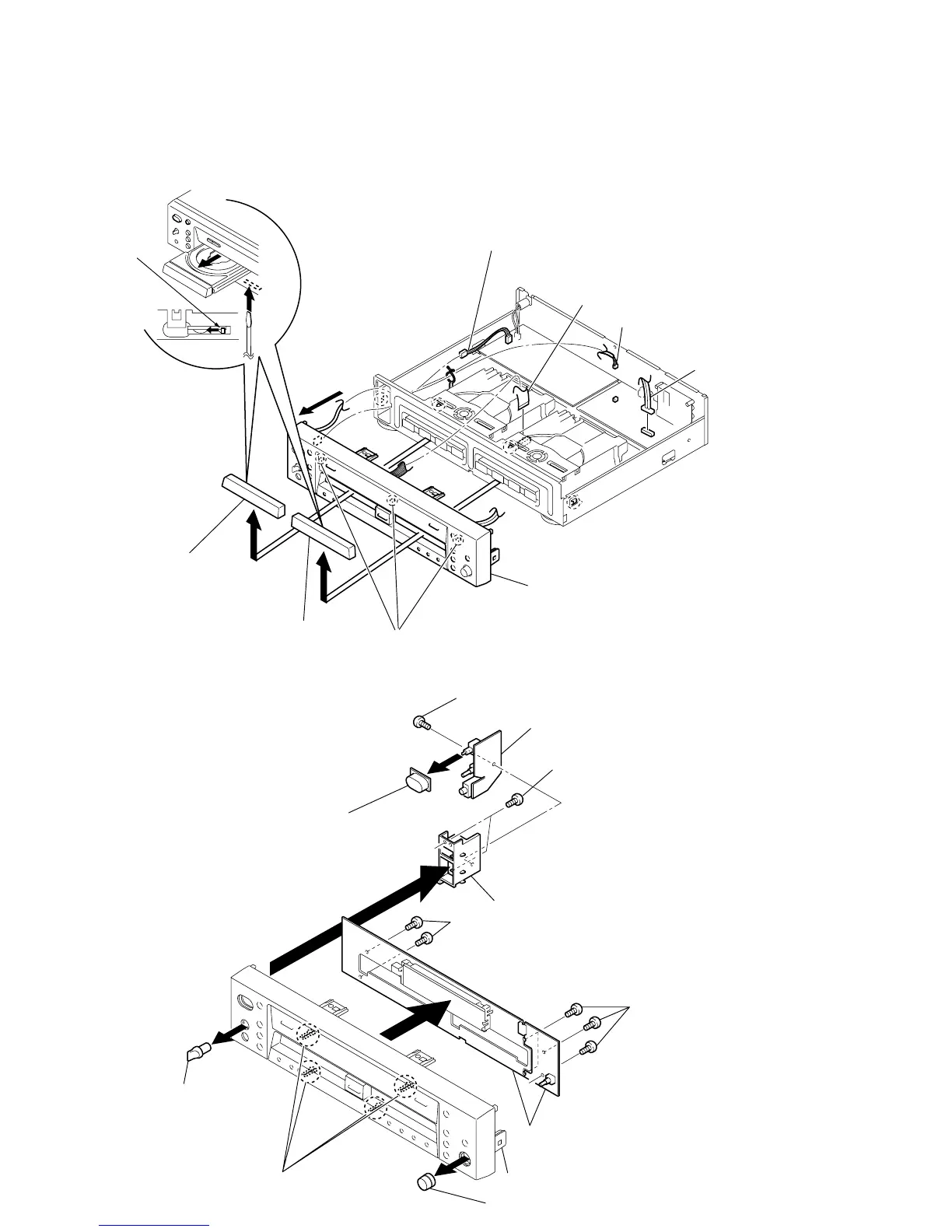

3-2. TRAY DOOR, FRONT PANEL ASSY
3-3. HP BOARD, FL BOARD, VOL BOARD
5 Connector (PN902)
4 Connector (PN401)
3 Connector (CN704)
2 Connector (CN702
)
8 Front panel assy
6
7
Claws
Tray door (Rec)
(deck B)
Tray door (Play)
(deck A)
1
Insert a screwdriver to the square hole on the bottom,
and slide the white lever in the arrow A direction to
open the tray.
Then remove the tray door.
(In the case of DECK B, remove it in the same manner.)
A
White lever
7 Screw (Special)
8 HP board
3 Two screws (Special)
5
4
PWB holder
0 Two screws (Special)
9 Four screws (Special)
qs FL board and VOL board
1 REC VOL knob
qa Claws
Front panel
6 POWER knob
2 P/VOLUME knob

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
