Sony RCD-W3 Service Manual

9
RCD-W3
SECTION 3
DISASSEMBLY

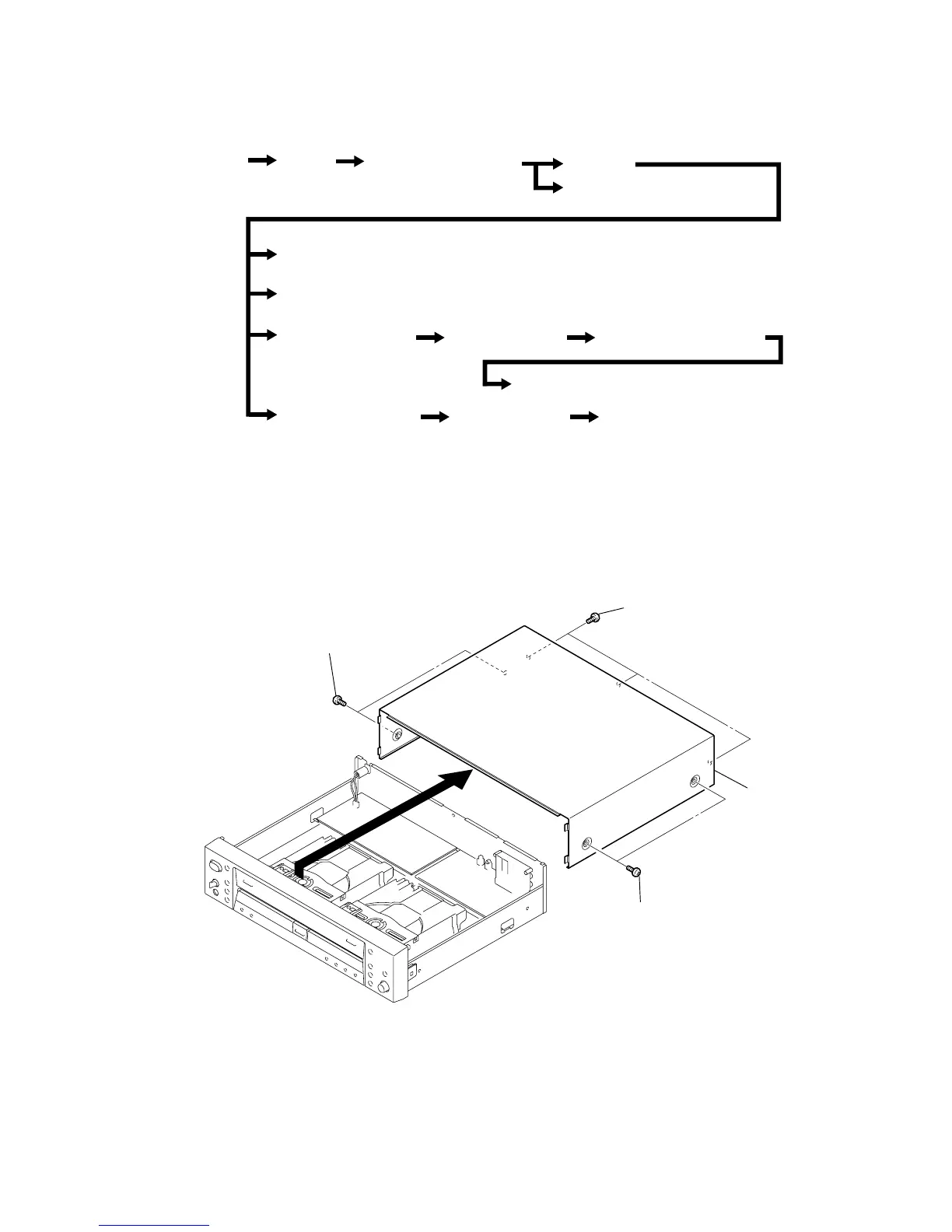

3-1. TOP CASE
Note: Disassemble the unit in the order as shown below.
Note: Follow the disassembly procedure in the numerical order given.
Set
Back panel
HP board, FL board, VOL board
Tray door, Front panel assy
Audio board
Power board
CDP deck assy (deck A)
BD-P board (deck A)
CDP mechanism assy (deck A)
Spindle motor assy, Optical pick-up block (deck A)
CD-R deck assy (deck B)
BD-R board (deck B)
CD-R mechanism assy (deck B)
Top case
3
4
Three screws (case)
2 Two screws (case)
1 Two screws (case)
5 Top cas
e

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
