Sony RCD-W3 Service Manual

4
RCD-W3
SECTION 1
SERVICING NOTE

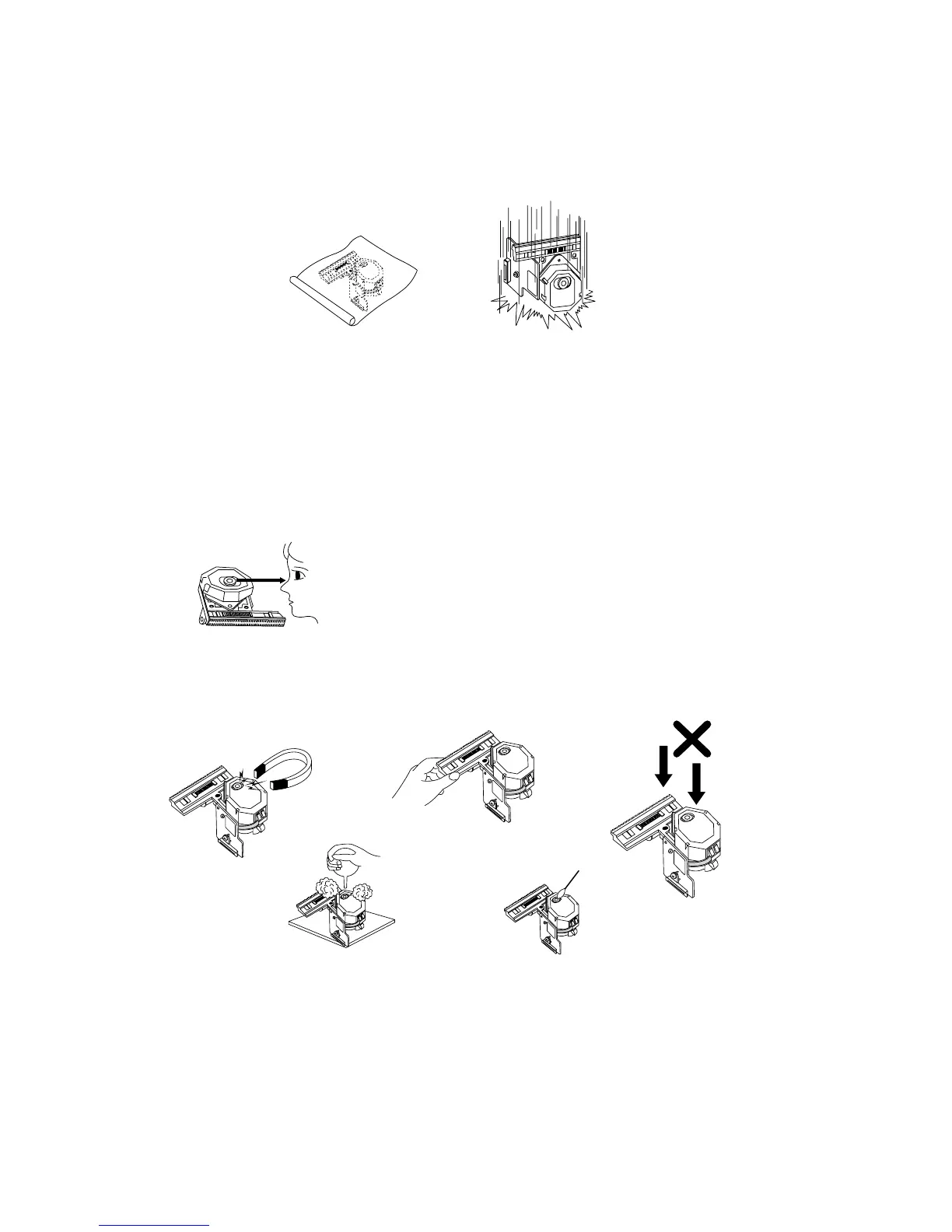

NOTES REGARDING HANDLING OF THE PICK-UP
1. Notes for transport and storage
1) The pick-up should always be left in its conductive bag until immediately prior to use.
2) The pick-up should never be subjected to external pressure or impact.
2. Repair notes
1) The pick-up incorporates a strong magnet, and so should never be brought close to magnetic materials.
2) The pick-up should always be handled correctly and carefully , taking care to avoid external pressure and impact.
If it is subjected to pressure or impact, the result may be an operational malfunction and/or damage to the
printed-circuit board.
3) Each and every pick-up is already individually adjusted to a high degree of precision, and for that reason the
adjustment point and installation screws should absolutely never be touched.
4) Laser beams may damage the eyes!
Absolutely never permit laser beams to enter the eyes!
Also NEVER switch ON the power to the laser output part (lens, etc.) of the pick-up if it is damaged.
5) Cleaning the lens surface
If there is dust on the lens surface, the dust should be cleaned away by using an air bush (such as used for
camera lens). The lens is held by a delicate spring. When cleaning the lens surface, therefore, a cotton swab
should be used, taking care not to distort this.
6) Never attempt to disassemble the pick-up.
Spring by excess pressure. If the lens is extremely dirty, apply isopropyl alcohol to the cotton swab. (Do not use any
other liquid cleaners, because they will damage the lens.) Take care not to use too much of this alcohol on the swab,
and do not allow the alcohol to get inside the pick-up.
Storage in conductive bag
NEVER look directly at the laser beam, and don’t let contact
fingers or other exposed skin.
Magnet
How to hold the pick-up
Conductive Sheet
Cotton swab
Pressure
Pressure
Drop impact

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
