Sony RCD-W3 Service Manual

52
RCD-W3
SECTION 6
EXPLODED VIEWS

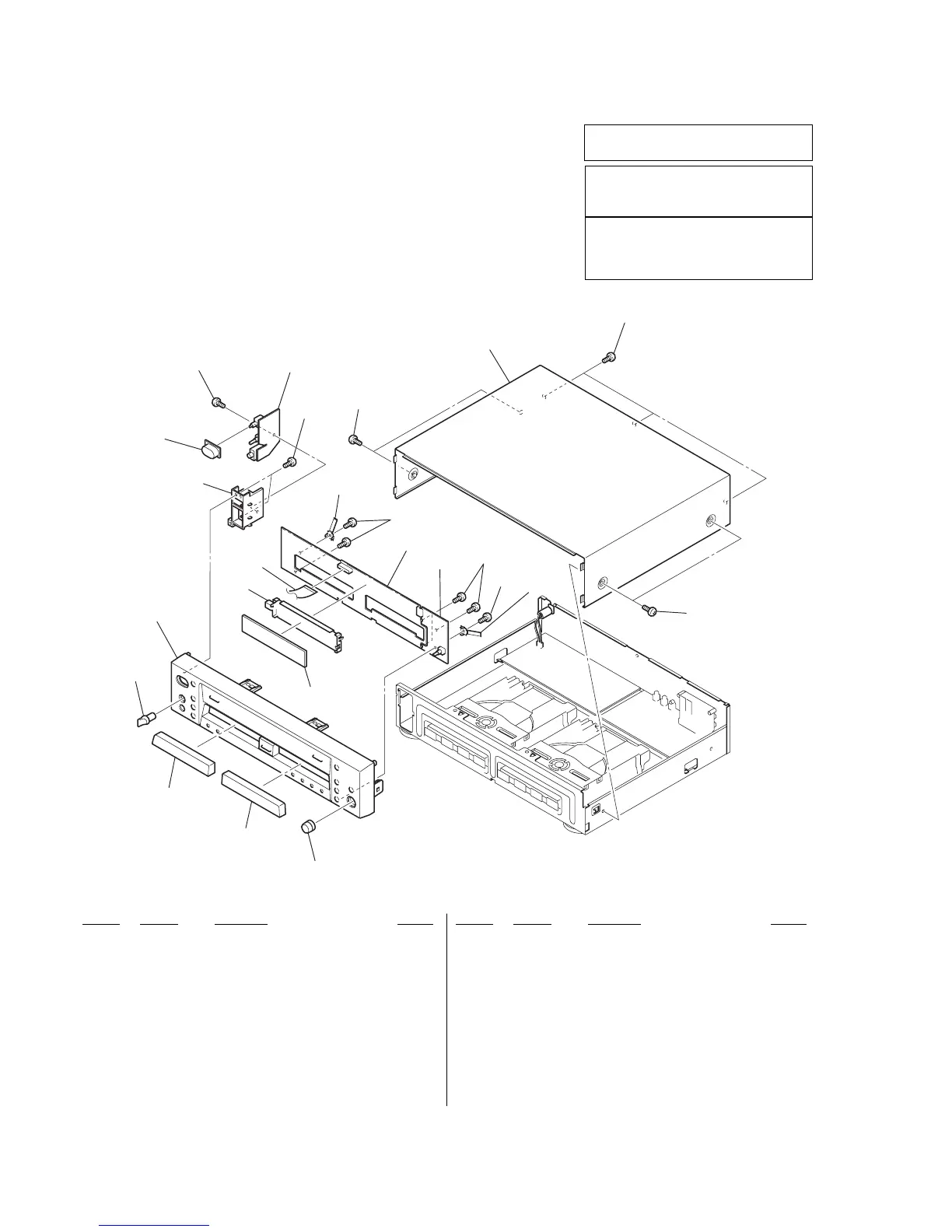

6-1. FRONT PANEL SECTION
NOTE:
•-XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant le
numéro spécifié.
When indicating parts by reference number,
please include the board name.
1
2
3
4
5
6
7
7
11

7
7
10
8
not supplied
not supplied
not supplied
not
supplied
not
supplied
FLD801
not
supplied
7
9
10
10
Ver 1.1 2002.10
1 4-235-379-01 KNOB, REC VOL (BLACK)
1 4-243-930-01 KNOB, REC VOL (SILVER) (AEP,UK)
2 4-243-592-01 DOOR, TRAY (REC) (BLACK)
2 4-243-828-01 DOOR, TRAY (REC) (SILVER) (AEP,UK)
3 4-243-591-01 DOOR, TRAY (PLAY) (BLACK)
3 4-243-827-01 DOOR, TRAY (PLAY) (SILVER) (AEP,UK)
4 4-235-378-01 KNOB, P/VOLUME (BLACK)
4 4-243-929-01 KNOB, P/VOLUME (SILVER) (AEP,UK)
5 4-243-584-01 PANEL ASSY, FRONT (BLACK)
5 4-243-932-01 PANEL ASSY, FRONT (SILVER) (AEP,UK)
6 4-235-380-01 KNOB, POWE (BLACK)
6 4-243-931-01 KNOB, POEWR (SILVER) (AEP,UK)
7 4-235-377-01 SCREW, SPECIAL
8 A-4731-039-A FL BOARD, COMPLETE
9 4-235-363-01 CASE, TOP (BLACK)
9 4-243-826-01 CASE, TOP (SILVER) (AEP,UK)
10 4-243-598-01 SCREW (CASE) (BLACK)
10 4-243-829-01 SCREW (CASE) (SILVER) (AEP,UK)
11 1-824-266-11 WIRE (FLAT TYPE) (20 CORE)
FLD801 1-518-830-11 INDICATOR TUBE, FLUORESCENT

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
