Sony RCD-W3 Service Manual

53
RCD-W3

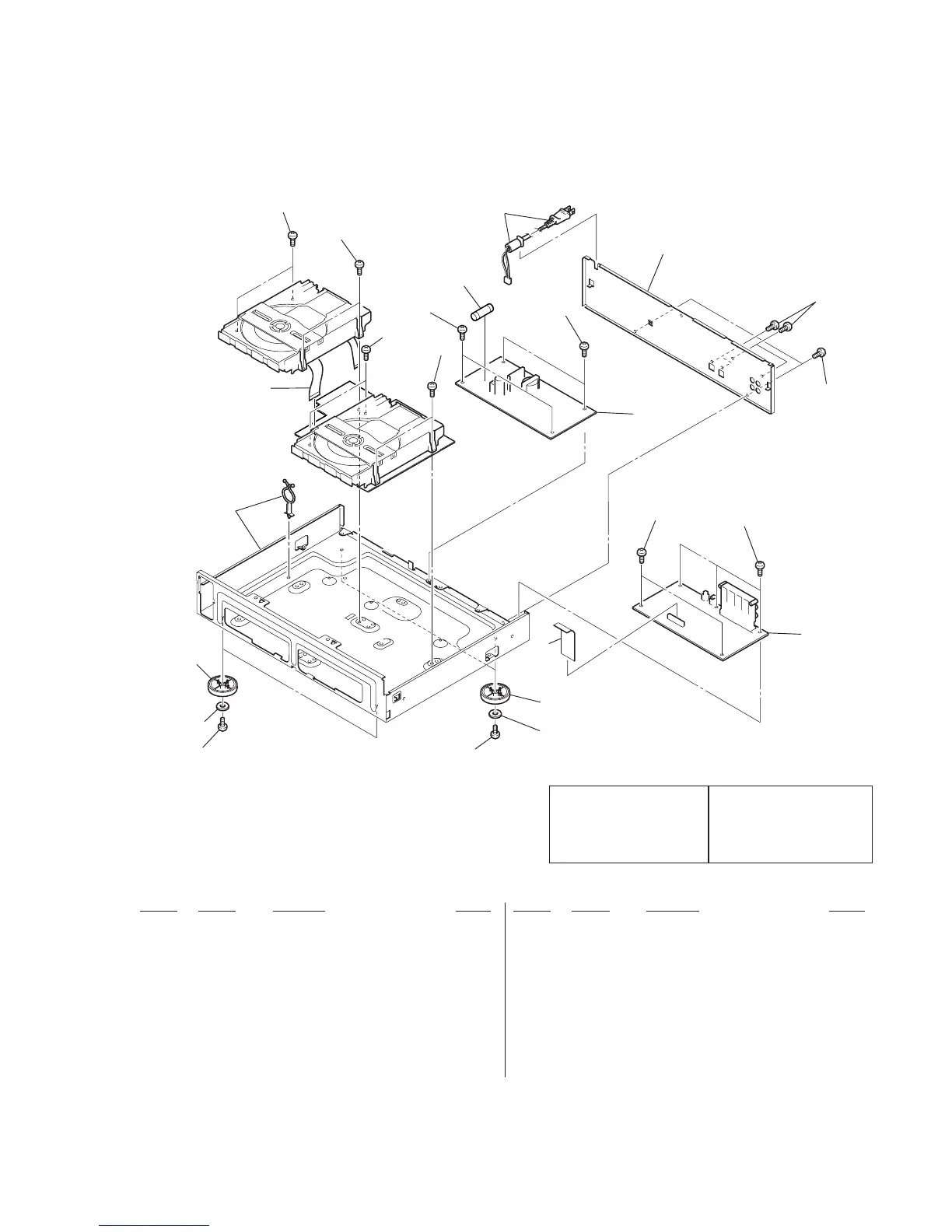

6-2. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
not
supplied
not
supplied
51
52
61
51
52
53
54
55
51
56
59
56
56
56
56
56
56
56
60
57
58
F101
51 4-235-403-01 SCREW, SPECIAL (3X8 BK)
52 4-235-400-01 RUBBER, FOOT
53 4-235-402-01 HOLDER, FOOT (US,CND)
53 4-241-266-01 HOLDER , FOOT (SILVER) (AEP,UK)
0 54 1-823-044-11 CORD, POWER (US,CND)
0 54 1-824-779-11 CORD, POWER (UK)
0 54 1-824-780-11 CORD, POWER (AEP)
55 4-235-362-01 SCREW SPECIAL (3X10)
56 4-243-599-01 SCREW, SPECIAL
57 1-824-264-11 WIRE (FLAT TYPE) (30 CORE)
58 1-824-782-11 WIRE (FLAT TYPE) (22 CORE)
59 A-4731-043-A POWER BOARD, COMPLETE (US,CND)
59 A-4731-046-A POWER BOARD, COMPLETE (AEP,UK)
60 A-4731-042-A AUDIO BOARD, COMPLETE
61 4-235-402-01 HOLDER, FOOT
0 F101 1-532-503-51 FUSE (1.6A 250V) (US,CND)
0 F101 1-533-467-21 FUSE, GLASS TUBE (DIA. 5) (T1.6AL 250V)
(AEP,UK)

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
