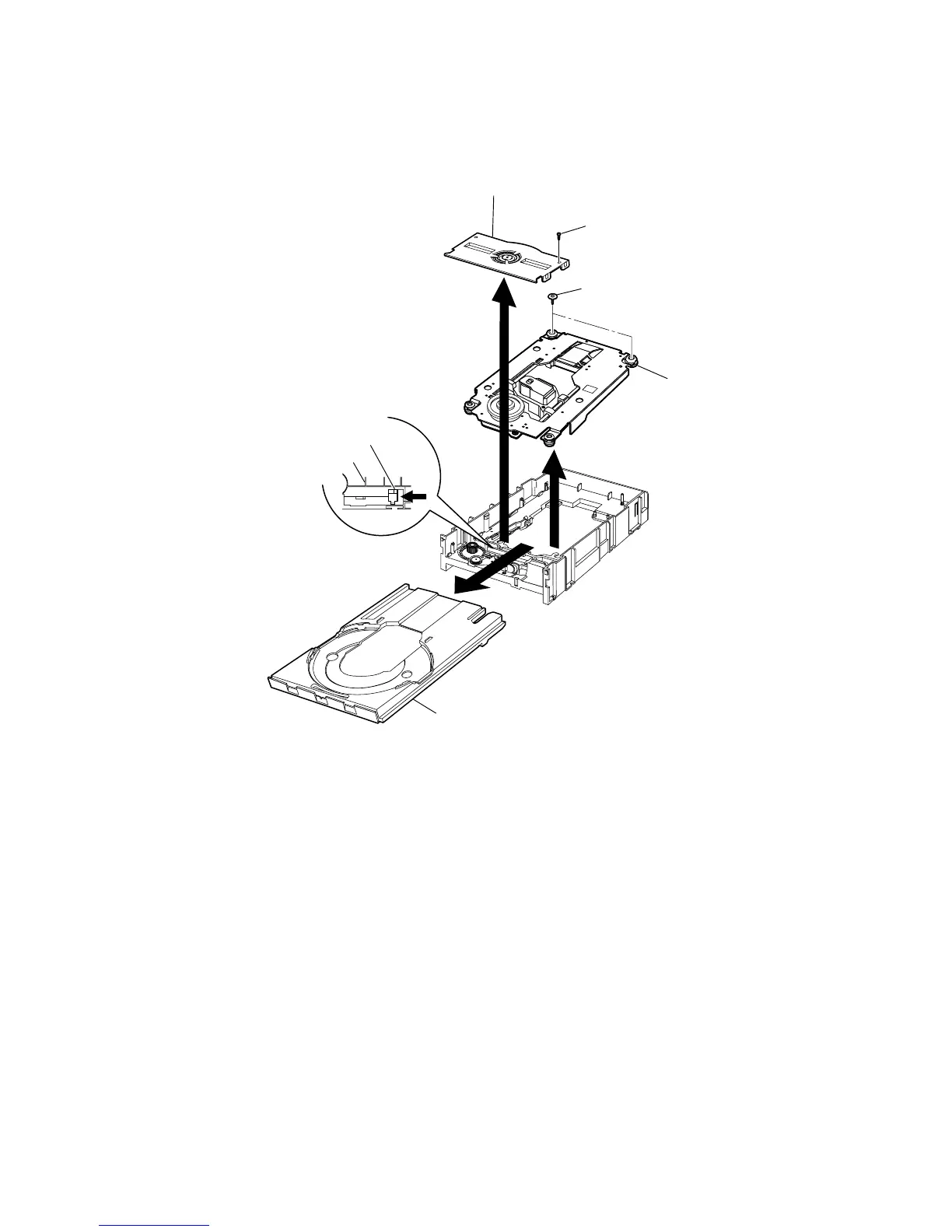

3-12. CD-R MECHANISM ASSY (DECK B)
1 Screw (2X6)
3 Clamp holder assy
7
2
8
A
5
Two screws (2.0X10)
9 CD-R mechanism assy
4 Push out the disc tray by pushing the
Up/Down suide un the drrow
A direction.
6 Disc tray
Up/Down guide
Main base
Bottom view
