Sony RCD-W3 Service Manual

12
RCD-W3

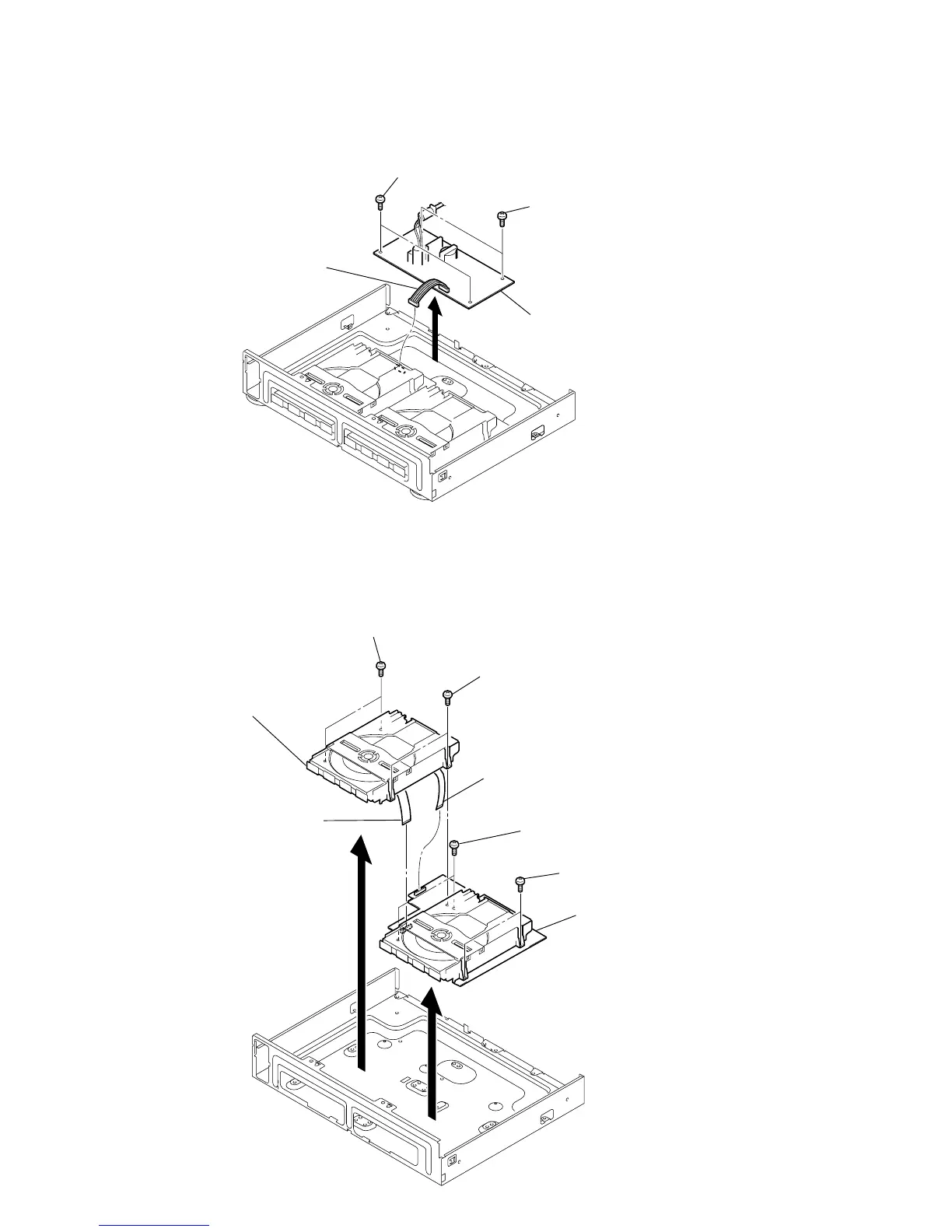

3-7. CDP DECK ASSY (DECK A), CD-R DECK ASSY (DECK B)
3-6. POWER BOARD
3
4
Two screws (special)
5 POWER board
2 Two screws (special)
1 Connector (PN503)
7 Two screws (special)
2 Two screws (special)
6 CDP deck assy (deck A)
1 Wire (flat type)
(PN403)
5 Wire (flat type)
(PN406)
3 Two screws (special)
8 Two screws (special)
0
4
9
CD-R deck assy (deck B)

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
