Sony RCD-W3 Service Manual

54
RCD-W3

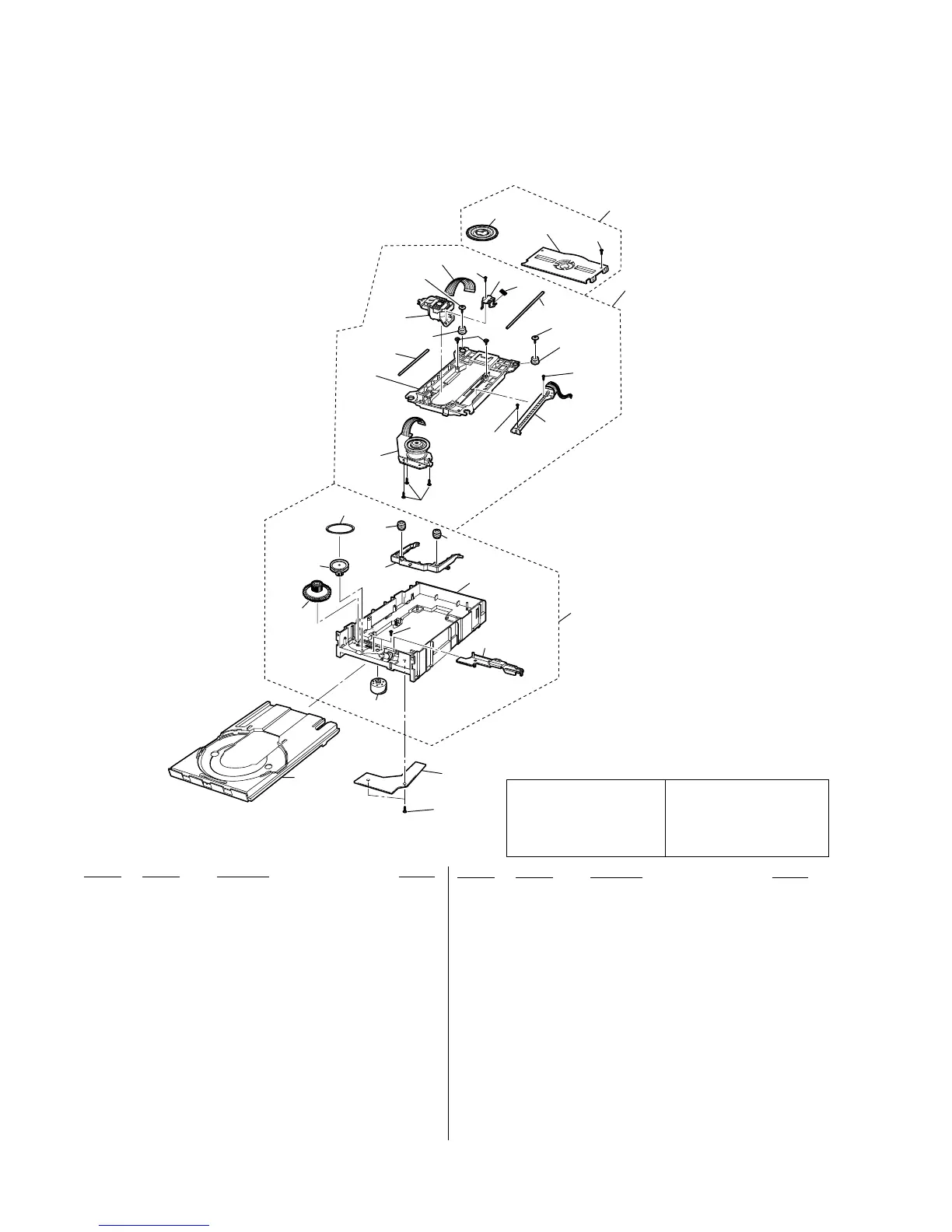

6-3. CD PLAY SECTION (DECK A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
503
506
501
502
507
509
525
508
511
512
522
529
529
514
513
515
519
519
524
516
522
522
522
520
521
517
518
522
517
510
505
504
523
527
528
526
not
supplied
501 4-241-167-01 CLAMP ASSY, DISC
502 4-235-404-01 HOLDER, CLAMP
503 4-235-381-01 BELT
504 4-235-382-01 GEAR, PULLEY
505 4-235-407-01 GEAR, LOADING
506 4-235-384-01 BASE, UP/DOWN
507 4-235-386-01 BASE, MAIN
508 4-241-165-01 MOTOR ASSY, LOADING
509 4-235-387-01 GUIDE, UP/DOWN
510 4-235-388-01 TRAY, DISC
0 511 1-476-791-11 OPTICAL PICK-UP BLOCK
512 1-824-781-11 WIRE (FLAT TYPE) (17 CORE)
513 4-235-412-01 GUIDE, FEED
514 4-235-413-01 SPRING, FEED
515 4-235-414-01 SHAFT, R
516 4-235-415-01 SHAFT, L
517 4-235-389-01 RUBBER, FRONT
518 4-243-632-01 MOTOR ASSY , SPINDLE
519 4-243-630-01 RUBBER, REAR
520 4-235-418-01 BASE, PU
521 4-243-631-01 MOTOR ASSY, FEED
522 4-235-419-01 SCREW, 2X6
523 4-235-420-01 SCREW, 1.7X6
524 4-235-421-01 SCREW, 1.7X5
525 4-235-391-01 SCREW, 1.7X4.5
526 4-243-633-01 MECHANISM ASSY, PU
527 4-241-166-01 HOLDER ASSY, CLAMP
528 4-241-164-01 MECHANISM ASSY, LOADING
529 4-241-168-01 SCREW, 2.0X10

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
