Access lamp
If the access lamp is lit or is flashing, data is being read from
or written to the “Memory Stick.” At this time, do not shake the
product or subject it to shock. Do not turn off the power of the
product or remove the “Memory Stick.” This may damage the
data.

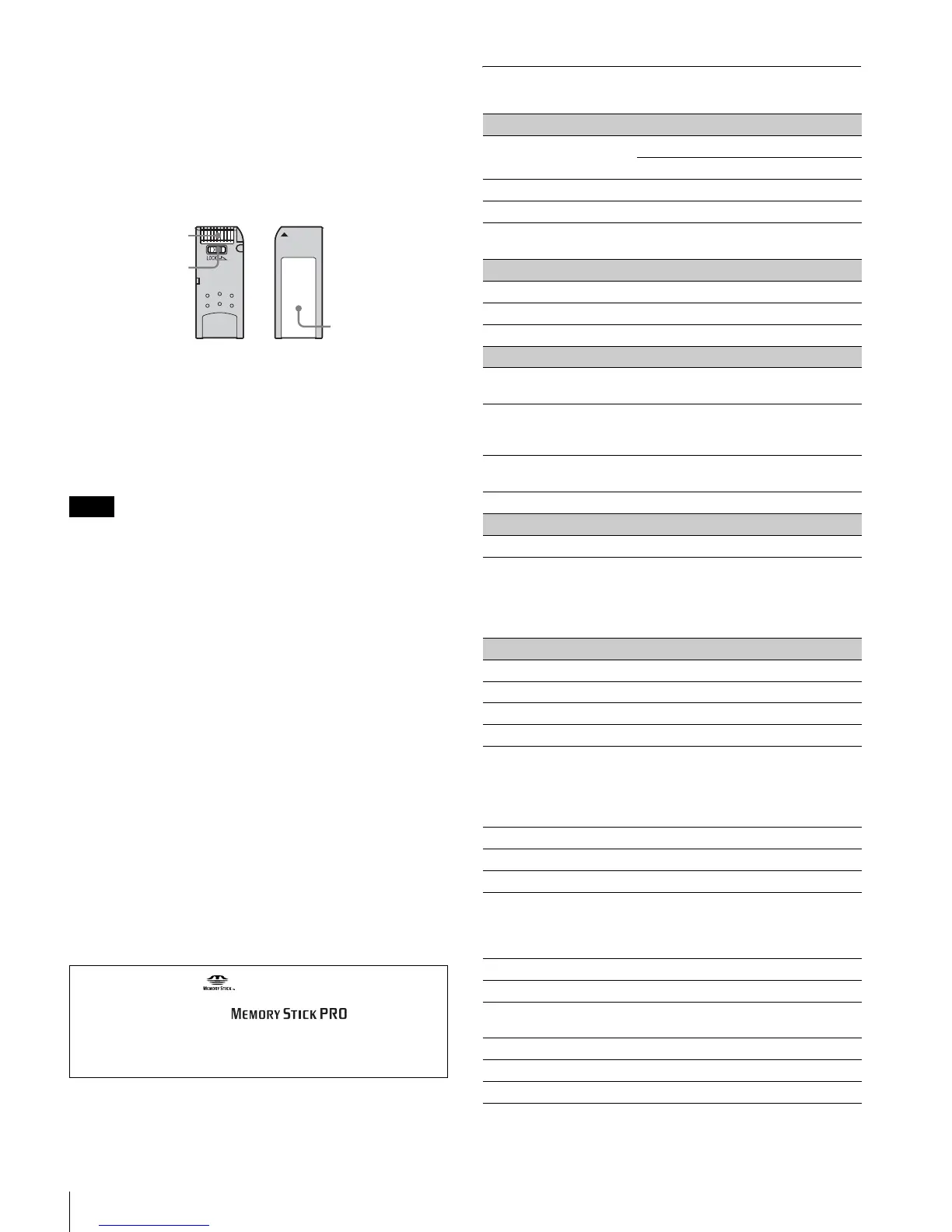

About a “Memory Stick”
• When you set the “Memory Stick” write-protect tab to
“LOCK,” data cannot be recorded, edited, or erased.
• Data may be damaged if:
— You remove the “Memory Stick” or turn off the unit while
it is reading or writing data.
— You use the “Memory Stick” in a location subject to the
effects of static electricity or electric noise.
• Do not attach anything other than the supplied label to the
“Memory Stick” labeling position.
• Attach the label so that it does not stick out beyond the
labeling position.
• Carry and store the “Memory Stick” in its case.
• Do not touch the terminal of the “Memory Stick” with
anything, including your finger or metallic objects.
• Do not strike, bend, or drop the “Memory Stick.”
• Do not disassemble or modify the “Memory Stick.”
• Do not allow the “Memory Stick” to get wet.
• Do not use or store the “Memory Stick” in a location that is:
— Extremely hot, such as in a car parked in the sun
— Under direct sunlight
— Very humid or subject to corrosive substances
Precautions
• To prevent data loss, make backups of data frequently. In no
event will Sony be liable for any loss of data.
• Unauthorized recording may be contrary to the provisions of
copyright law. When you use a “Memory Stick” that has been
pre-recorded, be sure that the material has been recorded
in accordance with copyright and other applicable laws.
• The “Memory Stick” application software may be modified or
changed by Sony without prior notice.
Specifications
Notes
• “Memory Stick” and are trademarks of Sony Corporation.
• “Memory Stick Duo” is a trademark of Sony Corporation.
• “Memory Stick PRO” and are trademarks
of Sony Corporation.
• “Memory Stick PRO Duo” is a trademark of Sony Corporation.
• “MagicGate” is a trademark of Sony Corporation.
Terminal
Write-protect tab
Labelling position
General
Power requirements 180 V DC, 1.0 A (max.)
12 V DC, 7 A (max.)
Operating temperature −10°C to +45°C (14°F to +113°F)
Storage temperature −20°C to +60°C (−4°F to +140°F)
Mass Approx. 4.4 kg (9 lb 11 oz) (camera
head only)
Imager
Imager 2/3-type Progressive Scan CCD
Method 3-CCD, RGB
Effective resolution 1920 (horizontal) × 1080 (vertical)
Electrical characteristics
Sensitivity f10.0 with 59.94 Hz/f11.0 with 50.00 Hz
(at 2000 lx with 89.9% reflectivity)
Image S/N HD output: Typical 55 dB
SD output: Typical 65 dB (59.94 Hz)
Typical 63 dB (50.00 Hz)
Horizontal resolution HD: 1000 TV lines (at center of screen)
5% or higher modulation
Geometric distortion Negligible (not including lens distortion)
Optical system specifications
Spectral system F1.4 prism
Built-in filters ND filters
1: Clear
2: 1/4 ND
3: 1/16 ND
4: 1/64 ND
Input/output connectors
CCU Triax connector (1)
LENS 12-pin (1)
VF 20-pin (1)
MIC 1 IN XLR 3-pin, female (1)
AUDIO IN CH1, CH2 XLR 3-pin, female (1 each)
For MIC: −60 dBu (variable up to −20
dBu by menu or HXCU-100 operation),
balanced
For LINE: 0 dBu, balanced
INTERCOM XLR 5-pin, female (1)
EARPHONE Stereo minijack (1)
DC IN XLR 4-pin (1), 10.5 to 17 V DC
DC OUT 4-pin (1), 10.5 to 17 V DC, 0.5 A
maximum
It may be limited depending on the load
and input conditions.
SDI BNC type (1)
TEST OUT BNC type (1)
PROMPTER/GENLOCK/
RET IN
BNC type (1), 1 Vp-p, 75 ohms
RET CTRL 6-pin (1)
REMOTE 8-pin (1)
TRACKER 10-pin (1)
