Overview

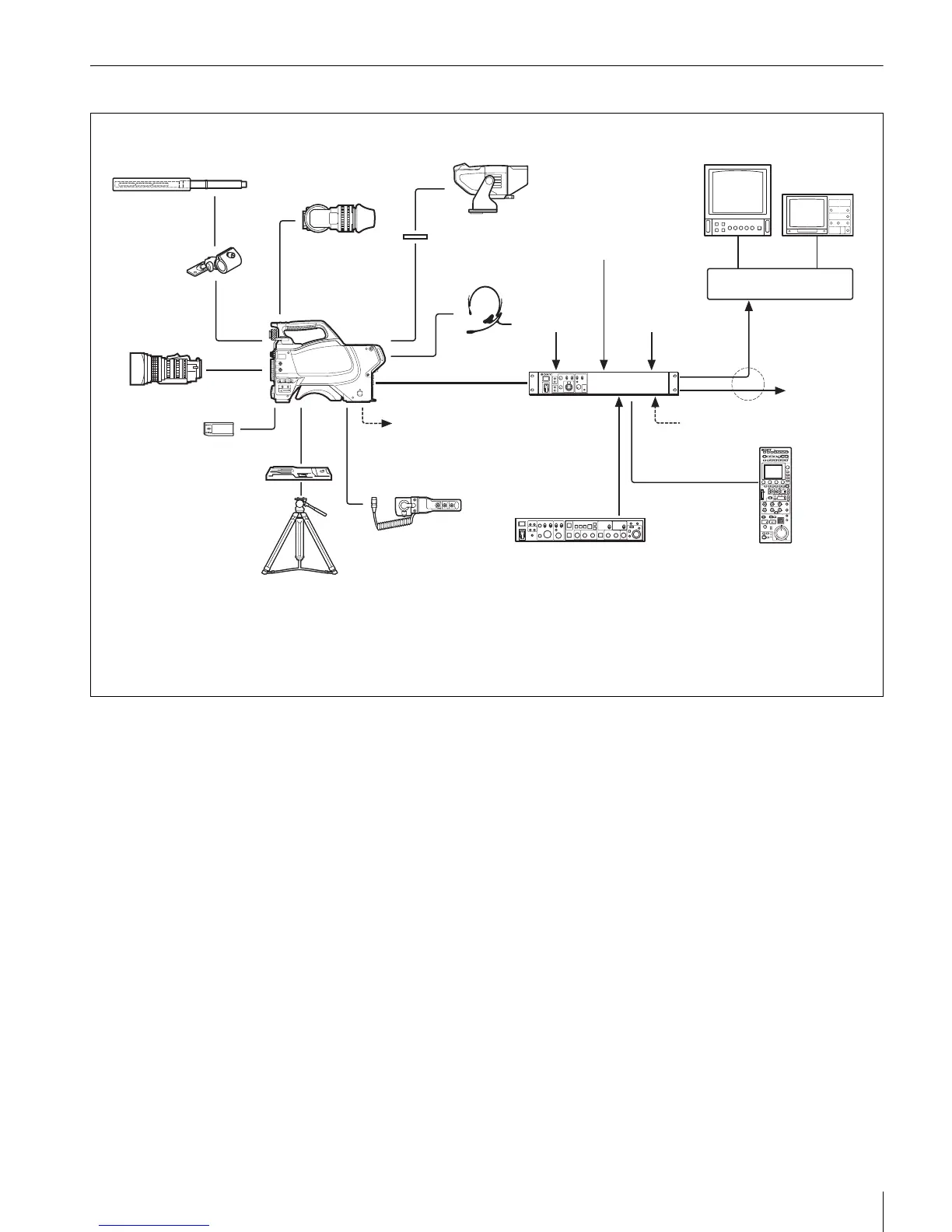

System Configuration Example
Zoom Lens
(for ENG/EFP)
“Memory Stick”
VCT-U14
Tripod Adaptor
Tripod for
portable
camera
RCP-1000-series
Remote Control Panel
CCA-5 cable
HDVF-200/C35W
Viewfinder
CAC-12
Microphone
Holder
Microphone
HXC-100/HSC-300
b)
HD Color Camera
HDVF-550/C550W/C730W
Viewfinder
CAC-6
Return Video Selector
HKCU-FP1
Front Control Panel
HXCU-100
Camera
Control Unit
BNC BNC
Monitor
Waveform
Monitor
Video router
VF attachment shoe
a)
Power supply
for a script light
DC 12 V
(Max. 0.5 A)
Video output
HD-SDI/SD-SDI/VBS
AC power
Intercom headset
Sync input
Return video input
Prompter video input
to router/switcher
(attached to the front)
a) Supplied with the HDVF-550/C550W/C730W, Part No.: A-7612-405-E
b)
An HSC-300 and HXCU-100 can be connected if both units are of
version 1.10 or later.
c) 600 m maximum and 50 m minimum when using Fujikura 8.5-mm dia.
cables
For information of other cables, see “Triax transmission distances” on
page 29.
Tr i a x c a bl e
c)
