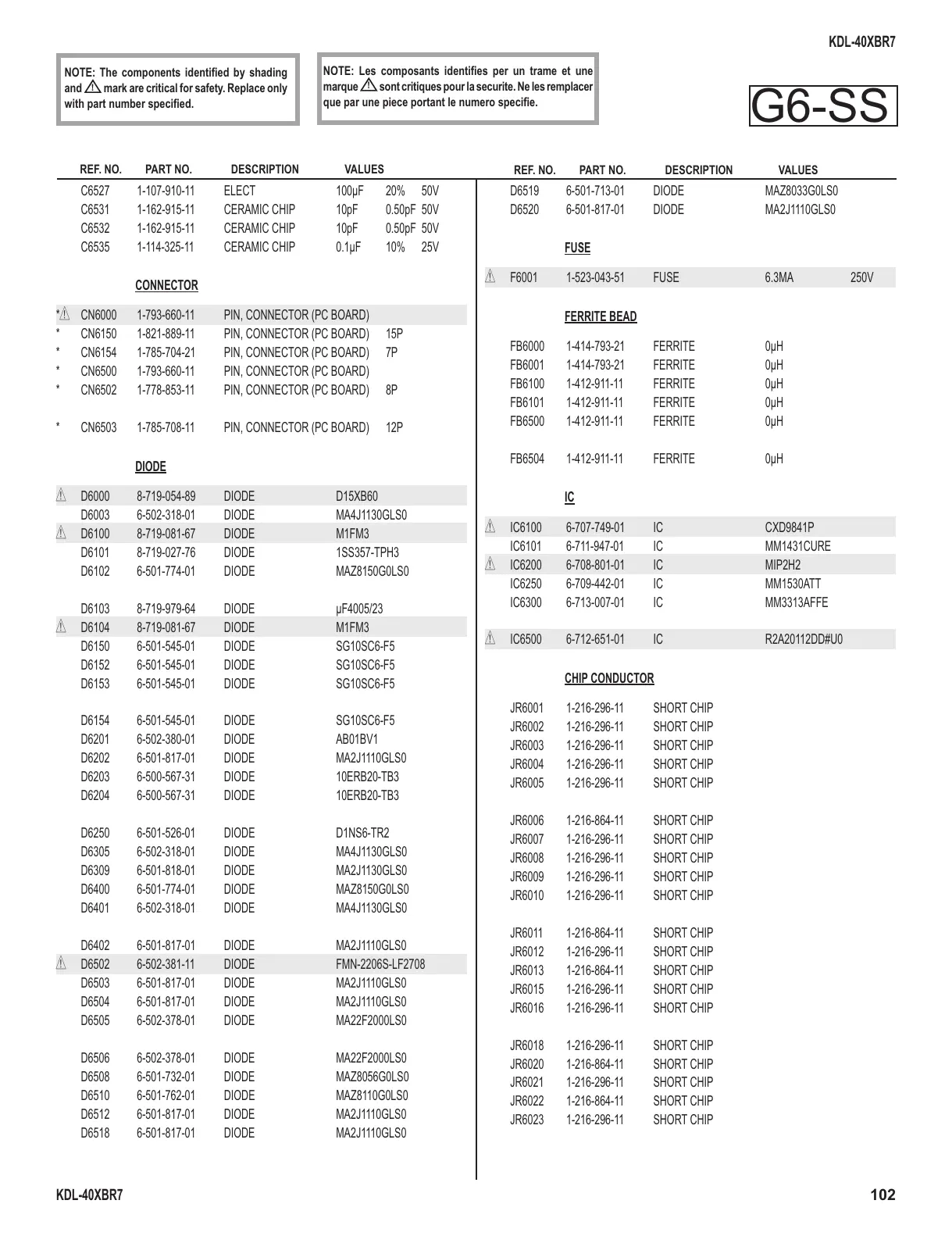

KDL-40XBR7
KDL-40XBR7
102
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
C6527 1-107-910-11 ELECT 100μF 20% 50V
C6531 1-162-915-11 CERAMIC CHIP 10pF 0.50pF 50V
C6532 1-162-915-11 CERAMIC CHIP 10pF 0.50pF 50V
C6535 1-114-325-11 CERAMIC CHIP 0.1μF 10% 25V
CONNECTOR
*! CN6000 1-793-660-11 PIN, CONNECTOR (PC BOARD)
* CN6150 1-821-889-11 PIN, CONNECTOR (PC BOARD) 15P
* CN6154 1-785-704-21 PIN, CONNECTOR (PC BOARD) 7P
* CN6500 1-793-660-11 PIN, CONNECTOR (PC BOARD)
* CN6502 1-778-853-11 PIN, CONNECTOR (PC BOARD) 8P
* CN6503 1-785-708-11 PIN, CONNECTOR (PC BOARD) 12P
DIODE
! D6000 8-719-054-89 DIODE D15XB60
D6003 6-502-318-01 DIODE MA4J1130GLS0
! D6100 8-719-081-67 DIODE M1FM3
D6101 8-719-027-76 DIODE 1SS357-TPH3
D6102 6-501-774-01 DIODE MAZ8150G0LS0
D6103 8-719-979-64 DIODE μF4005/23
! D6104 8-719-081-67 DIODE M1FM3
D6150 6-501-545-01 DIODE SG10SC6-F5
D6152 6-501-545-01 DIODE SG10SC6-F5
D6153 6-501-545-01 DIODE SG10SC6-F5
D6154 6-501-545-01 DIODE SG10SC6-F5
D6201 6-502-380-01 DIODE AB01BV1
D6202 6-501-817-01 DIODE MA2J1110GLS0
D6203 6-500-567-31 DIODE 10ERB20-TB3
D6204 6-500-567-31 DIODE 10ERB20-TB3
D6250 6-501-526-01 DIODE D1NS6-TR2
D6305 6-502-318-01 DIODE MA4J1130GLS0
D6309 6-501-818-01 DIODE MA2J1130GLS0
D6400 6-501-774-01 DIODE MAZ8150G0LS0
D6401 6-502-318-01 DIODE MA4J1130GLS0
D6402 6-501-817-01 DIODE MA2J1110GLS0
! D6502 6-502-381-11 DIODE FMN-2206S-LF2708
D6503 6-501-817-01 DIODE MA2J1110GLS0
D6504 6-501-817-01 DIODE MA2J1110GLS0
D6505 6-502-378-01 DIODE MA22F2000LS0
D6506 6-502-378-01 DIODE MA22F2000LS0
D6508 6-501-732-01 DIODE MAZ8056G0LS0
D6510 6-501-762-01 DIODE MAZ8110G0LS0
D6512 6-501-817-01 DIODE MA2J1110GLS0
D6518 6-501-817-01 DIODE MA2J1110GLS0
D6519 6-501-713-01 DIODE MAZ8033G0LS0
D6520 6-501-817-01 DIODE MA2J1110GLS0
FUSE
! F6001 1-523-043-51 FUSE 6.3MA 250V
FERRITE BEAD
FB6000 1-414-793-21 FERRITE 0μH
FB6001 1-414-793-21 FERRITE 0μH
FB6100 1-412-911-11 FERRITE 0μH
FB6101 1-412-911-11 FERRITE 0μH
FB6500 1-412-911-11 FERRITE 0μH
FB6504 1-412-911-11 FERRITE 0μH
IC
! IC6100 6-707-749-01 IC CXD9841P
IC6101 6-711-947-01 IC MM1431CURE
! IC6200 6-708-801-01 IC MIP2H2
IC6250 6-709-442-01 IC MM1530ATT
IC6300 6-713-007-01 IC MM3313AFFE
! IC6500 6-712-651-01 IC R2A20112DD#U0
CHIP CONDUCTOR
JR6001 1-216-296-11 SHORT CHIP
JR6002 1-216-296-11 SHORT CHIP
JR6003 1-216-296-11 SHORT CHIP
JR6004 1-216-296-11 SHORT CHIP
JR6005 1-216-296-11 SHORT CHIP
JR6006 1-216-864-11 SHORT CHIP
JR6007 1-216-296-11 SHORT CHIP
JR6008 1-216-296-11 SHORT CHIP
JR6009 1-216-296-11 SHORT CHIP
JR6010 1-216-296-11 SHORT CHIP
JR6011 1-216-864-11 SHORT CHIP
JR6012 1-216-296-11 SHORT CHIP
JR6013 1-216-864-11 SHORT CHIP
JR6015 1-216-296-11 SHORT CHIP
JR6016 1-216-296-11 SHORT CHIP
JR6018 1-216-296-11 SHORT CHIP
JR6020 1-216-864-11 SHORT CHIP
JR6021 1-216-296-11 SHORT CHIP
JR6022 1-216-864-11 SHORT CHIP
JR6023 1-216-296-11 SHORT CHIP
G6-SS
