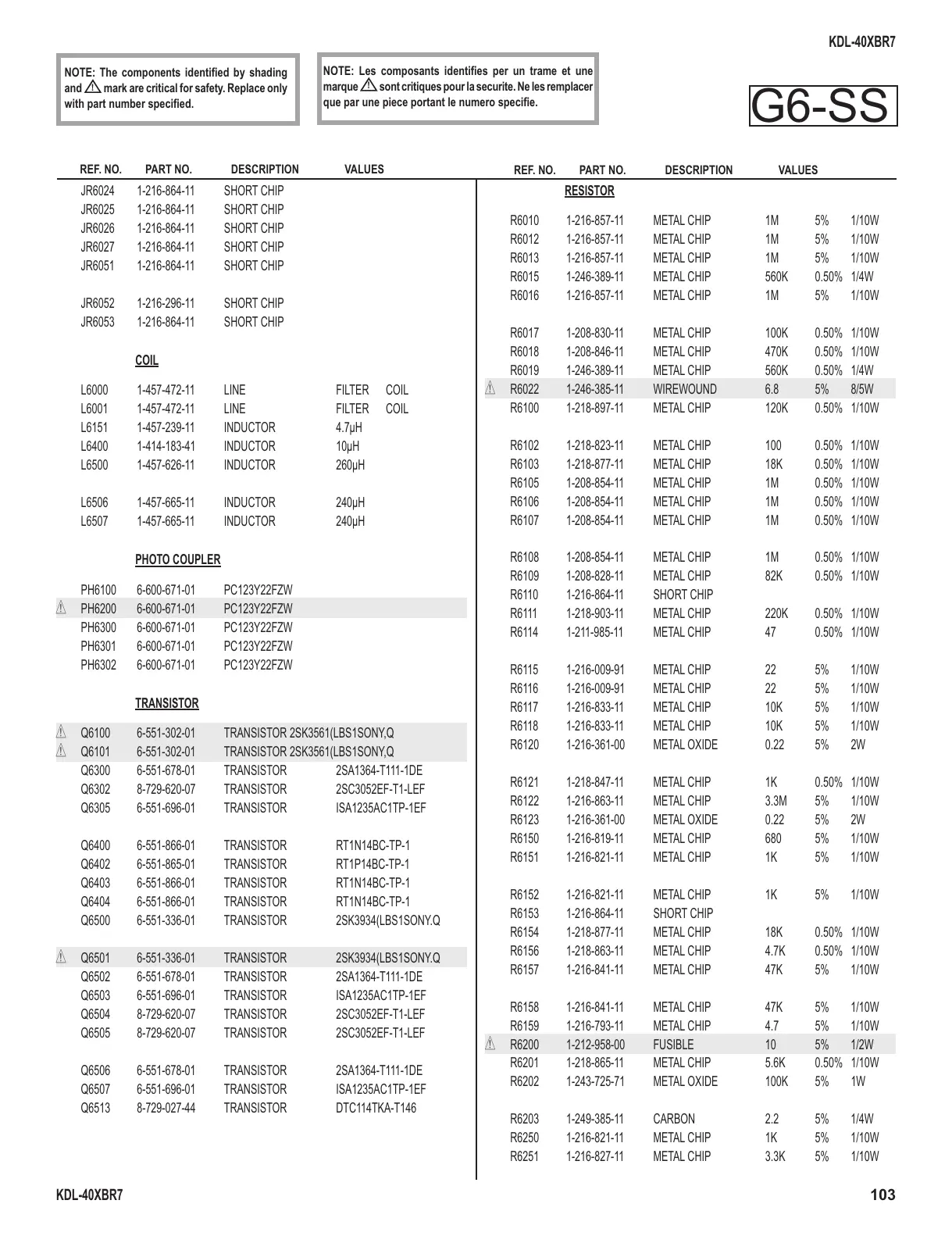

REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
JR6024 1-216-864-11 SHORT CHIP
JR6025 1-216-864-11 SHORT CHIP
JR6026 1-216-864-11 SHORT CHIP
JR6027 1-216-864-11 SHORT CHIP
JR6051 1-216-864-11 SHORT CHIP
JR6052 1-216-296-11 SHORT CHIP
JR6053 1-216-864-11 SHORT CHIP
COIL
L6000 1-457-472-11 LINE FILTER COIL
L6001 1-457-472-11 LINE FILTER COIL
L6151 1-457-239-11 INDUCTOR 4.7μH
L6400 1-414-183-41 INDUCTOR 10μH
L6500 1-457-626-11 INDUCTOR 260μH
L6506 1-457-665-11 INDUCTOR 240μH
L6507 1-457-665-11 INDUCTOR 240μH
PHOTO COUPLER
PH6100 6-600-671-01 PC123Y22FZW
! PH6200 6-600-671-01 PC123Y22FZW
PH6300 6-600-671-01 PC123Y22FZW
PH6301 6-600-671-01 PC123Y22FZW
PH6302 6-600-671-01 PC123Y22FZW
TRANSISTOR
! Q6100 6-551-302-01 TRANSISTOR 2SK3561(LBS1SONY,Q
! Q6101 6-551-302-01 TRANSISTOR 2SK3561(LBS1SONY,Q
Q6300 6-551-678-01 TRANSISTOR 2SA1364-T111-1DE
Q6302 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6305 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6400 6-551-866-01 TRANSISTOR RT1N14BC-TP-1
Q6402 6-551-865-01 TRANSISTOR RT1P14BC-TP-1
Q6403 6-551-866-01 TRANSISTOR RT1N14BC-TP-1
Q6404 6-551-866-01 TRANSISTOR RT1N14BC-TP-1
Q6500 6-551-336-01 TRANSISTOR 2SK3934(LBS1SONY.Q
! Q6501 6-551-336-01 TRANSISTOR 2SK3934(LBS1SONY.Q
Q6502 6-551-678-01 TRANSISTOR 2SA1364-T111-1DE
Q6503 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6504 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6505 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6506 6-551-678-01 TRANSISTOR 2SA1364-T111-1DE
Q6507 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6513 8-729-027-44 TRANSISTOR DTC114TKA-T146
RESISTOR
R6010 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6012 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6013 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6015 1-246-389-11 METAL CHIP 560K 0.50% 1/4W
R6016 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6017 1-208-830-11 METAL CHIP 100K 0.50% 1/10W
R6018 1-208-846-11 METAL CHIP 470K 0.50% 1/10W
R6019 1-246-389-11 METAL CHIP 560K 0.50% 1/4W
! R6022 1-246-385-11 WIREWOUND 6.8 5% 8/5W
R6100 1-218-897-11 METAL CHIP 120K 0.50% 1/10W
R6102 1-218-823-11 METAL CHIP 100 0.50% 1/10W
R6103 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R6105 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6106 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6107 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6108 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6109 1-208-828-11 METAL CHIP 82K 0.50% 1/10W
R6110 1-216-864-11 SHORT CHIP
R6111 1-218-903-11 METAL CHIP 220K 0.50% 1/10W
R6114 1-211-985-11 METAL CHIP 47 0.50% 1/10W
R6115 1-216-009-91 METAL CHIP 22 5% 1/10W
R6116 1-216-009-91 METAL CHIP 22 5% 1/10W
R6117 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6118 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6120 1-216-361-00 METAL OXIDE 0.22 5% 2W
R6121 1-218-847-11 METAL CHIP 1K 0.50% 1/10W
R6122 1-216-863-11 METAL CHIP 3.3M 5% 1/10W
R6123 1-216-361-00 METAL OXIDE 0.22 5% 2W
R6150 1-216-819-11 METAL CHIP 680 5% 1/10W
R6151 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6152 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6153 1-216-864-11 SHORT CHIP
R6154 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R6156 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6157 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6158 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6159 1-216-793-11 METAL CHIP 4.7 5% 1/10W
! R6200 1-212-958-00 FUSIBLE 10 5% 1/2W
R6201 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R6202 1-243-725-71 METAL OXIDE 100K 5% 1W
R6203 1-249-385-11 CARBON 2.2 5% 1/4W
R6250 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6251 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
