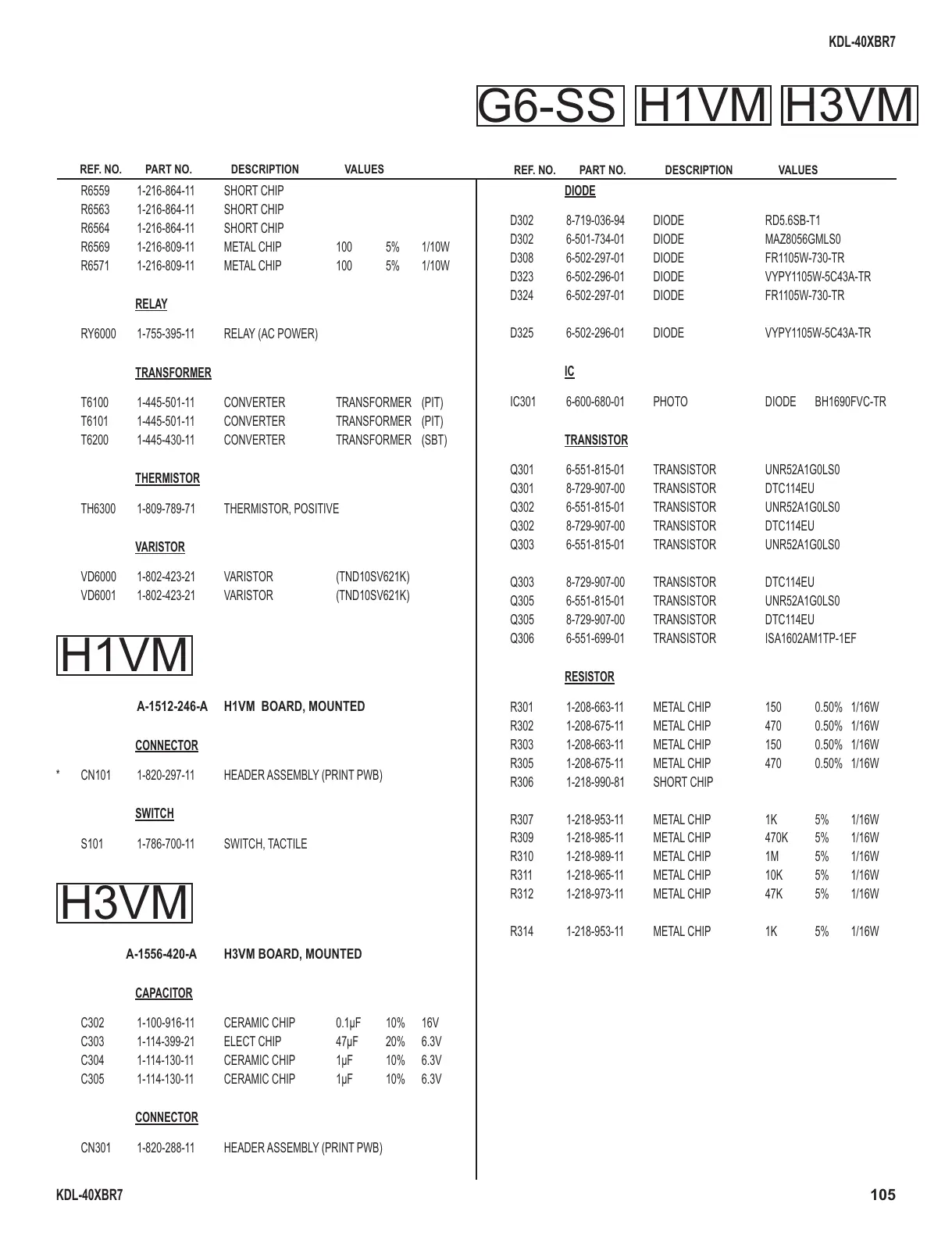

Sony RM-YD024 - Page 105

KDL-40XBR7
KDL-40XBR7
105
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
R6559 1-216-864-11 SHORT CHIP
R6563 1-216-864-11 SHORT CHIP
R6564 1-216-864-11 SHORT CHIP
R6569 1-216-809-11 METAL CHIP 100 5% 1/10W
R6571 1-216-809-11 METAL CHIP 100 5% 1/10W
RELAY
RY6000 1-755-395-11 RELAY (AC POWER)
TRANSFORMER
T6100 1-445-501-11 CONVERTER TRANSFORMER (PIT)
T6101 1-445-501-11 CONVERTER TRANSFORMER (PIT)
T6200 1-445-430-11 CONVERTER TRANSFORMER (SBT)
THERMISTOR
TH6300 1-809-789-71 THERMISTOR, POSITIVE
VARISTOR
VD6000 1-802-423-21 VARISTOR (TND10SV621K)
VD6001 1-802-423-21 VARISTOR (TND10SV621K)
H1VM
A-1512-246-A H1VM BOARD, MOUNTED
CONNECTOR
* CN101 1-820-297-11 HEADER ASSEMBLY (PRINT PWB)
SWITCH
S101 1-786-700-11 SWITCH, TACTILE
H3VM
A-1556-420-A H3VM BOARD, MOUNTED
CAPACITOR
C302 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C303 1-114-399-21 ELECT CHIP 47μF 20% 6.3V
C304 1-114-130-11 CERAMIC CHIP 1μF 10% 6.3V
C305 1-114-130-11 CERAMIC CHIP 1μF 10% 6.3V
CONNECTOR
CN301 1-820-288-11 HEADER ASSEMBLY (PRINT PWB)
DIODE
D302 8-719-036-94 DIODE RD5.6SB-T1
D302 6-501-734-01 DIODE MAZ8056GMLS0
D308 6-502-297-01 DIODE FR1105W-730-TR
D323 6-502-296-01 DIODE VYPY1105W-5C43A-TR
D324 6-502-297-01 DIODE FR1105W-730-TR
D325 6-502-296-01 DIODE VYPY1105W-5C43A-TR
IC
IC301 6-600-680-01 PHOTO DIODE BH1690FVC-TR
TRANSISTOR
Q301 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q301 8-729-907-00 TRANSISTOR DTC114EU
Q302 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q302 8-729-907-00 TRANSISTOR DTC114EU
Q303 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q303 8-729-907-00 TRANSISTOR DTC114EU
Q305 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q305 8-729-907-00 TRANSISTOR DTC114EU
Q306 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF
RESISTOR
R301 1-208-663-11 METAL CHIP 150 0.50% 1/16W
R302 1-208-675-11 METAL CHIP 470 0.50% 1/16W
R303 1-208-663-11 METAL CHIP 150 0.50% 1/16W
R305 1-208-675-11 METAL CHIP 470 0.50% 1/16W
R306 1-218-990-81 SHORT CHIP
R307 1-218-953-11 METAL CHIP 1K 5% 1/16W
R309 1-218-985-11 METAL CHIP 470K 5% 1/16W
R310 1-218-989-11 METAL CHIP 1M 5% 1/16W
R311 1-218-965-11 METAL CHIP 10K 5% 1/16W
R312 1-218-973-11 METAL CHIP 47K 5% 1/16W
R314 1-218-953-11 METAL CHIP 1K 5% 1/16W
G6-SS
H1VM H3VM
