KDL-40XBR7
KDL-40XBR7
106
Sony Corporation
Sony Technology Center
Technical Services
Service Promotion Department
9-883-804-01
English
2008IJ74WEB-1
Printed in USA
© 2008.09

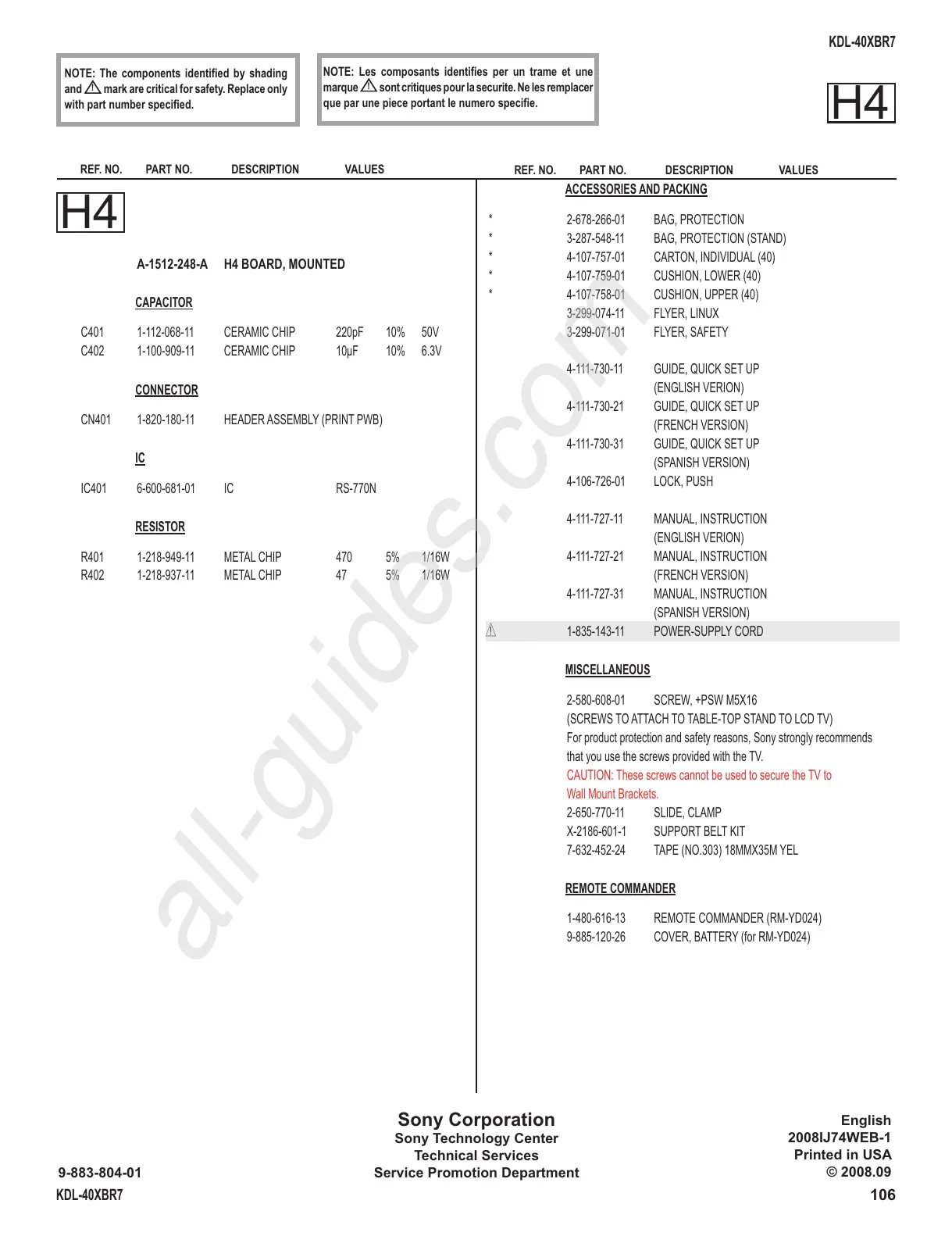

REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
H4
A-1512-248-A H4 BOARD, MOUNTED
CAPACITOR
C401 1-112-068-11 CERAMIC CHIP 220pF 10% 50V
C402 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V
CONNECTOR
CN401 1-820-180-11 HEADER ASSEMBLY (PRINT PWB)
IC
IC401 6-600-681-01 IC RS-770N
RESISTOR
R401 1-218-949-11 METAL CHIP 470 5% 1/16W
R402 1-218-937-11 METAL CHIP 47 5% 1/16W
ACCESSORIES AND PACKING
* 2-678-266-01 BAG, PROTECTION
* 3-287-548-11 BAG, PROTECTION (STAND)
* 4-107-757-01 CARTON, INDIVIDUAL (40)
* 4-107-759-01 CUSHION, LOWER (40)
* 4-107-758-01 CUSHION, UPPER (40)
3-299-074-11 FLYER, LINUX
3-299-071-01 FLYER, SAFETY
4-111-730-11 GUIDE, QUICK SET UP
(ENGLISH VERION)
4-111-730-21 GUIDE, QUICK SET UP
(FRENCH VERSION)
4-111-730-31 GUIDE, QUICK SET UP
(SPANISH VERSION)
4-106-726-01 LOCK, PUSH
4-111-727-11 MANUAL, INSTRUCTION
(ENGLISH VERION)
4-111-727-21 MANUAL, INSTRUCTION
(FRENCH VERSION)
4-111-727-31 MANUAL, INSTRUCTION
(SPANISH VERSION)
! 1-835-143-11 POWER-SUPPLY CORD
MISCELLANEOUS
2-580-608-01 SCREW, +PSW M5X16
(SCREWS TO ATTACH TO TABLE-TOP STAND TO LCD TV)
For product protection and safety reasons, Sony strongly recommends
that you use the screws provided with the TV.
CAUTION: These screws cannot be used to secure the TV to
Wall Mount Brackets.
2-650-770-11 SLIDE, CLAMP
X-2186-601-1 SUPPORT BELT KIT
7-632-452-24 TAPE (NO.303) 18MMX35M YEL
REMOTE COMMANDER
1-480-616-13 REMOTE COMMANDER (RM-YD024)
9-885-120-26 COVER, BATTERY (for RM-YD024)
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
H4
