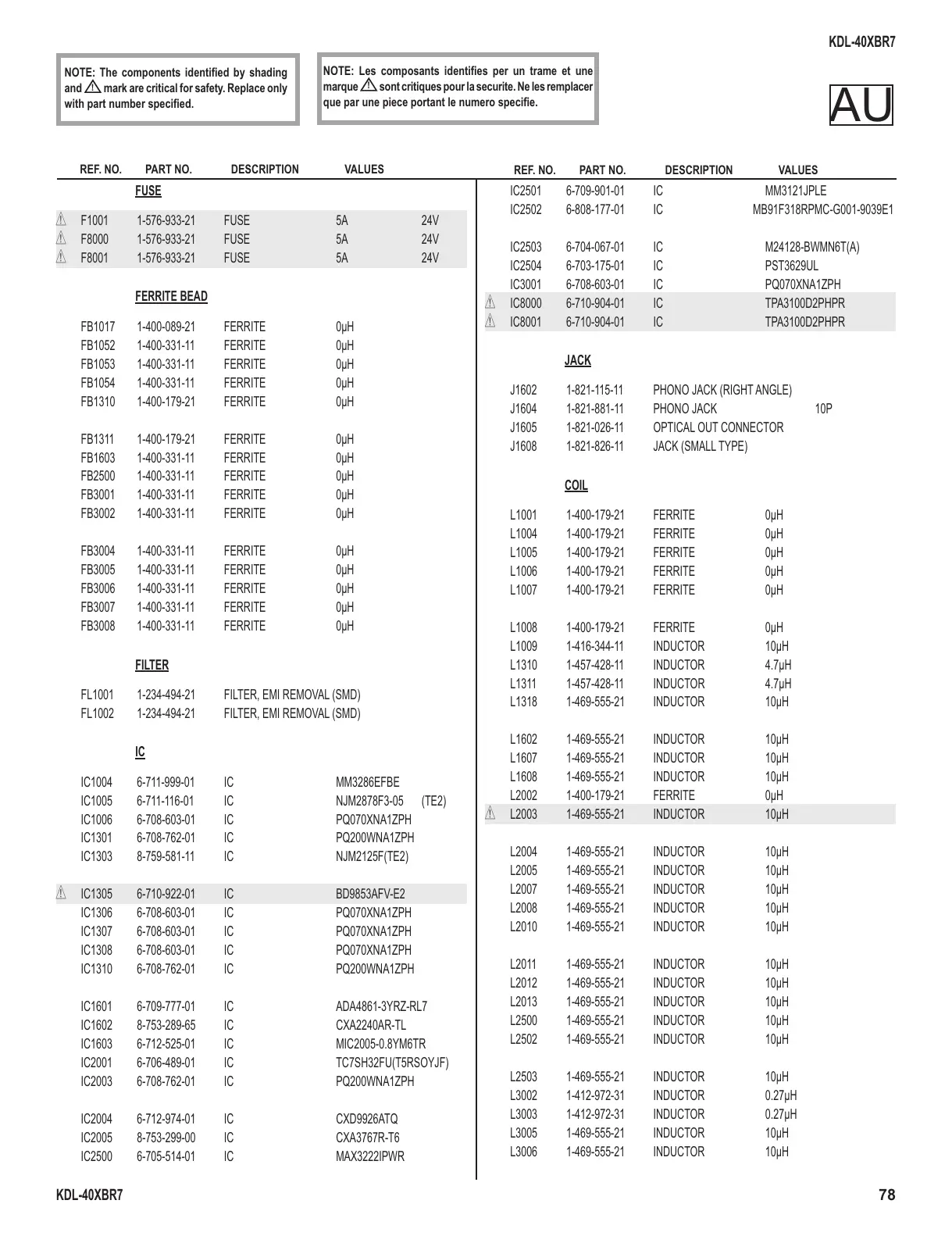

Sony RM-YD024 - Page 78

KDL-40XBR7
KDL-40XBR7
78
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
FUSE
! F1001 1-576-933-21 FUSE 5A 24V
! F8000 1-576-933-21 FUSE 5A 24V
! F8001 1-576-933-21 FUSE 5A 24V
FERRITE BEAD
FB1017 1-400-089-21 FERRITE 0μH
FB1052 1-400-331-11 FERRITE 0μH
FB1053 1-400-331-11 FERRITE 0μH
FB1054 1-400-331-11 FERRITE 0μH
FB1310 1-400-179-21 FERRITE 0μH
FB1311 1-400-179-21 FERRITE 0μH
FB1603 1-400-331-11 FERRITE 0μH
FB2500 1-400-331-11 FERRITE 0μH
FB3001 1-400-331-11 FERRITE 0μH
FB3002 1-400-331-11 FERRITE 0μH
FB3004 1-400-331-11 FERRITE 0μH
FB3005 1-400-331-11 FERRITE 0μH
FB3006 1-400-331-11 FERRITE 0μH
FB3007 1-400-331-11 FERRITE 0μH
FB3008 1-400-331-11 FERRITE 0μH
FILTER
FL1001 1-234-494-21 FILTER, EMI REMOVAL (SMD)
FL1002 1-234-494-21 FILTER, EMI REMOVAL (SMD)
IC
IC1004 6-711-999-01 IC MM3286EFBE
IC1005 6-711-116-01 IC NJM2878F3-05 (TE2)
IC1006 6-708-603-01 IC PQ070XNA1ZPH
IC1301 6-708-762-01 IC PQ200WNA1ZPH
IC1303 8-759-581-11 IC NJM2125F(TE2)
! IC1305 6-710-922-01 IC BD9853AFV-E2
IC1306 6-708-603-01 IC PQ070XNA1ZPH
IC1307 6-708-603-01 IC PQ070XNA1ZPH
IC1308 6-708-603-01 IC PQ070XNA1ZPH
IC1310 6-708-762-01 IC PQ200WNA1ZPH
IC1601 6-709-777-01 IC ADA4861-3YRZ-RL7
IC1602 8-753-289-65 IC CXA2240AR-TL
IC1603 6-712-525-01 IC MIC2005-0.8YM6TR
IC2001 6-706-489-01 IC TC7SH32FU(T5RSOYJF)
IC2003 6-708-762-01 IC PQ200WNA1ZPH
IC2004 6-712-974-01 IC CXD9926ATQ
IC2005 8-753-299-00 IC CXA3767R-T6
IC2500 6-705-514-01 IC MAX3222IPWR
IC2501 6-709-901-01 IC MM3121JPLE
IC2502 6-808-177-01 IC MB91F318RPMC-G001-9039E1
IC2503 6-704-067-01 IC M24128-BWMN6T(A)
IC2504 6-703-175-01 IC PST3629UL
IC3001 6-708-603-01 IC PQ070XNA1ZPH
! IC8000 6-710-904-01 IC TPA3100D2PHPR
! IC8001 6-710-904-01 IC TPA3100D2PHPR
JACK
J1602 1-821-115-11 PHONO JACK (RIGHT ANGLE)
J1604 1-821-881-11 PHONO JACK 10P
J1605 1-821-026-11 OPTICAL OUT CONNECTOR
J1608 1-821-826-11 JACK (SMALL TYPE)
COIL
L1001 1-400-179-21 FERRITE 0μH
L1004 1-400-179-21 FERRITE 0μH
L1005 1-400-179-21 FERRITE 0μH
L1006 1-400-179-21 FERRITE 0μH
L1007 1-400-179-21 FERRITE 0μH
L1008 1-400-179-21 FERRITE 0μH
L1009 1-416-344-11 INDUCTOR 10μH
L1310 1-457-428-11 INDUCTOR 4.7μH
L1311 1-457-428-11 INDUCTOR 4.7μH
L1318 1-469-555-21 INDUCTOR 10μH
L1602 1-469-555-21 INDUCTOR 10μH
L1607 1-469-555-21 INDUCTOR 10μH
L1608 1-469-555-21 INDUCTOR 10μH
L2002 1-400-179-21 FERRITE 0μH
! L2003 1-469-555-21 INDUCTOR 10μH
L2004 1-469-555-21 INDUCTOR 10μH
L2005 1-469-555-21 INDUCTOR 10μH
L2007 1-469-555-21 INDUCTOR 10μH
L2008 1-469-555-21 INDUCTOR 10μH
L2010 1-469-555-21 INDUCTOR 10μH
L2011 1-469-555-21 INDUCTOR 10μH
L2012 1-469-555-21 INDUCTOR 10μH
L2013 1-469-555-21 INDUCTOR 10μH
L2500 1-469-555-21 INDUCTOR 10μH
L2502 1-469-555-21 INDUCTOR 10μH
L2503 1-469-555-21 INDUCTOR 10μH
L3002 1-412-972-31 INDUCTOR 0.27μH
L3003 1-412-972-31 INDUCTOR 0.27μH
L3005 1-469-555-21 INDUCTOR 10μH
L3006 1-469-555-21 INDUCTOR 10μH
