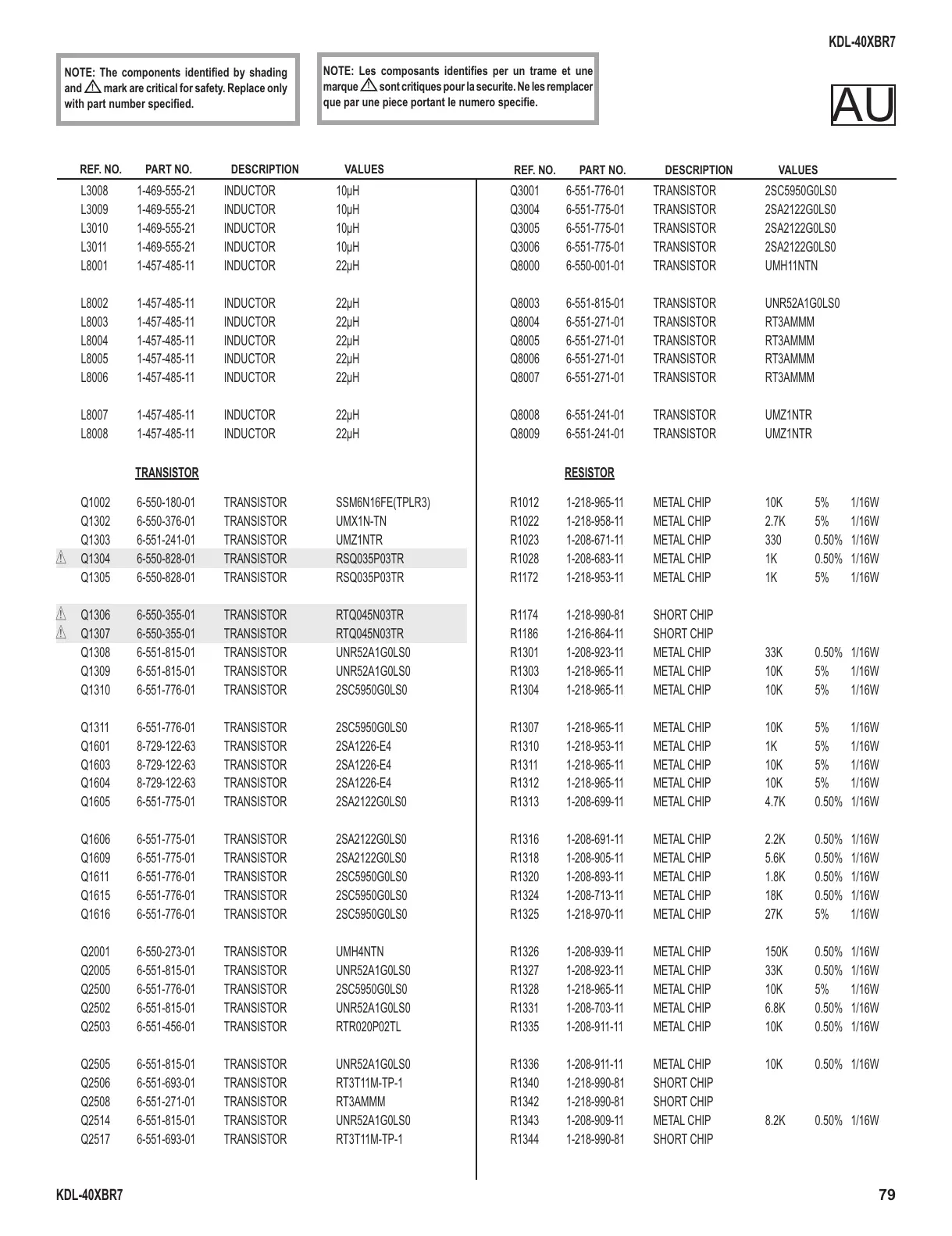

REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
L3008 1-469-555-21 INDUCTOR 10μH
L3009 1-469-555-21 INDUCTOR 10μH
L3010 1-469-555-21 INDUCTOR 10μH
L3011 1-469-555-21 INDUCTOR 10μH
L8001 1-457-485-11 INDUCTOR 22μH
L8002 1-457-485-11 INDUCTOR 22μH
L8003 1-457-485-11 INDUCTOR 22μH
L8004 1-457-485-11 INDUCTOR 22μH
L8005 1-457-485-11 INDUCTOR 22μH
L8006 1-457-485-11 INDUCTOR 22μH
L8007 1-457-485-11 INDUCTOR 22μH
L8008 1-457-485-11 INDUCTOR 22μH
TRANSISTOR
Q1002 6-550-180-01 TRANSISTOR SSM6N16FE(TPLR3)
Q1302 6-550-376-01 TRANSISTOR UMX1N-TN
Q1303 6-551-241-01 TRANSISTOR UMZ1NTR
! Q1304 6-550-828-01 TRANSISTOR RSQ035P03TR
Q1305 6-550-828-01 TRANSISTOR RSQ035P03TR
! Q1306 6-550-355-01 TRANSISTOR RTQ045N03TR
! Q1307 6-550-355-01 TRANSISTOR RTQ045N03TR
Q1308 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q1309 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q1310 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q1311 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q1601 8-729-122-63 TRANSISTOR 2SA1226-E4
Q1603 8-729-122-63 TRANSISTOR 2SA1226-E4
Q1604 8-729-122-63 TRANSISTOR 2SA1226-E4
Q1605 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q1606 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q1609 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q1611 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q1615 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q1616 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q2001 6-550-273-01 TRANSISTOR UMH4NTN
Q2005 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q2500 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q2502 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q2503 6-551-456-01 TRANSISTOR RTR020P02TL
Q2505 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q2506 6-551-693-01 TRANSISTOR RT3T11M-TP-1
Q2508 6-551-271-01 TRANSISTOR RT3AMMM
Q2514 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q2517 6-551-693-01 TRANSISTOR RT3T11M-TP-1
Q3001 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q3004 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q3005 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q3006 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q8000 6-550-001-01 TRANSISTOR UMH11NTN
Q8003 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q8004 6-551-271-01 TRANSISTOR RT3AMMM
Q8005 6-551-271-01 TRANSISTOR RT3AMMM
Q8006 6-551-271-01 TRANSISTOR RT3AMMM
Q8007 6-551-271-01 TRANSISTOR RT3AMMM
Q8008 6-551-241-01 TRANSISTOR UMZ1NTR
Q8009 6-551-241-01 TRANSISTOR UMZ1NTR
RESISTOR
R1012 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1022 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R1023 1-208-671-11 METAL CHIP 330 0.50% 1/16W
R1028 1-208-683-11 METAL CHIP 1K 0.50% 1/16W
R1172 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1174 1-218-990-81 SHORT CHIP
R1186 1-216-864-11 SHORT CHIP
R1301 1-208-923-11 METAL CHIP 33K 0.50% 1/16W
R1303 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1304 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1307 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1310 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1311 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1312 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1313 1-208-699-11 METAL CHIP 4.7K 0.50% 1/16W
R1316 1-208-691-11 METAL CHIP 2.2K 0.50% 1/16W
R1318 1-208-905-11 METAL CHIP 5.6K 0.50% 1/16W
R1320 1-208-893-11 METAL CHIP 1.8K 0.50% 1/16W
R1324 1-208-713-11 METAL CHIP 18K 0.50% 1/16W
R1325 1-218-970-11 METAL CHIP 27K 5% 1/16W
R1326 1-208-939-11 METAL CHIP 150K 0.50% 1/16W
R1327 1-208-923-11 METAL CHIP 33K 0.50% 1/16W
R1328 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1331 1-208-703-11 METAL CHIP 6.8K 0.50% 1/16W
R1335 1-208-911-11 METAL CHIP 10K 0.50% 1/16W
R1336 1-208-911-11 METAL CHIP 10K 0.50% 1/16W
R1340 1-218-990-81 SHORT CHIP
R1342 1-218-990-81 SHORT CHIP
R1343 1-208-909-11 METAL CHIP 8.2K 0.50% 1/16W
R1344 1-218-990-81 SHORT CHIP
