Sony RMT-144A - Loading Motor Assy; Optical Pick-Up

2-5

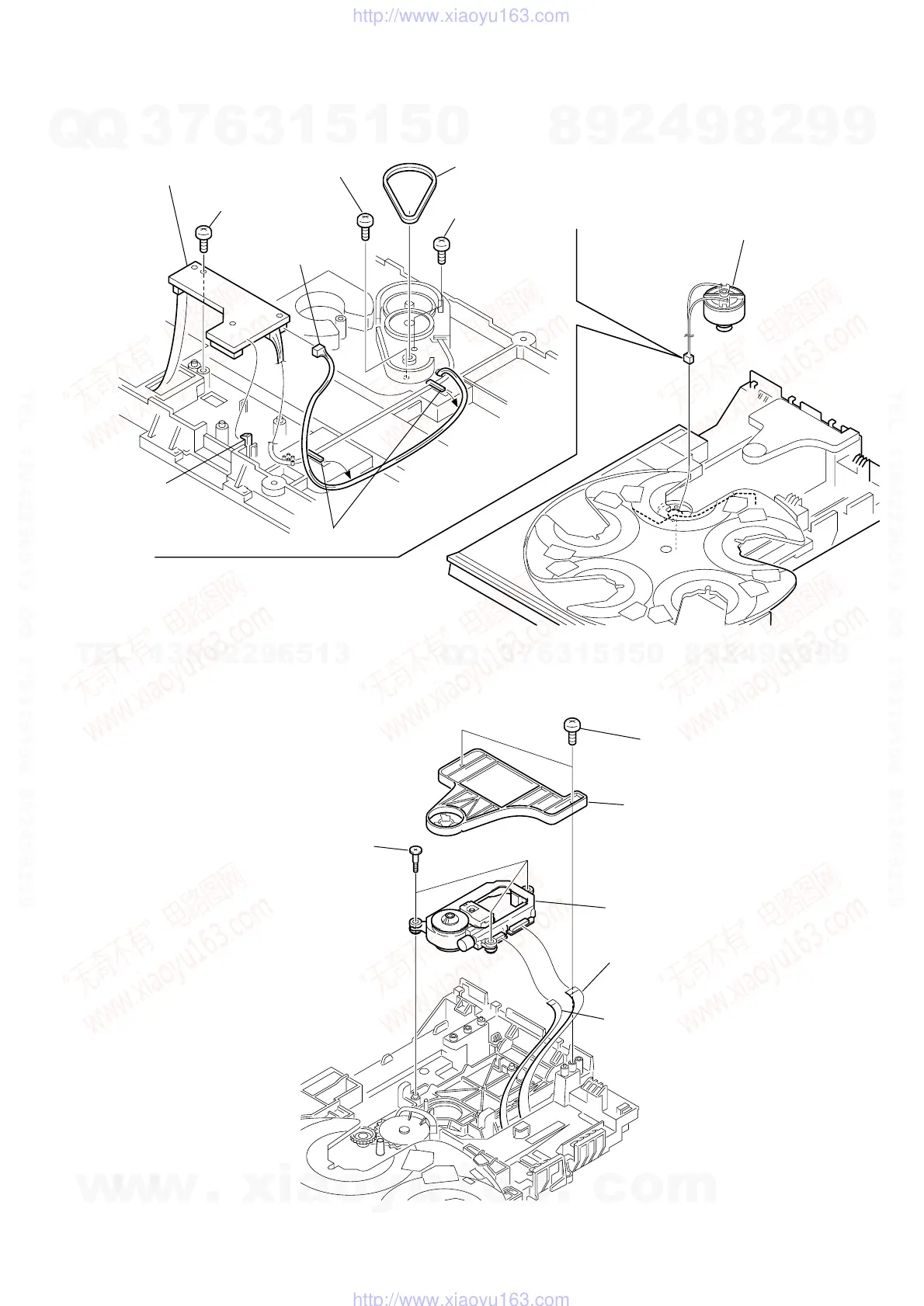

2-10.LOADING MOTOR ASS’Y
2-11.OPTICAL PICK-UP
3 MD-94 board
6 Belt (timing)
4 Connector
(CN004)
9 Loading motor assembly
(M901)
2 Claw
5 Claws
7 Screw (M2.6 × 4)
8 Screw (M2.6 × 4)
1 Screw (M2.6 × 8)
3 Flexible flat cable
(FMM-42, 26P)
6 Optical pick-up
5 Three step screws
4 Flexible flat cable
(FMO-6, 9P)
1 Two screws
(B3)
2 Chuck assy
