— 6 —

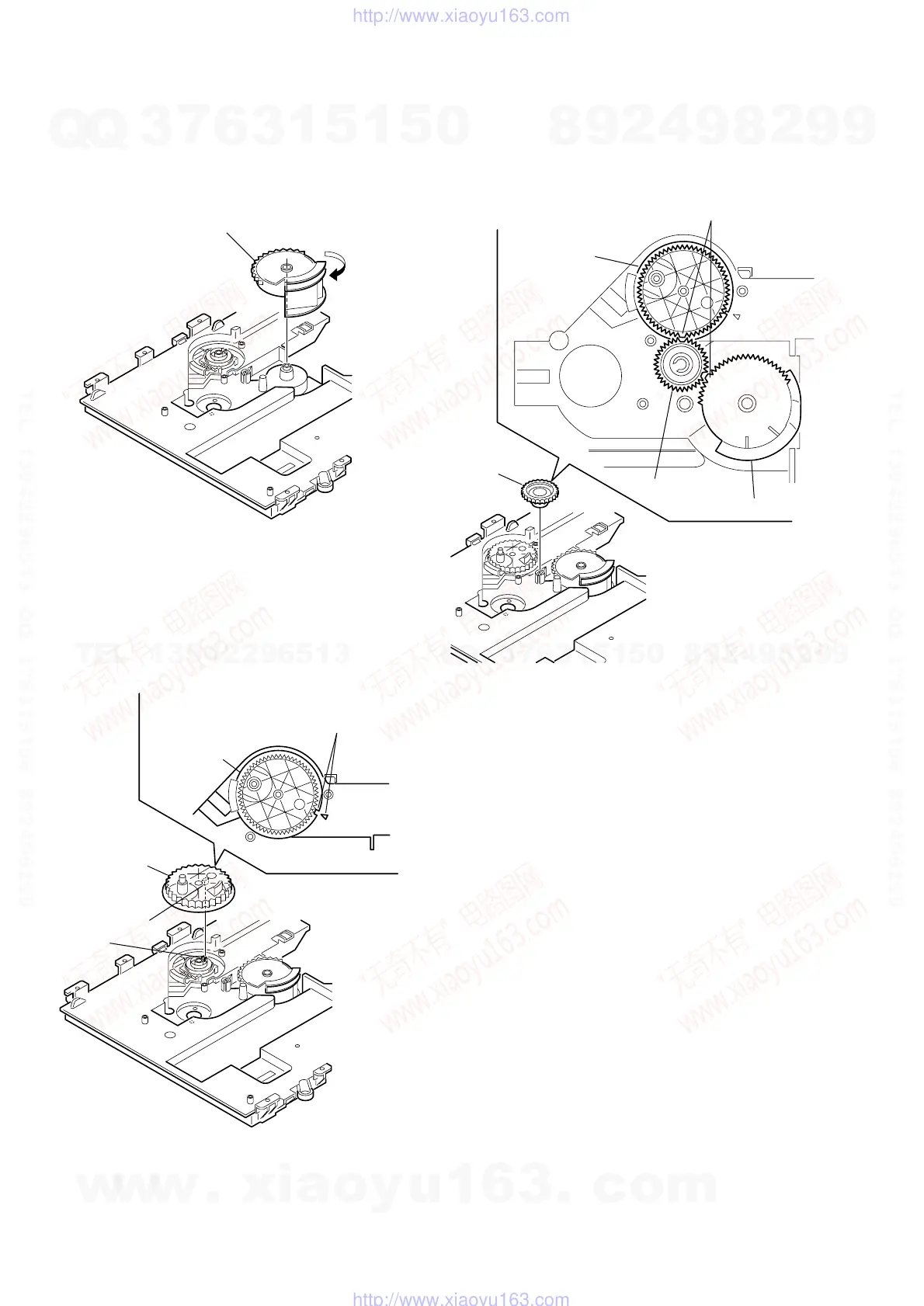

4. NOTE ON MOUNTING THE GEARS
1) Mount the gear (chuck). (See Fig. 5)
2) Rotate the gear (chuck) in the direction of the arrow. (down
position) (See Fig. 5)
3) Connect the boss of the gear (swing) with the groove of the
rotary encoder and mount the gear (swing). (See Fig. 6)
4) Align triangle mark of the chassis with the groove of the gear
(swing).
Gear (chuck)
Gear (swing)
Gear (swing)
Boss
Groove
Align triangle mark of the chassis
with the groove of the gear (swing).
5) Mount the gear (idler) while aligning the engagement of the
gear (swing) and the gear (chuck). (See Fig. 7)
Gear
(idler)
Gear (idler)
Gear (chuck)
Gear (swing)
Engagement the gear (swing) and the gear (chuck).
Fig. 5.
Fig. 6.
Fig. 7.
