— 7 —

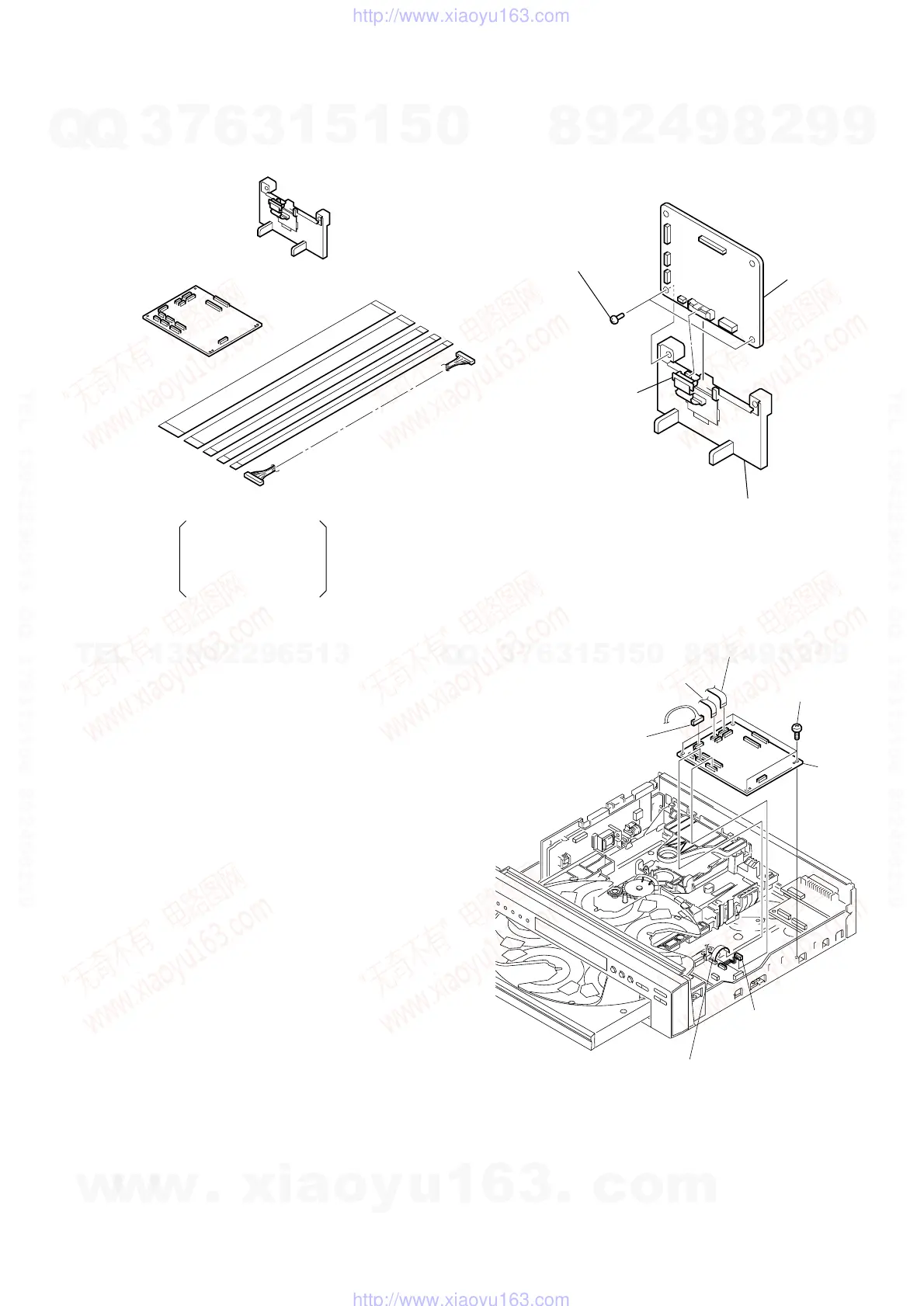

5. HOW TO SERVICE THE MB-103
BOARD
1) Remove the upper case from the set. (Refer to section 2-1)
2) Remove the MB-103 board. (Refer to section 2-4)
3) Set the MB-103 board in the stand (with CK-121 board) as
shown in Fig. 9.
FFC 26P J-6090-117-A,
FFC 9P J-6090-118-A,
FFC 15P J-6090-121-A,
FFC 25P J-6090-122-A,
FFC 11P J-6090-120-A
Harness 6P (J-6090-126-A
CK-120 board
(J-6090-127-A)
Stand
(CK-121 board)
(J-6090-132-A)
Five flexible flat cables
Jig
4) Set the CK-120 board in the place where the MB-103 board is
removed, as shown in Fig. 10.
3
Connector (CN101)
2
Stand
(with CK-121 board)
1
MB-103 board
4
Two screws (B3)
5
Connector
(CN109)
6
Board to board
connector (CN111)
1
CK-120
board
2
Four screws (B3)
4
Flexible flat cable
(FMO-6: CN103)
3
Flexible flat cable
(FMM-42: CN101)
7
Flexible flat cable
(FMC-15: CN107)
Fig. 8.
Fig. 9.
Fig. 10.
