DVP-NC615/NC655P
4-8
DVD/CD RF AMP, DIGITAL SERVO, MOTOR DRIVE, SERVO, AV DECODER, SDRAM, SYSTEM CONTROL, AUDIO DAC, PLL, I/P CONVERTER, VIDEO ENCODER
MB-103
MB-103 (DVD/CD RF AMP, DIGITAL SERVO, MOTOR DRIVE, SERVO, AV DECODER, SDRAM, SYSTEM CONTROL,
AUDIO DAC, PLL, I/P CONVERTER, VIDEO ENCODER) PRINTED WIRING BOARD

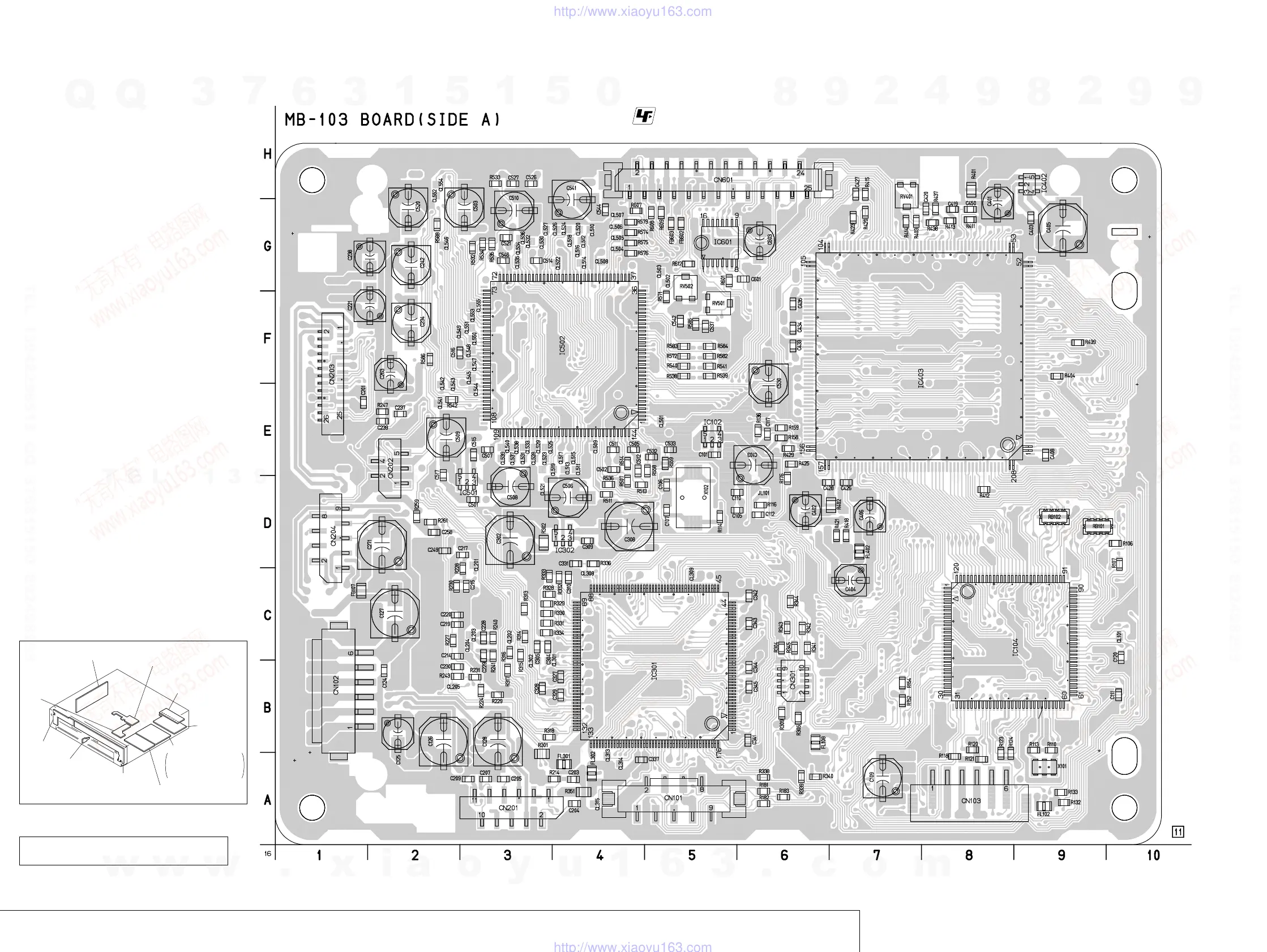

MB-103 BOARD (SIDE A)
CN101 A-5
CN102 B-1
CN103 A-8
CN201 A-3
CN202 E-2
CN203 F-1
CN204 D-1
CN301 B-6
CN601 H-5
IC102 E-5
IC104 C-8
IC301 B-5
IC302 D-4
IC402 H-9
IC403 F-7
IC501 D-3
IC502 F-4
IC601 G-5
RV401 H-7
RV501 F-5
RV502 G-5
For printed wiring board
There are a few cases that the part printed
on this diagram isn’t mounted in this model.
• : Uses unleaded solder.
1
IF-091 board
(IF COM)
PL-031 board
(LED)
FR-187 board
(FUNCTION SW/LED)
MD-94 board
(MD INTERFACE)
CN-158 board
(CONNECTOR)
MB-103 board
DVD/CD RF AMP, DIGITAL SERVO,
MOTOR DRIVE, AV DECODER,
SDRAM, SYSTEM CONTROL,
AUDIO DAC, PLL, I/P CONVERTER,
VIDEO ENCODER
AV-062 board
(AUDIO/VIDEO OUT)
ER-14 board
(LINE1 OUT)
SE-130 board
(SENSOR)
POWER BLOCK
(SWITCHING REGULATOR)
