1-5
20

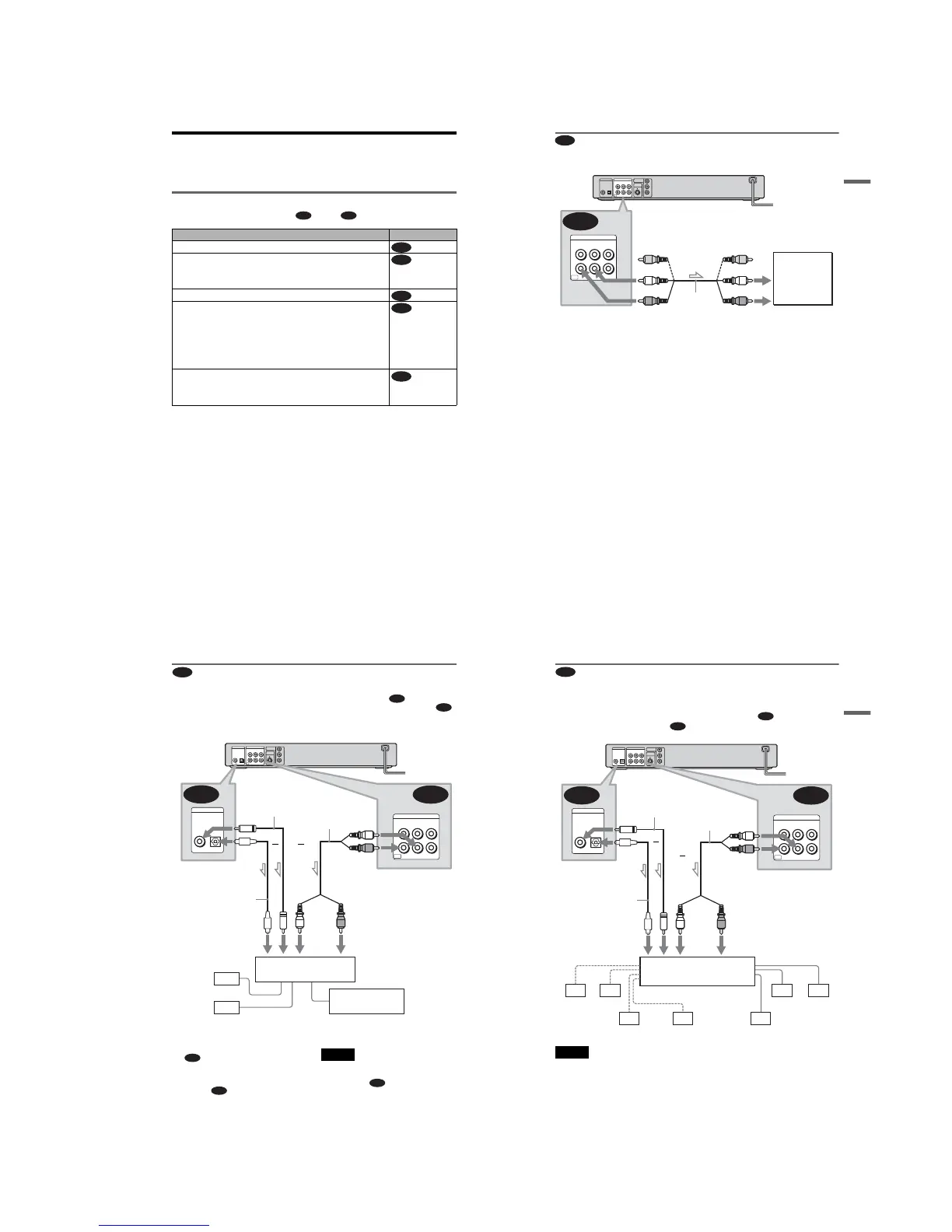

Step 2: Connecting the Audio Cords
Refer to the chart below to select the connection that best suits your system. Be sure to also read
the instructions for the components you wish to connect.
Select a connection
Select one of the following connections, through .
* Manufactured under license from Dolby
Laboratories. “Dolby,” “Pro Logic,” and the
double-D symbol are trademarks of Dolby
Laboratories.
** “DTS” and “DTS Digital Out” are trademarks
of Digital Theater Systems, Inc.
Components to be connected Connection
TV (page 21)
Stereo amplifier (receiver)
(having L and R audio input jacks only, or having a digital input jack)
• 2 speakers
(front L and R)
(page 22)
MD deck/DAT deck (page 22)
AV amplifier (receiver) with a Dolby* Surround (Pro Logic)
decoder
(having L and R audio input jacks only, or having a digital input jack)
• 3 speakers
(front L and R, and rear (monaural))
or
• 6 speakers
(front L and R, center, rear L and R, subwoofer)
(page 23)
AV amplifier (receiver) having a Dolby Digital or DTS** decoder
and a digital input jack
• 6 speakers
(front L and R, center, rear L and R, subwoofer)
(page 24)
A D
A
B
B
C
D
21
Hookups
Connecting to your TV
This connection will use your TV speakers for sound.
* The yellow plug is used for video signals (page
18).
◆Recommended surround sound effects for
this connection
• TVS DYNAMIC (page 45)
• TVS WIDE (page 45)
z Hint
When connecting to a monaural TV, use a stereo-
mono conversion cord (not supplied). Connect the
LINE OUT L/R (AUDIO) jacks to the TV’s audio
input jack.
A
PCM/DTS/
DOLBY DIGITAL
S VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL
OPTICAL
R-AUDIO-L
VIDEO
R-AUDIO-L
IN
OUT
VIDEO
DIGITAL OUT LINE
P
R
P
B
Y
R-AUDIO-L
VIDEO
R-AUDIO-L
IN
OUT
VIDEO
LINE
A
TV
l : Signal flow
CD/DVD player
(white)
(red)
Audio/video
cord (supplied)
to audio input
(yellow)
(white)
(red)
(yellow)*
to LINE OUT L/R
(AUDIO)
,
continued
22
Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to
an MD deck or DAT deck
If the stereo amplifier (receiver) has audio input jacks L and R only, use . If the amplifier
(receiver) has a digital input jack, or when connecting to an MD deck or DAT deck, use .
In this case, you can also connect the player directly to the MD deck or DAT deck without using
your stereo amplifier (receiver).
◆Recommended surround sound effects for
the connection only
• TVS STANDARD (page 45)
z Hint
In connection
, you can use the supplied
audio/video cord instead of using a separate audio
cord.
Note
If you select one of the TVS effects (page 44) while
playing a disc, no sound will come from your
speakers with the connection.
B
B-1
B-2
PCM/DTS/
DOLBY DIGITAL
S VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL
OPTICAL
R-AUDIO-L
VIDEO
R-AUDIO-L
IN
OUT
VIDEO
DIGITAL OUT LINE
P
R
P
B
Y
B-2
B-1
PCM/DTS/
DOLBY DIGITAL
COAXIAL
OPTICAL
DIGITAL OUT
R-AUDIO-L
VIDEO
R-AUDIO-L
IN
OUT
VIDEO
LINE
CD/DVD player
or
Stereo amplifier (receiver)
MD deck/DAT deck
Front (L)
Front (R)
[Speakers]
(white)
(red)
(red)(white)
Coaxial digital
cord (not supplied)
Stereo audio cord
(not supplied)
to audio inputto coaxial or optical
digital input
Optical digital cord
(not supplied)
Remove jack cap
before connecting
(DVP-NS415 only)
or
to LINE OUT L/R (AUDIO)
to DIGITAL OUT
(COAXIAL or OPTICAL)
l: Signal flow
B-1
B-1
B-2
23
Hookups
Connecting to an AV amplifier (receiver) having a Dolby Surround (Pro
Logic) decoder and 3 to 6 speakers
You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-
channel audio (Dolby Digital) discs.
If your amplifier (receiver) has L and R audio input jacks only, use . If your amplifier
(receiver) has a digital input jack, use .
Note
When connecting 6 speakers, replace the monaural
rear speaker with a center speaker, 2 rear speakers
and a subwoofer.
C
C-1
C-2
PCM/DTS/
DOLBY DIGITAL
S VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL
OPTICAL
R-AUDIO-L
VIDEO
R-AUDIO-L
IN
OUT
VIDEO
DIGITAL OUT LINE
P
R
P
B
Y
C-2
C-1
PCM/DTS/
DOLBY DIGITAL
COAXIAL
OPTICAL
DIGITAL OUT
R-AUDIO-L
VIDEO
R-AUDIO-L
IN
OUT
VIDEO
LINE
CD/DVD player
or
Front (R)Front (L)
Rear (R)
Subwoofer
l: Signal flow
Rear (L)
Amplifier (receiver) with Dolby
Surround decoder
Center
Rear (mono)
Stereo
audio cord (not
supplied)
[Speakers]
Coaxial digital cord
(not supplied)
(red)(white)
to coaxial or optical digital
input
Optical digital cord
(not supplied)
Remove jack cap
before connecting
(DVP-NS415 only)
[Speakers]
or
to audio input
(white)
(red)
to LINE OUT L/R (AUDIO)
to DIGITAL OUT
(COAXIAL or OPTICAL)
,
continued
