7-2. ADJUSTMENT OF VIDEO SYSTEM
1. Video Level Adjustment (MB-103 BOARD)
<Purpose>
This adjustment is made to satisfy the NTSC standard, and if not
adjusted correctly, the brightness will be too large or too small.
Mode Video level adjustment in test mode
Signal Color bars
Test point LINE OUT (VIDEO) connector
(75 Ω terminated)
Instrument Oscilloscope
Adjusting element RV501
Specification 1.0
+0.04
Vp-p
–0.02
Adjusting method:
1) In the test mode initial menu “6” Video Level Adjustment, set
so that color bars are generated.
2) Adjust the RV401 to attain 1.0
+0.04
Vp-p.
–0.02

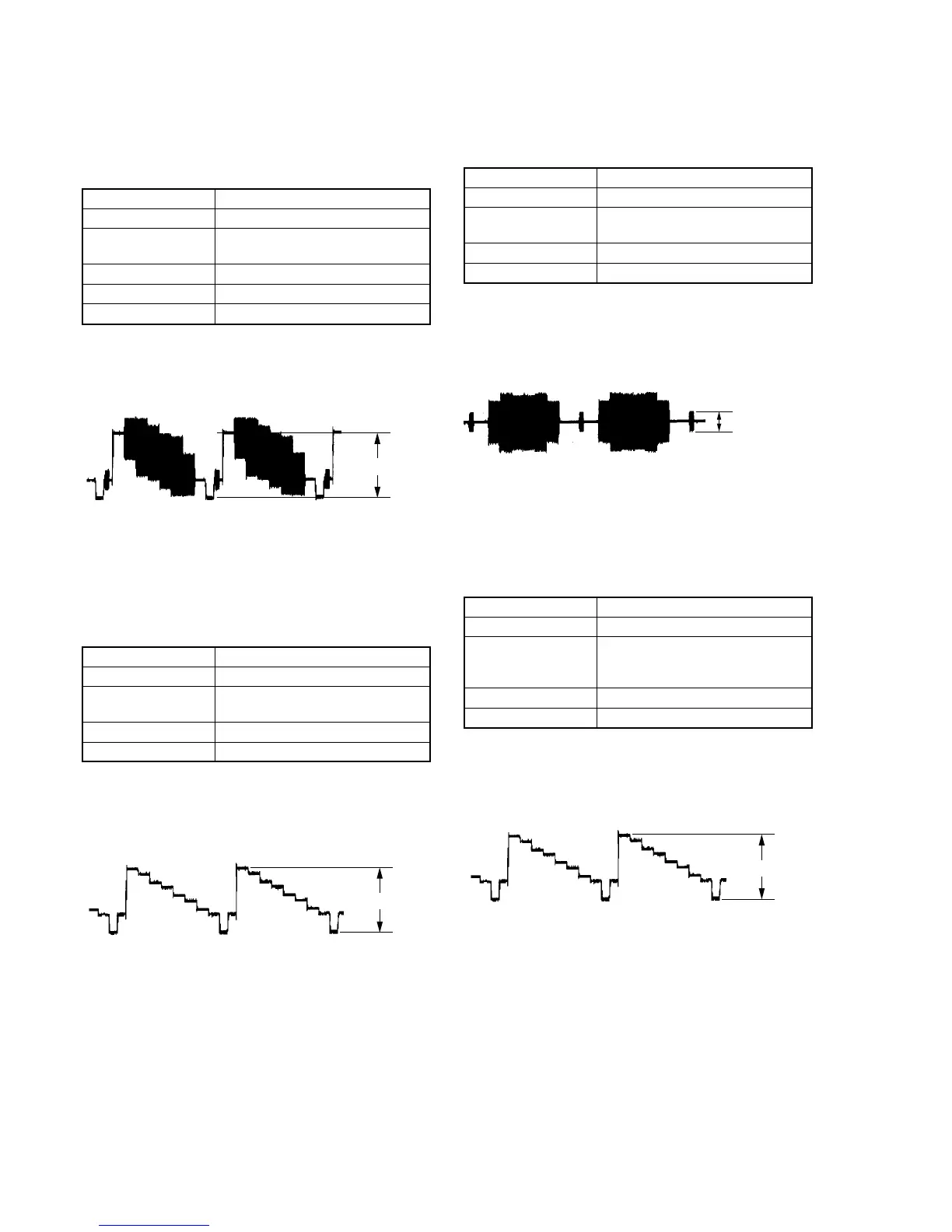

Fig.7-1.
2. Checking S Video Output S-Y
<Purpose>
Check S-terminal video output. If it is incorrect, pictures will not
be displayed correctly in spite of connection to the TV with a S-
terminal cable.
Mode Video level adjustment in test mode
Signal Color bars
Test point S VIDEO OUT (S-Y) connector
(75 Ω terminated)
Instrument Oscilloscope
Specification 1.0 ± 0.05 Vp-p
Checking method:
1) In the test mode initial menu “6” Video Level Adjustment, set
so that color bars are generated.
2) Confirm that the S-Y level is 1.0 ± 0.05 Vp-p.
Fig. 7-2.
3. Checking S Video Output S-C
<Purpose>
This checks whether the S video output S-C satisfies the NTSC
standard. If it is not correct, the colors will be too dark or too light.
Mode Video level adjustment in test mode
Signal Color bars
Test point S VIDEO OUT (S-C) connector
(75 Ω terminated)
Instrument Oscilloscope
Specification 286 ± 30 mVp-p
Checking method:
1) In the test mode initial menu “6” Video Level Adjustment, set
so that color bars are generated.
2) Confirm that the S-C burst is 286 ± 30 mVp-p
Fig. 7-3.
4. Checking Component Video Output Y
<Purpose>
This checks component video output Y. If it is incorrect, correct
brightness will not be attained when connected to, for instance,
projector.
Mode Video level adjustment in test mode
Signal Color bars
Test point COMPONENT VIDEO OUT (Y)
connector, D1 VIDEO OUT connector,
Pin 1 (75 Ω terminated)
Instrument Oscilloscope
Specification 1.0 ± 0.05 Vp-p
Checking method:
1) In the test mode initial menu “6” Video Level Adjustment, set
so that color bars are generated.
2) Confirm that the Y level is 1.0 ± 0.05 Vp-p.
Fig. 7-4.
1.0 Vp-p
+0.04
–0.02
1.0 ± 0.05 Vp-p
286 ± 30 mVp-p
1.0 ± 0.05 Vp-p
