Sony RMT-D141A - MB-103 BOARD (SIDE A)

DVP-NS305/NS310/NS315/NS405/NS410/NS415
4-12
DVD/CD RF AMP, DIGITAL SERVO, MOTOR DRIVE, SERVO, AV DECODER, SDRAM, SYSTEM CONTROL, AUDIO DAC, PLL
MB-103
MB-103 (DVD/CD RF AMP, DIGITAL SERVO, MOTOR DRIVE, SERVO, AV DECODER, SDRAM, SYSTEM CONTROL,
AUDIO DAC, PLL) PRINTED WIRING BOARD

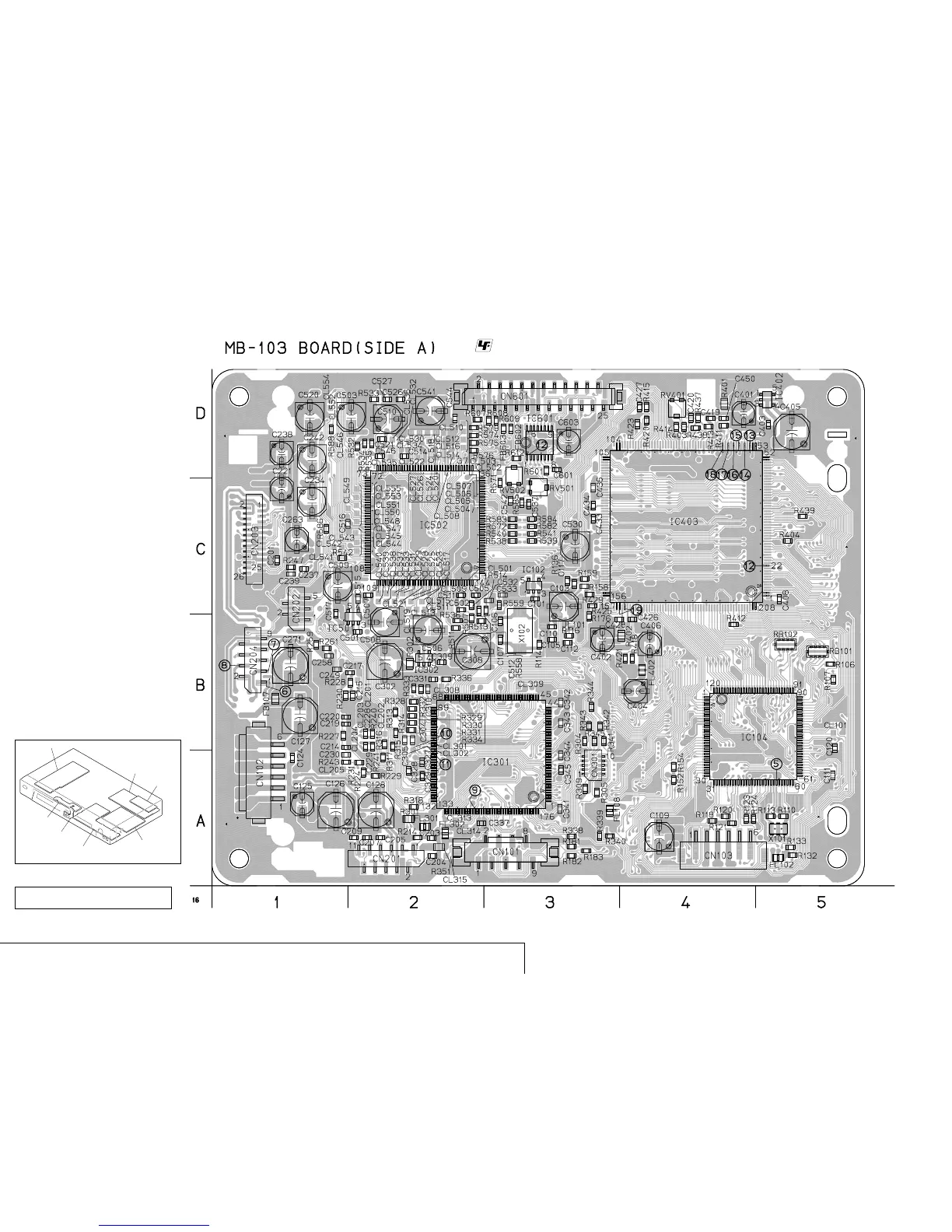

MB-103 BOARD (SIDE A)
CN101 A-3
CN102 A-1
CN103 A-4
CN201 A-2
CN203 C-1
CN204 B-1
CN601 D-1
IC104 B-4
IC301 A-2
IC302 B-2
IC402 D-5
IC403 C-4
IC601 D-3
RV401 D-4
For printed wiring board
There are a few cases that the part printed
on this diagram isn’t mounted in this model.
• : Uses unleaded solder.
MB-103 board
(DVD/CD RF AMP, SERVO,
MOTOR DRIVE, AD DECODER,
SYSTEM CONTROL,
AUDIO ADC, PLL)
AV-61 board
(AUDIO/VIDEO OUT)
IF-89 board
(IF COM)
FL-126 board
(LED)
MS-81 board
(LOADING MOTOR)
ER-14 board
(AV AMP)
Power block
