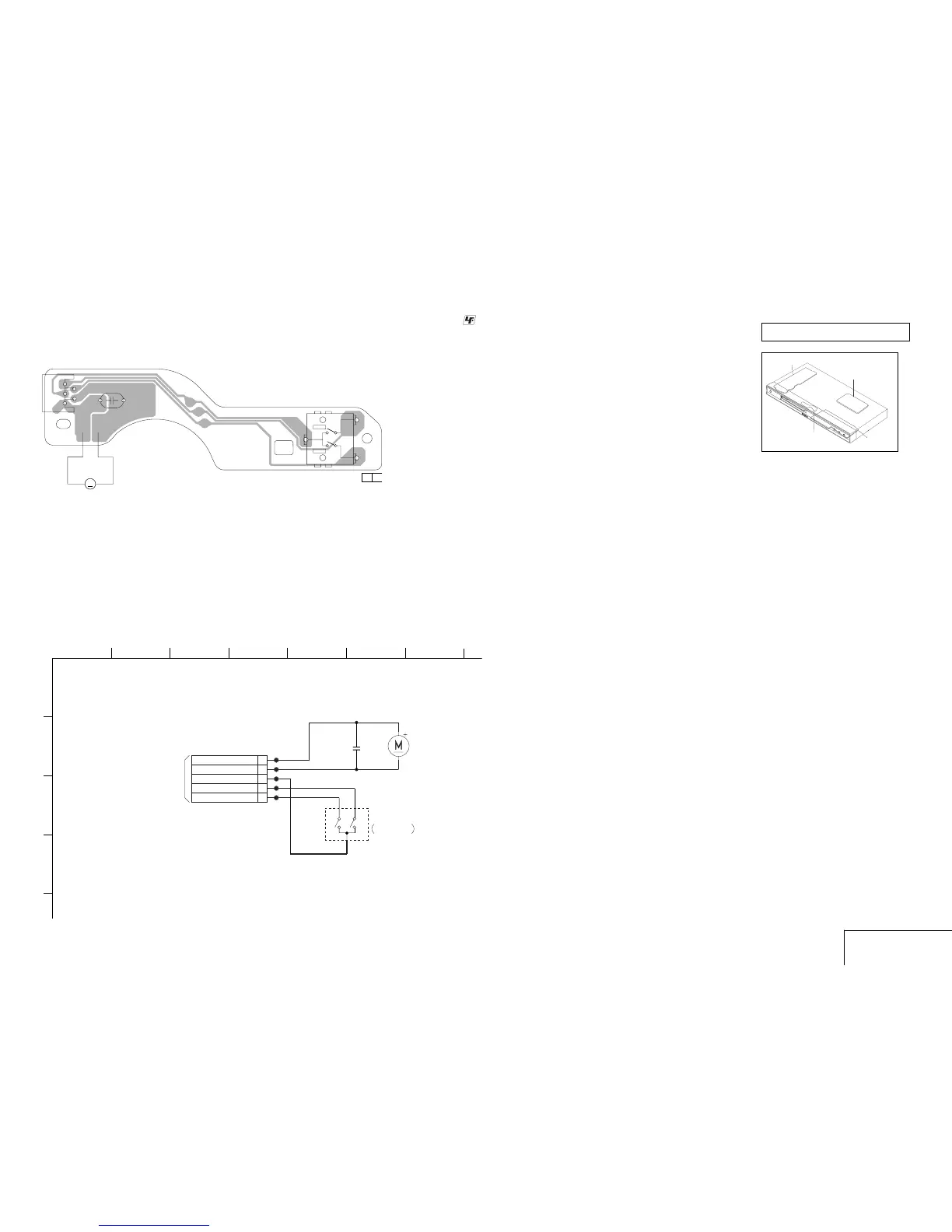

DVP-NS47P/NS57P/NS508P/NS64P/NS67P/NS608P
LOADING MOTOR
MS-203
For Schematic Diagram
• Refer to page 4-9 for printed wiring board of MS-203 board.
MS-203 BOARD
LOADING MOTOR
-REF.NO.:1000 SERIES-
XX MARK:NO MOUNT
NO MARK:REC/PB MODE
1
A
B
C
D
2
765
43
MS-203 BOARD
CN001
S001
(CHUCK/TRAY DETECT)
C001
S001
1-861-327- 12 21
5
4
1
2
1
2
3
M001
(LOADING MOTOR)
+
-
MM
M001
5PCN001
1
2
3
4
5
JL001
JL002
JL003
JL004
JL005
TO MV-57 BOARD (2/5)
CN202
(SEE PAGE 4-15 TO 4-16)
LOADING
MOTOR
C001
XX
LDM+
LDM-
OCSW1
CKSW1
GND/CTL
S001
DETECT
CHUCK/TRAY
1
3
2
4-104-9
MS-203 (LOADING MOTOR) PRINTED WIRING BOARD
• : Uses unleaded solder.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
IF-156 Board
(INTERFACE)
Power Board
MV-057 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
MS-203 Board
To Next Page
