Sony RMT-D185A - Page 40

DVP-NS47P/NS57P/NS508P/NS64P/NS67P/NS608P

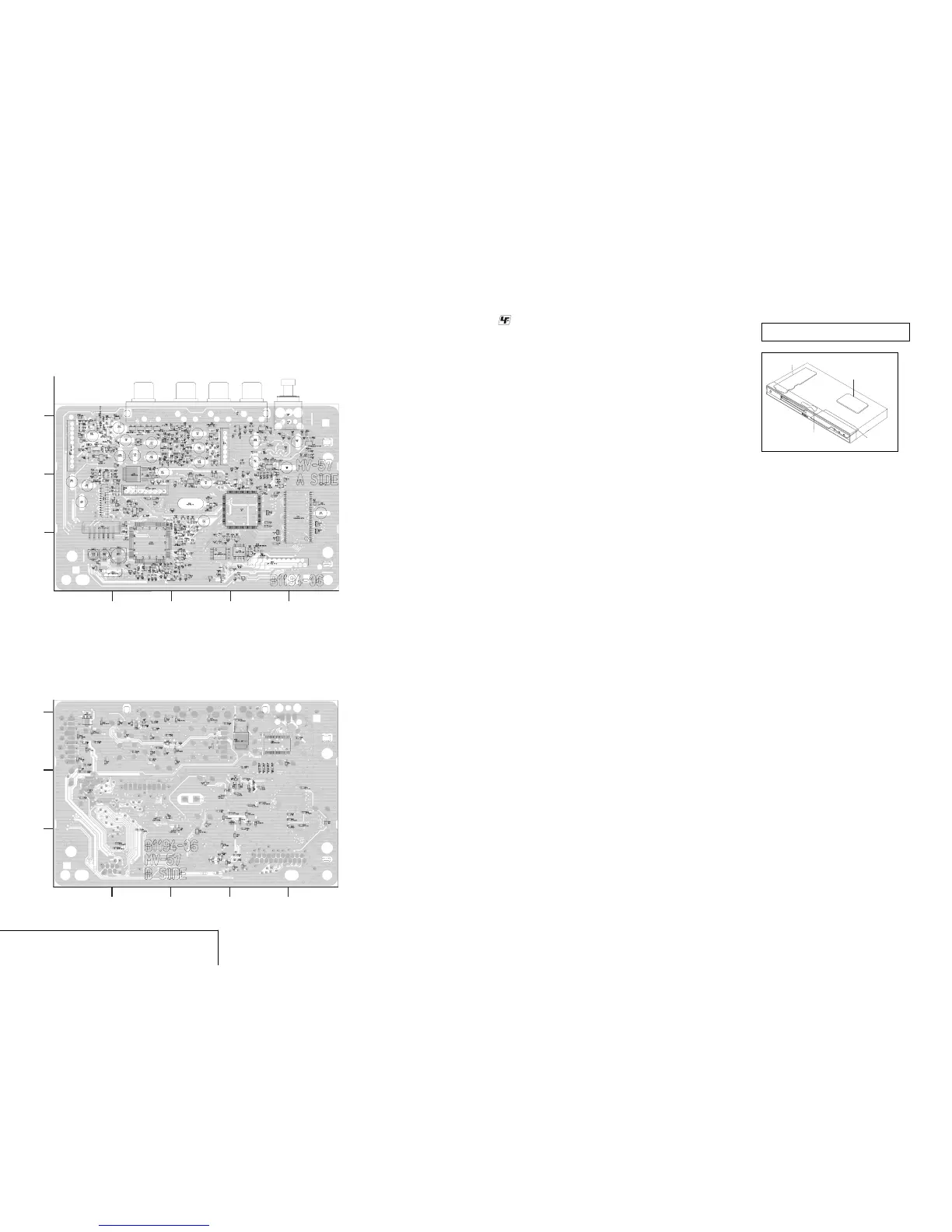

MV-57 (SYSTEM, DRIVE, VIDEO, AUDIO, POWER) PRINTED WIRING BOARD
• : Uses unleaded solder.
MV-57 BOARD (SIDE A)
MV-57 BOARD (SIDE B)
4-12
MV-57 BOARD
SIDE A
IC102 A-3
IC103 A-4
IC104 B-5
IC105 C-4
IC107 B-3
IC108 A-4
IC110 B-2
IC201 A-2
IC402 C-2
IC406 C-1
D311 C-2
D312 C-3
D313 C-4
D314 C-4
D401 C-1
D402 C-1
D404 C-2
Q101 B-2
Q102 B-1
Q103 B-2
Q401 C-1
Q402 C-2
Q403 C-1
Q404 C-2
Q405 C-2
Q411 C-5
Q416 C-1
Q502 C-1
SIDE B
IC303 C-4
IC304 C-4
Q501 C-1
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
4-11
SYSTEM, DRIVE, VIDEO, AUDIO, POWER
MV-57
A
B
C
D
1
2
5
43
A
B
C
1
2
5
43
IF-156 Board
(INTERFACE)
Power Board
MV-057 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
MS-203 Board
