Sony RMT-D187A - Disassembly Sections; Upper Case and Front Panel Removal

2-1
DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP
Note: Follow the disassembly procedure in the numerical order given.

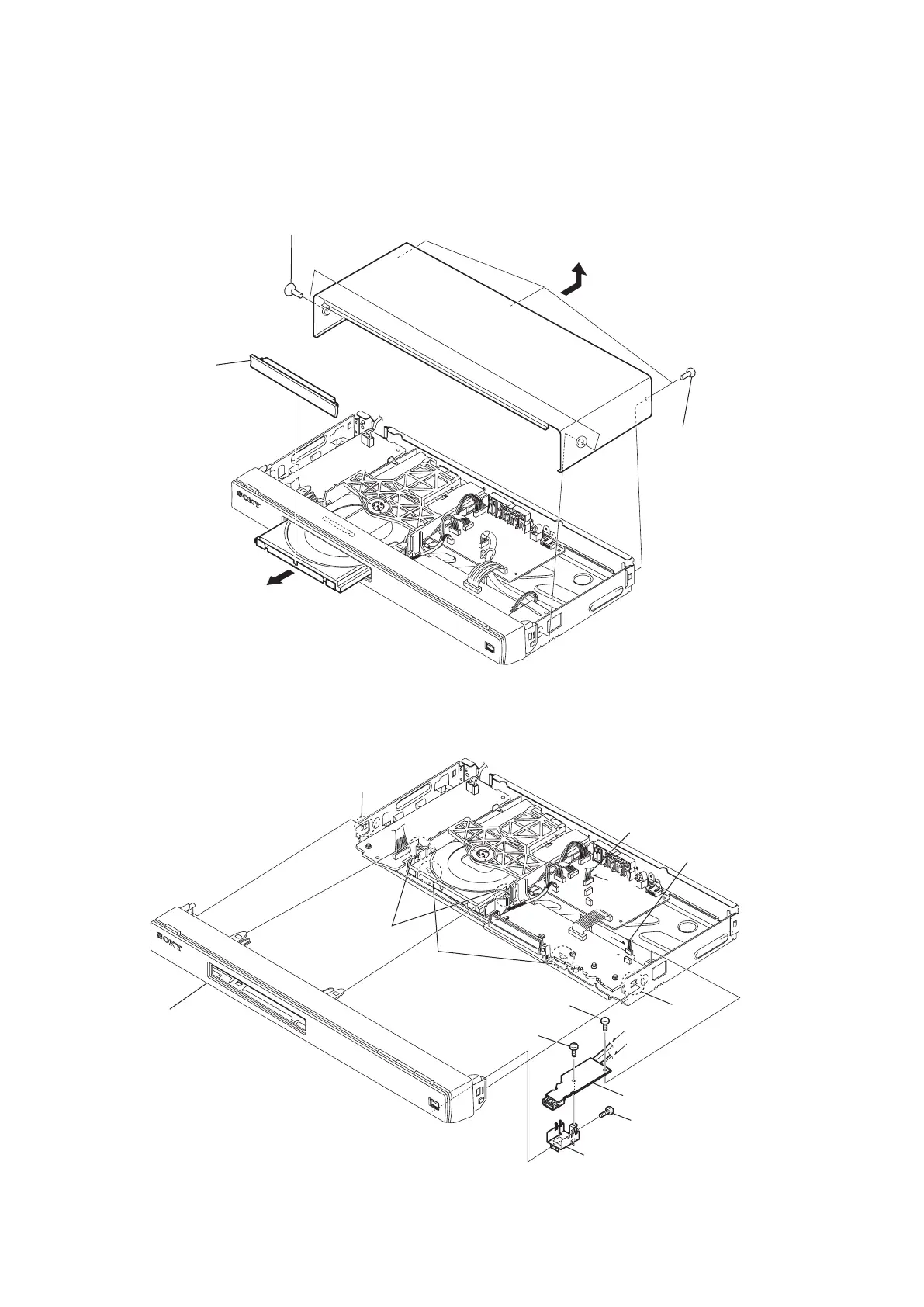

2-1. UPPER CASE
SECTION 2
DISASSEMBLY
2-2. FRONT PANEL ASSEMBLY
b
b
c
c
8 Front Panel Assembly
7 Claw
4 Claw
3 CN106 Harness USB-005
2 CN402 Harness IB-001
9 One Screw
+BVTP 2.6 (3CR)
qs Bracket
qa FB-224 Board
q; One Screw
+BVTP 2.6 (3CR)
1 One Screw
+BV3 (3-CR)
6 Claw
5 Claw
3 Two Tapping Screws
5 Upper case
2 Tray Cover
4 Three Tapping Screws
1
