Sony RMT-D187A - RF and Servo Block Diagram

DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP

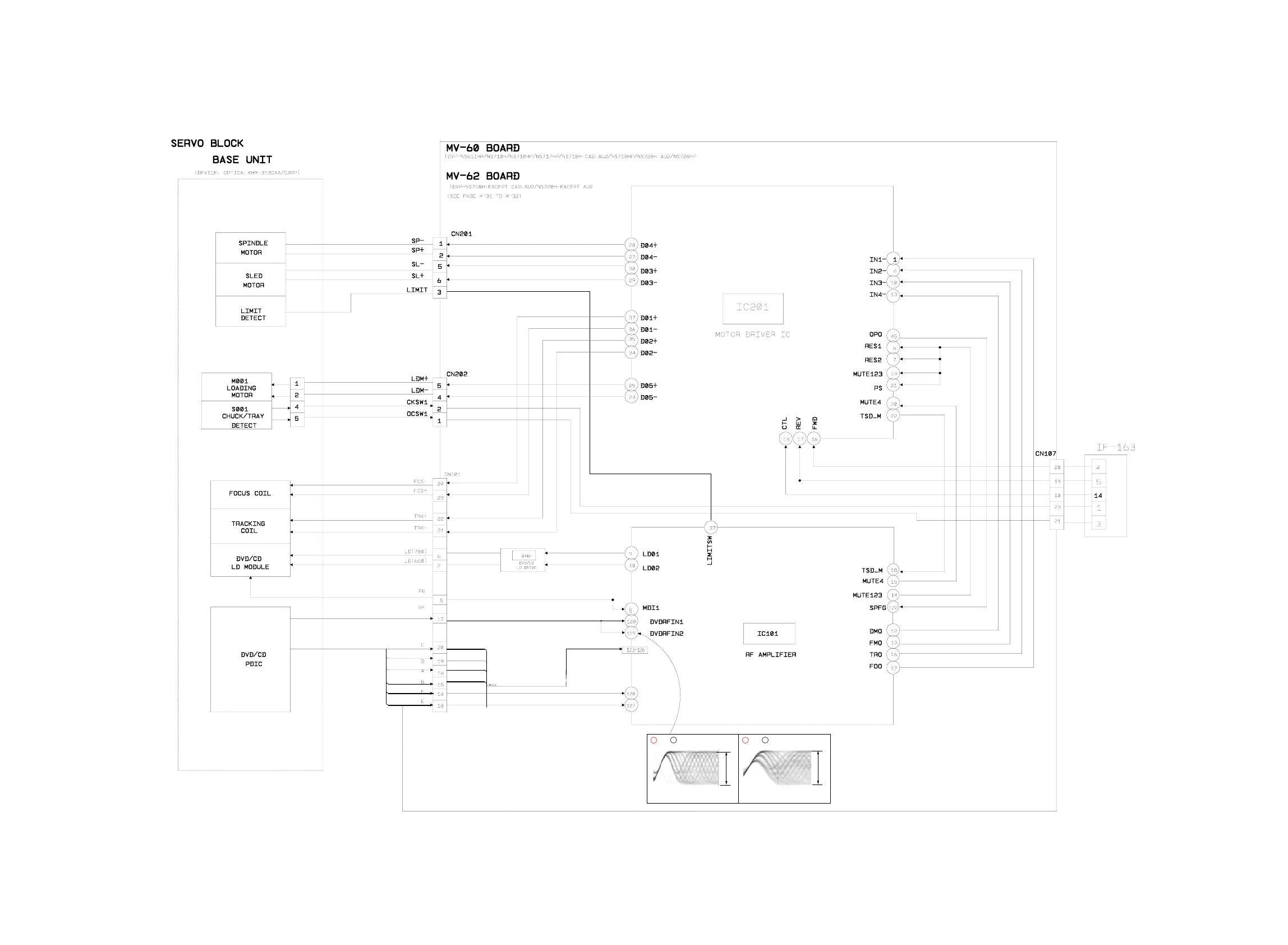

3-4. RF/SERVO BLOCK DIAGRAM
3-7 3-8
200nsec
(0.5Vp-p to
1.1Vp-p)
IC101 (CD PB)
1
119
100nsec
(0.65Vp-p to
1.48Vp-p)
IC101 (DVD PB)
2
119
