– 6 –
DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP
SERVICE NOTE
1. USB HARNESS DRESSING
a) MV-60

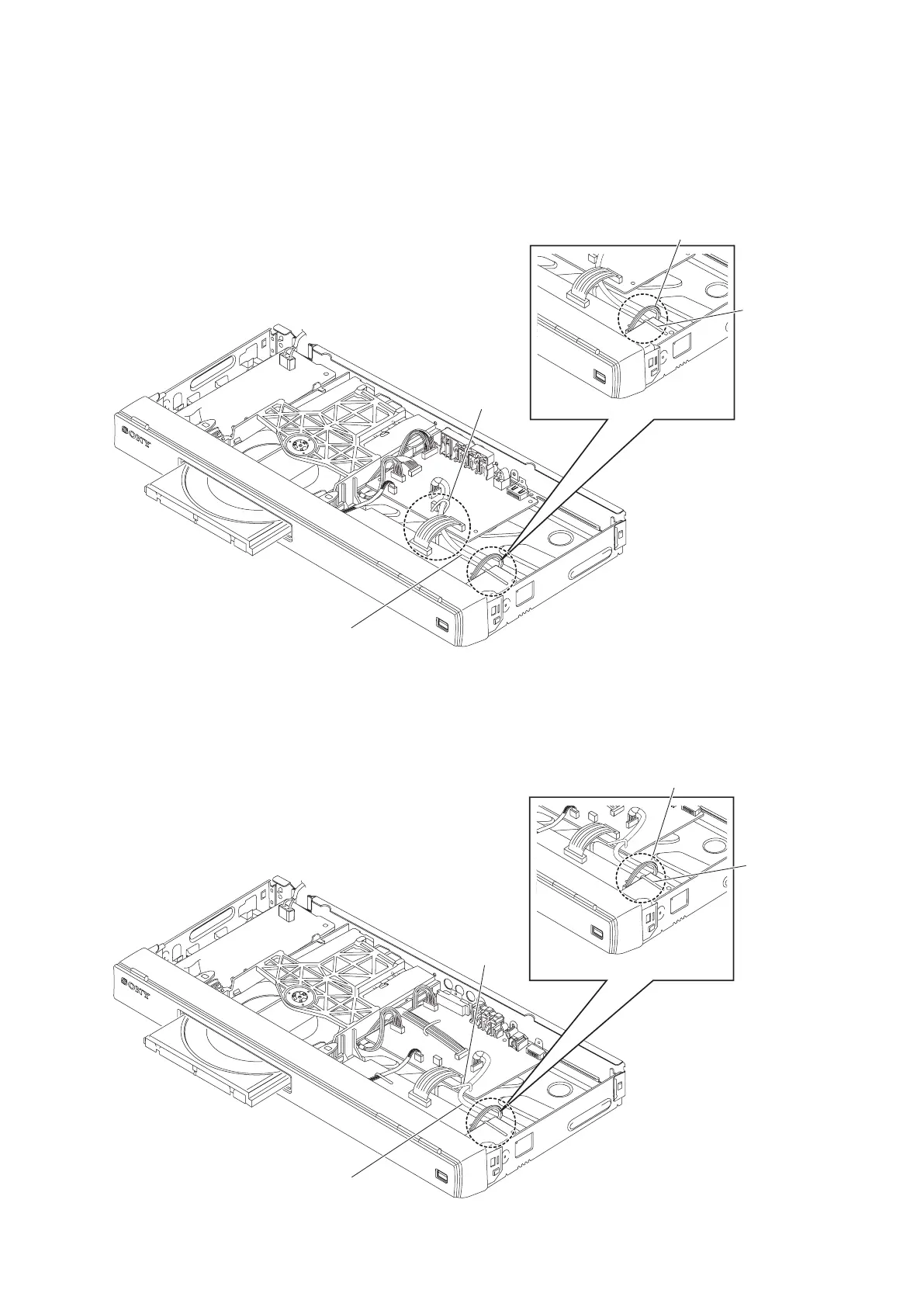

1) Please ensure USB-005 dressing as shown in Fig. 1.
2) Please ensure IB-001 dressing as shown in Fig. 1a.
USB-005
IB-001
Lead Pin L101
Lead Pin LP100
Fig. 1a.
b) MV-62
1) Please ensure USB-006 dressing as shown in Fig. 2.
2) Please ensure IB-001 dressing as shown in Fig. 2a.
Fig. 2a.
IB-001
Lead Pin L101
Lead Pin LP100
USB-006
Fig. 1
Fig. 2
