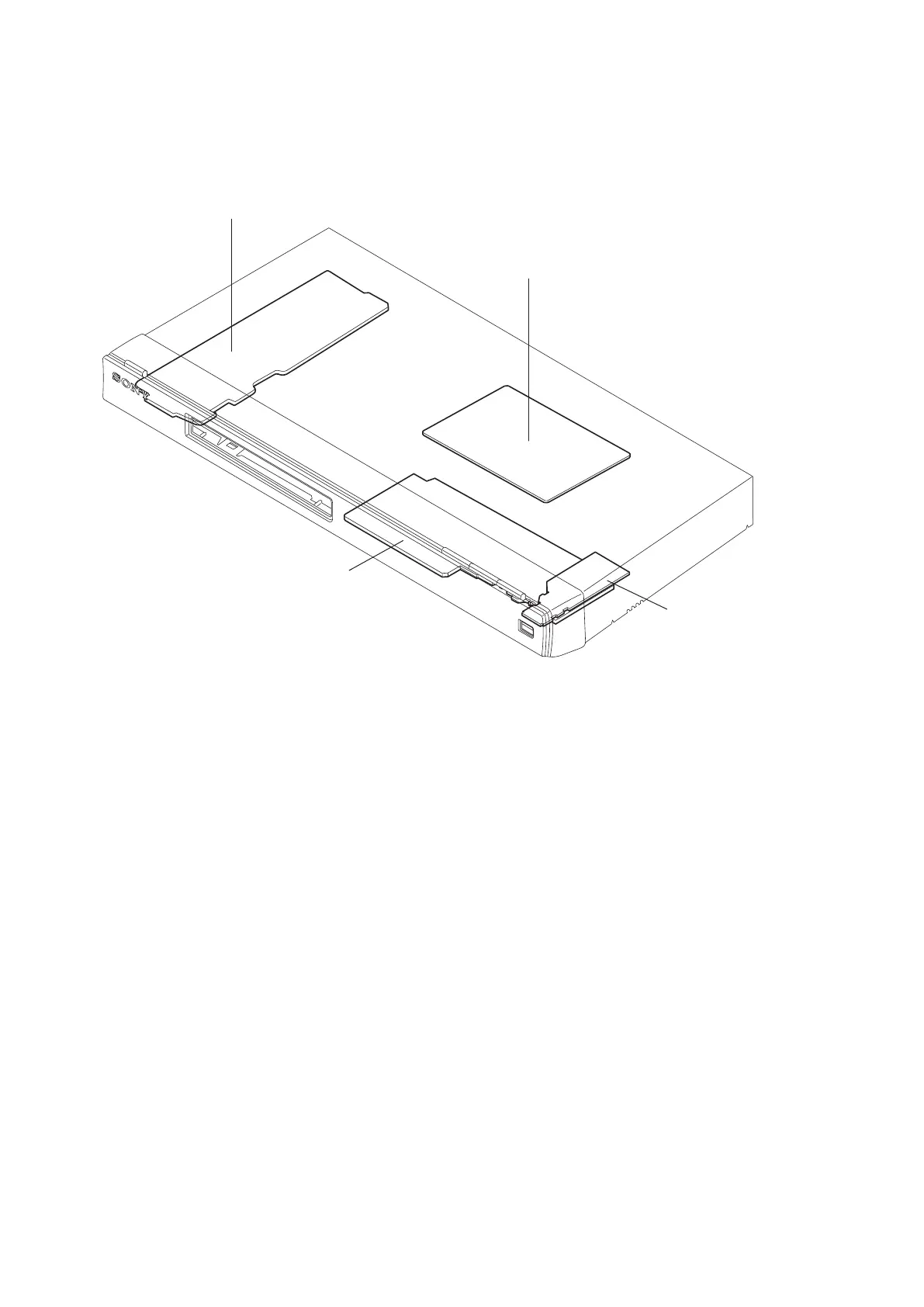

2-8. CIRCUIT BOARDS LOCATION
2-8E
FB-224 Board
(USB)
(DVP-NS728H,NS728HP)
MV-62 Board (DVP-NS718H:EXCEPT CND,AUS/NS728H:AUS)
MV-60 Board (DVP-NS611HP/NS710H/NS710HP/NS717HP/
NS718H:CND,AUS/NS728HP/NS728H:AUS)
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
Switching Regulator Board
SRV2187UC (DVP-NS611HP/NS718H:CND/
NS717HP/NS710HP:MX2)
SRV2186WW (DVP-NS710H:PX3,NS718HP,
NS718H:EXCEPT CND,NS728H,NS728HP)
IF-163 Board
(INTERFACE)
