Sony RMT-D187A - System Control and Signal Processor Diagram

DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP

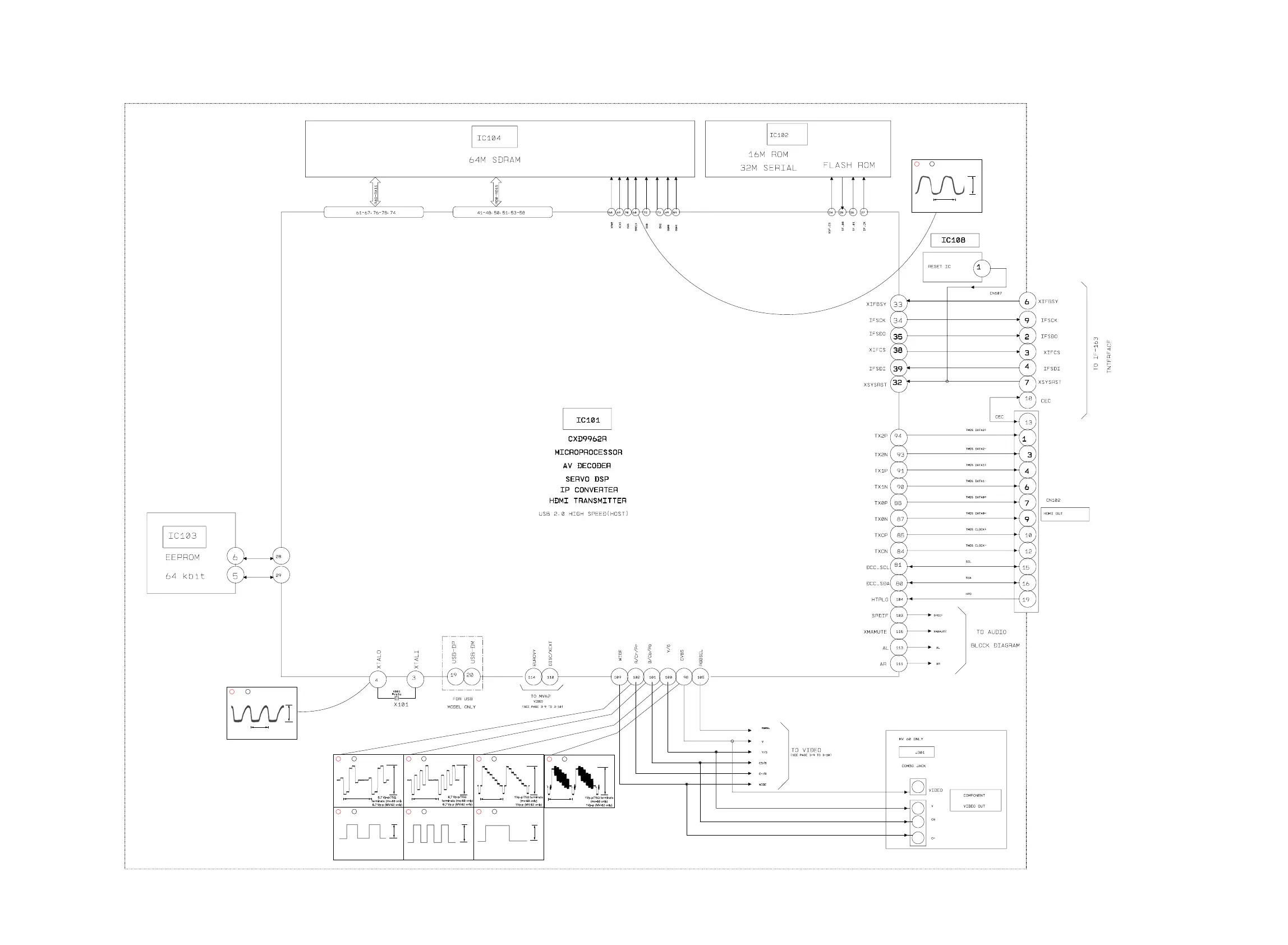

3-3. SYSTEM CONTROL/SIGNAL PROCESSOR BLOCK DIAGRAM
3-5 3-6
3.3Vp-p
135MHz
IC101
11
60
IC101
10
4
1.9Vp-p
27MHz
0.7Vp-p
-RGB mode
IC101 C/BAR PB
(MV-62 BOARD ONLY)
7
100
H
IC101 C/BAR PB
3
98
H
IC101 C/BAR PB
4
100
H
IC101 C/BAR PB
5
101
H
IC101 C/BAR PB
6
102
0.7Vp-p
IC101 C/BAR PB
(MV-62 BOARD ONLY)
8
101
-RGB mode
0.7Vp-p
IC101 C/BAR PB
(For MV-62 BOARD ONLY)
9
102
-RGB mode
