Sony RMT-D187A - Rear Panel, MV, and IF Board Disassembly (Non-Euro)

2-4
DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP

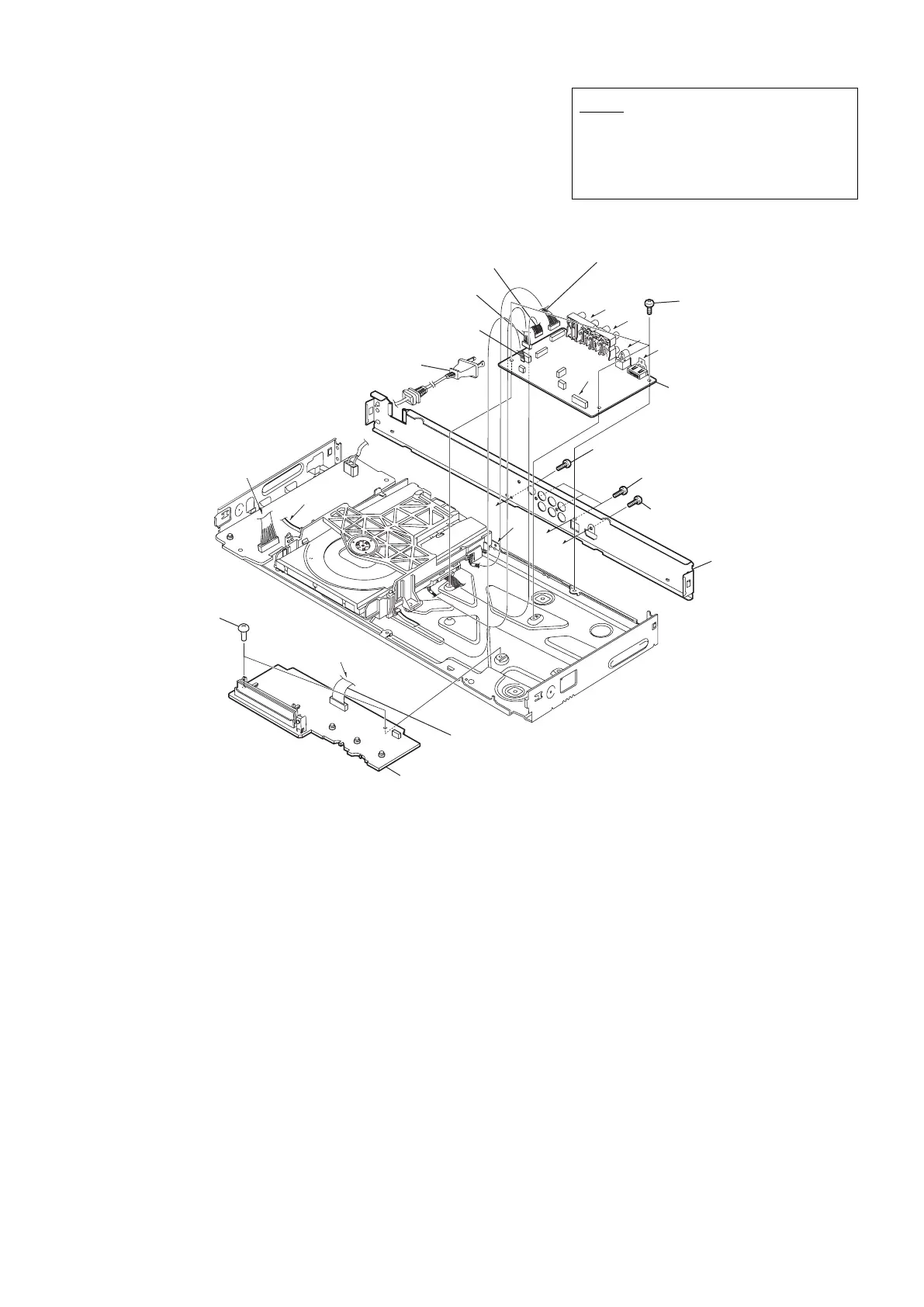

2-5. REAR PANEL, MV BOARD and IF BOARD
2-5-1. REAR PANEL, MV-60 BOARD, IF-163 BOARD
Non Euro Model
(DVP-NS611HP/NS710H/NS710HP/NS717HP/
NS718HP/NS728HP)
NS718H:CND,AUS
NS728H:AUS
Note:
Caution Point on the PWB IF-163
When handling IF-163 PWB avoid contact with
the sharp metal edge on the top side of Vacuum
Fluorescent Display (ND402).
q; FMS-018 Flat Flexible Cable
(CN202, 5P)
7 FMO-018 Flat Flexible Cable
(CN101, 24P)
qs MV-60 Board
8 MD-125 Harness
(CN201, 6P)
6 PM-152 Harness
(CN501, 10P)
2 Three Screws
+BV3 (3-CR)
5 Rear Panel
3 One Screw
+P 3 x 4 S-Type
1 One Tapping Screw
a
a
qf IF-163 Board
qd Two Screws
+BV3 (3-CR)
j
j
qa Three Screws
+BV3 (3-CR)
9 FIM-022 Flat Flexible Cable
(CN401,23P)
4 Power Cord
o
o
o
o
l
d
I
d
