Sony RMT-D187A - Rear Panel, MV, and IF Board Disassembly (Euro)

2-5
DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP

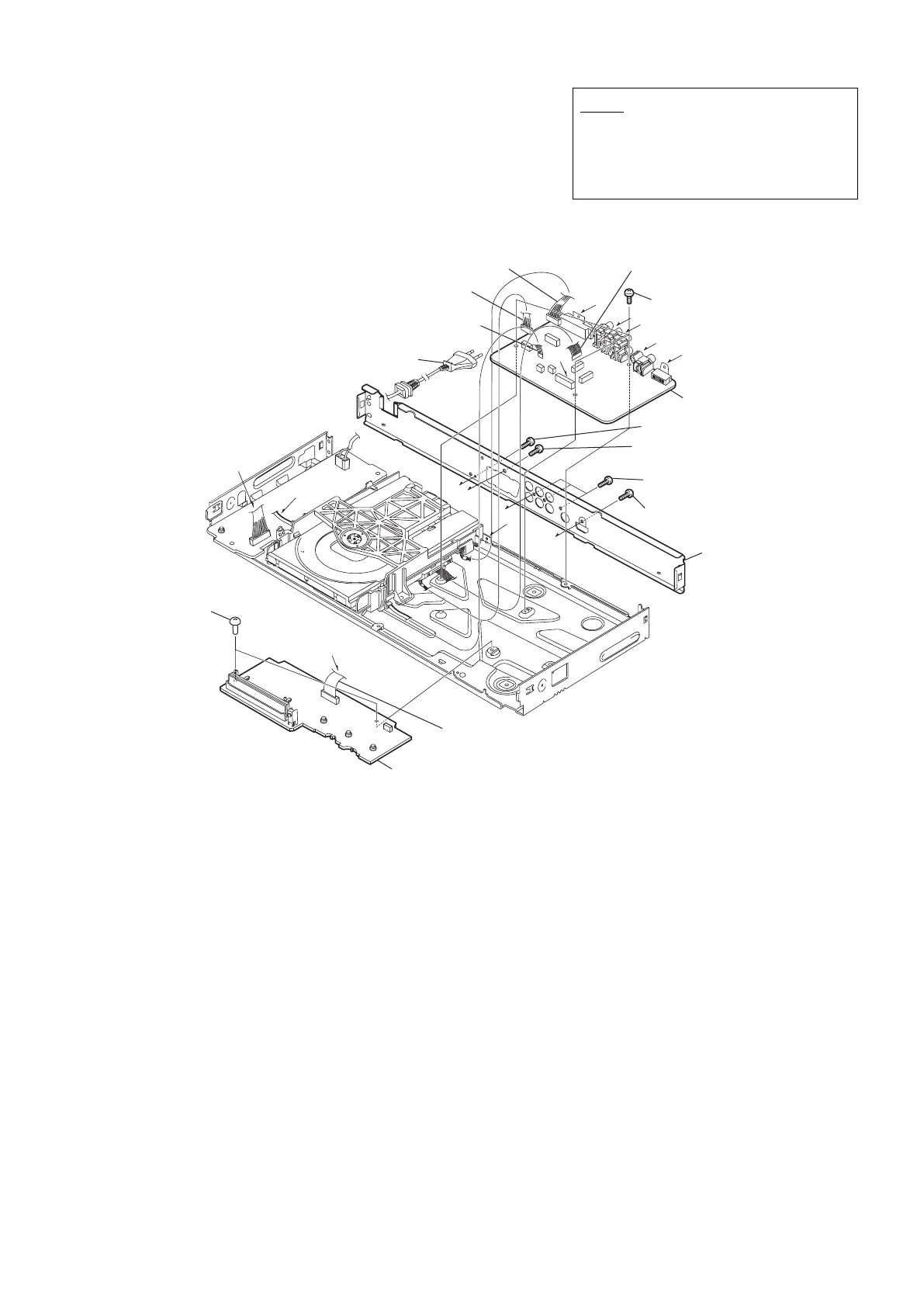

2-5-2. REAR PANEL, MV-62 BOARD, IF-163 BOARD
Euro Model
(DVP-NS718H:AEP,UK,RUS/NS728H:AEP,UK,RUS)
Note:
Caution Point on the PWB IF-163
When handling IF-163 PWB avoid contact with
the sharp metal edge on the top side of Vacuum
Fluorescent Display (ND402).
7 FMS-019 Flat Flexible Cable
(CN202, 5P)
qs MV-62 Board
8 MD-127 Harness
(CN201, 6P)
q; PM-152 Harness
(CN501, 10P)
3 Three Screws
+BV3 (3-CR)
6 Rear Panel
4 One Screw
+P 3 x 4 S-Type
2 One Screw
+P 3 x 4 S-Type
1 One Tapping Screw
a
a
qg IF-163 Board
qf Two Screws
+BV3 (3-CR)
j
j
qa Three Screws
+BV3 (3-CR)
qd FIM-022 Flat Flexible Cable
(CN401, 23P)
5 Power Cord
9 FMO-019 Flat Flexible Cable
(CN101, 24P)
o
o
o
o
l
d
k
I
d
k
