Sony RMT-D187A - Switching Regulator Board (SRV2187 UC) Wiring

DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP

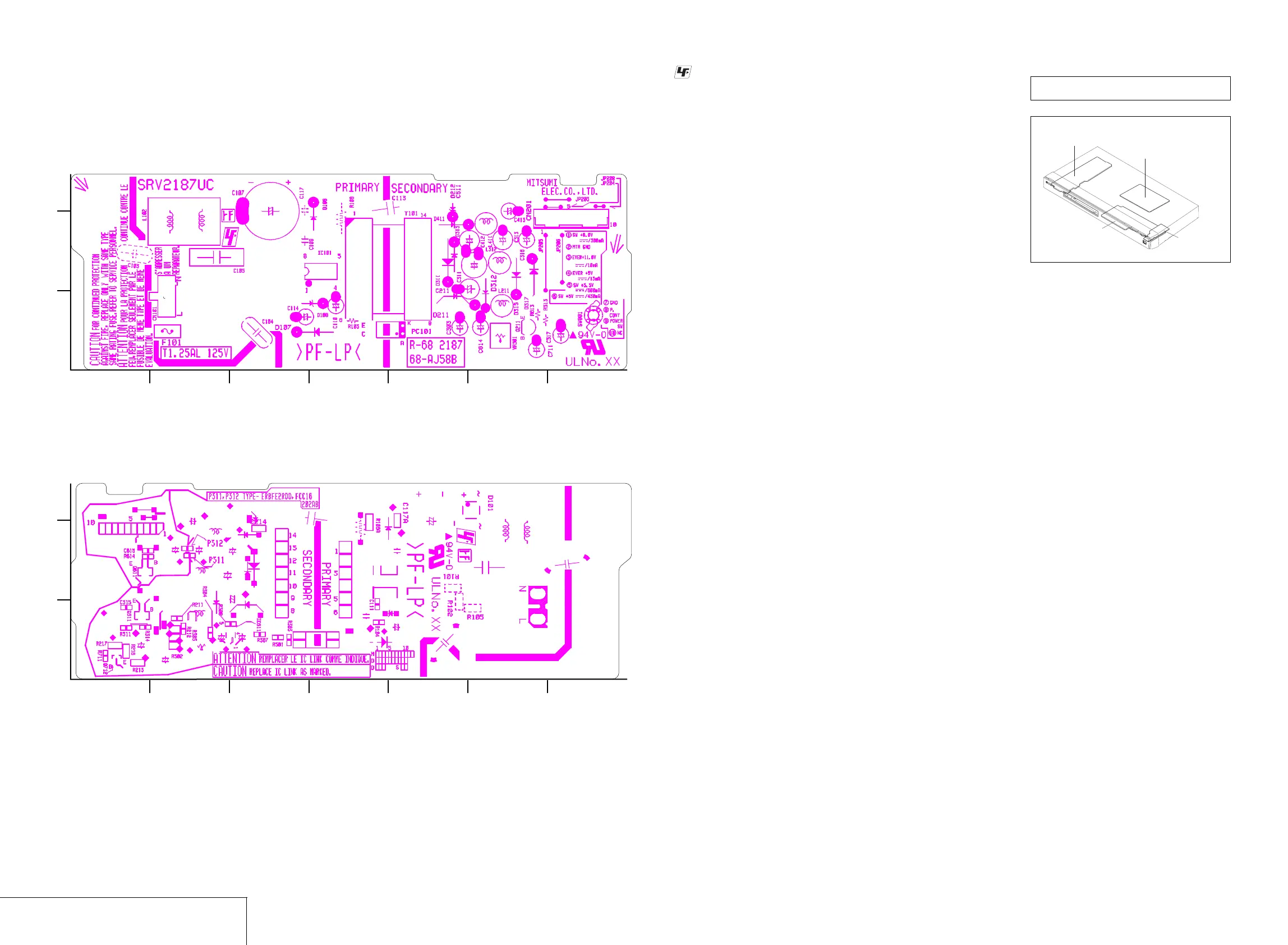

SWITCHING REGULATOR BOARD (SRV2187UC) PRINTED WIRING BOARD
(DVP-NS611HP/NS710H:EXCEPT PX3/NS710HP/NS717HP)
(NS718H:CND)
SWITCHING REGULATOR BOARD (SRV2187UC) (SIDE A)
SWITCHING REGULATOR BOARD (SRV2187UC) (SIDE B)
• : Uses unleaded solder.
4 -324-31
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
SWITCHING REGULATOR BOARD
(SRV2187UC)
SIDE A
D100 A-4
D106 B-4
D107 A-3
D211 A-5
D212 C-5
D311 B-5
D312 A-6
D313 B-5
D315 A-6
D317 A-6
D411 B-5
IC101 B-4
Q211 A-6
SIDE B
D101 B-6
IC611 A-3
Q311 A-1
Q611 B-1
Q712 A-1
SWITCHING REGULATOR BOARD
(SRV2187UC)
FB-224 Board
(USB)
(DVP-NS728H,NS728HP)
MV-62 Board (DVP-NS718H:EXCEPT CND,AUS/NS728H:AUS)
MV-60 Board (DVP-NS611HP/NS710H/NS710HP/NS717HP/
NS718H:CND,AUS/NS728HP/NS728H:AUS)
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
IF-163 Board
(INTERFACE)
Switching Regulator Board
SRV2187UC (DVP-NS611HP/NS718H:CND/
NS717HP/NS710HP:MX2)
SRV2186WW (DVP-NS710H:PX3,NS718HP,
NS718H:EXCEPT CND,NS728H,NS728HP)
B
A
1
2
765
43
B
A
1
2
765
43
