Sony RMT-D187A - IF-163 Interface Board Wiring

DVP-NS611HP/NS710H/NS710HP/NS717HP/NS718H/NS718HP/NS728H/NS728HP
4-8

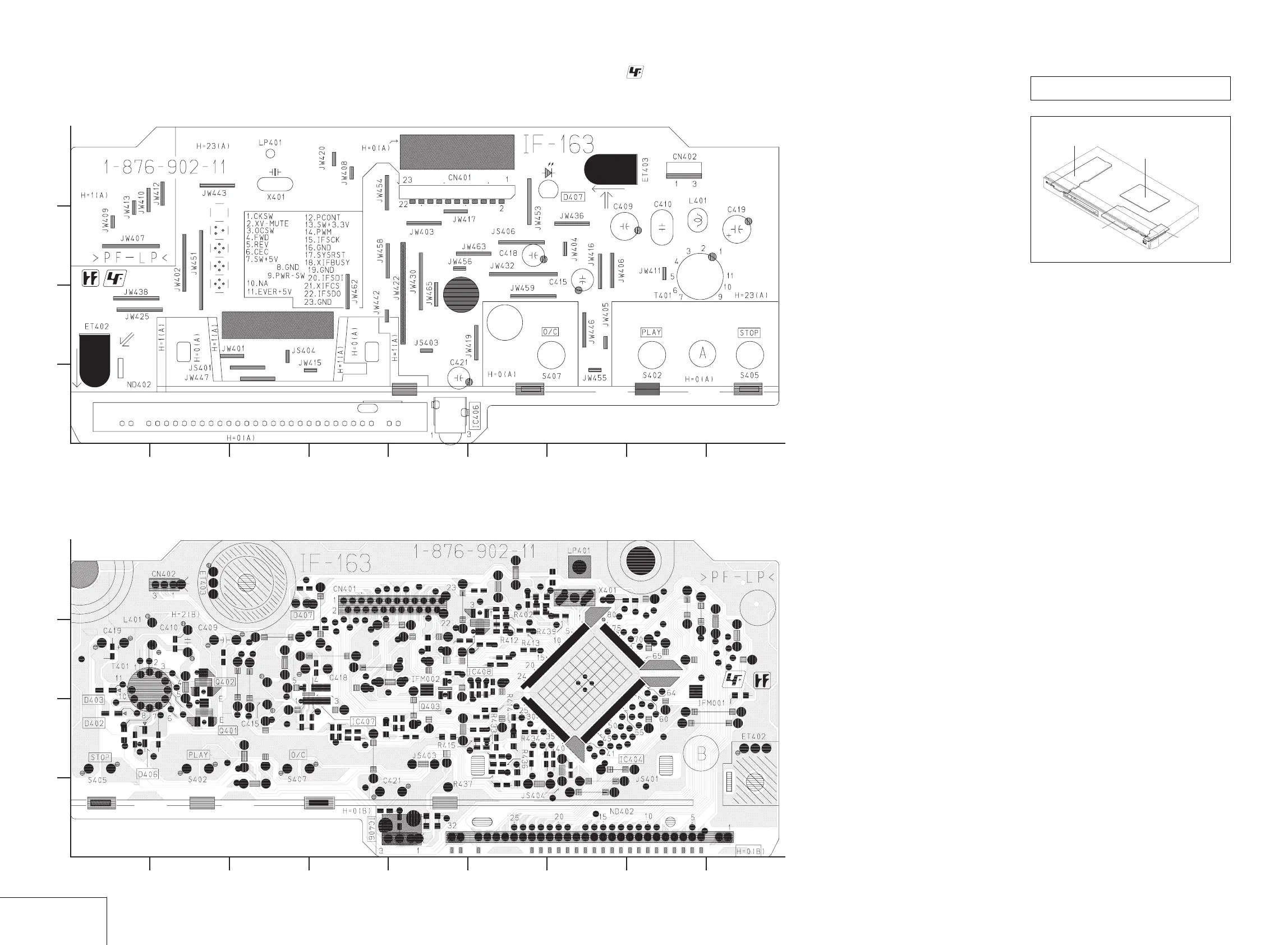

IF-163 (INTERFACE) PRINTED WIRING BOARD
4-7
INTERFACE
IF-163
IF-163 BOARD (SIDE A)
• : Uses unleaded solder.
IF-163 BOARD (SIDE B)
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
IF-163 BOARD
SIDE A
IC406 A-4
D407 D-7
SIDE B
IC404 B-7
IC406 A-4
IC407 B-4
IC408 C-5
Q401 B-3
Q402 C-3
Q403 B-5
D402 B-1
D403 C-1
D406 B-2
D407 C-3
A
B
C
D
1
2
5
43
6
7
98
A
B
C
D
1
2
5
43
6
7
98
FB-224 Board
(USB)
(DVP-NS728H,NS728HP)
MV-62 Board (DVP-NS718H:EXCEPT CND,AUS/NS728H:AUS)
MV-60 Board (DVP-NS611HP/NS710H/NS710HP/NS717HP/
NS718H:CND,AUS/NS728HP/NS728H:AUS)
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
IF-163 Board
(INTERFACE)
Switching Regulator Board
SRV2187UC (DVP-NS611HP/NS718H:CND/
NS717HP/NS710HP:MX2)
SRV2186WW (DVP-NS710H:PX3,NS718HP,
NS718H:EXCEPT CND,NS728H,NS728HP)
