Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HT-CT780
76
R951 1-216-849-11 METAL CHIP 220K 5% 1/10W
(Except US, CND, TW)
R952 1-216-821-11 METAL CHIP 1K 5% 1/10W
(Except US, CND, TW)
0 R953 1-216-793-91 METAL CHIP 4.7 5% 1/10W
0 R954 1-216-793-91 METAL CHIP 4.7 5% 1/10W
0 R955 1-216-864-91 SHORT CHIP 0
R965 1-216-821-11 METAL CHIP 1K 5% 1/10W
R971 1-216-849-11 METAL CHIP 220K 5% 1/10W
R976 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R977 1-218-887-11 METAL CHIP 47K 0.5% 1/10W
R978 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R987 1-216-821-11 METAL CHIP 1K 5% 1/10W
0 R997 1-216-864-91 SHORT CHIP 0 (US, CND, TW)
< TRANSFORMER >
0 T901 1-697-326-11 CONVERTER TRANSFORMER (01C327)
(Except US, CND, TW)
0 T901 1-697-327-11 CONVERTER TRANSFORMER (01C313)
(US, CND, TW)
< THERMISTOR >
0 TH901 1-811-315-31 POWER THERMISTOR (See Note 1)
0 TH902 1-812-011-11 THERMISTOR, POSITIVE (Except US, CND, TW)
< VARISTOR >
0 VDR901 1-811-165-31 VARISTOR (TVR10471-D) (See Note 1)
*************************************************************
MISCELLANEOUS
**************
0 AC1 1-834-966-42 POWER-SUPPLY CORD (AEP, E3, SP, PX)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-835-706-23 CORD, POWER-SUPPLY (BR)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-837-345-11 CORD, POWER-SUPPLY (TW)
0 AC1 1-837-822-21 CORD, POWER-SUPPLY (CH)
0 AC1 1-839-999-21 POWER-SUPPLY CORD (UK, EA3)
0 ACP1 1-785-504-21 ADAPTOR, CONVERSION (PX)
0 ACP2 1-770-019-72 ADAPTOR, CONVERSION PLUG 3P (SV)
(SP for Hong Kong only) (See Note 3)
BT1 1-490-558-92 BLUETOOTH MODULE
FFC1 9-833-606-96 FFC 14P
FFC2 9-833-606-95 FFC 24P
FFC3 9-833-606-94 FFC 18P
FFC4 9-833-606-97 FFC 6P
NFC1 8-989-602-00 RC-S730 (WW) (NFC module)
RF1 1-492-347-11 RF MODULATOR (SWA12-4V TX) (See Note 2)
SP1 1-859-097-11 SPEAKER (60 mm) (Woofer) (L-ch)
SP2 1-859-097-11 SPEAKER (60 mm) (Woofer) (R-ch)
SP3 1-859-096-11 SPEAKER (19 mm) (Tweeter) (L-ch)
SP4 1-859-096-11 SPEAKER (19 mm) (Tweeter) (R-ch)
SPC1 1-848-741-11 CONNECTION CABLE W/ SPK (L) (Left side)
SPC2 1-848-742-11 CONNECTION CABLE W/ SPK (R) (Right side)
*************************************************************
Note 1: When TH901 and VDR901 on the POWER board are
replaced, refer to “BOND FIXATION OF ELECTRIC
PARTS” on page 6.
Note 2: When the RF modulator (Ref. No. RF1) is replaced, refer
to “NOTES ON THE WIRELESS CONNECTION (LINK)
AFTER REPAIRS ARE COMPLETE” on page 5.
ACCESSORIES
************
4-565-123-12 MANUAL, INSTRUCTION
(ENGLISH, SPANISH, FRENCH) (US, CND)
4-565-123-22 MANUAL, INSTRUCTION (ENGLISH) (UK, AUS)
4-565-123-32 MANUAL, INSTRUCTION
(FRENCH, SPANISH, DUTCH) (AEP)
4-565-123-42 MANUAL, INSTRUCTION
(GERMAN, ITALIAN, POLISH) (AEP)
4-565-123-52 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, ARABIC, PERSIAN) (E3)
4-565-123-62 MANUAL, INSTRUCTION
(ENGLISH, TRADITIONAL CHINESE) (SP)
4-565-123-72 MANUAL, INSTRUCTION (ENGLISH) (PX)
4-565-126-11 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE)
(CH)
4-565-126-21 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE) (TW)
4-565-126-51 MANUAL, INSTRUCTION (PORTUGUESE) (BR)
4-570-575-11 INSTRUCTION MANUAL (ENGLISH, ARABIC)
(EA3)
501 1-492-931-11 REMOTE COMMANDER RMT-AH101U
(Remote control)
502 1-837-197-31 CORD, LIGHT PLUG (Optical digital cable)
503 4-548-768-01 WALL STAND (1 piece) (Wall mounting bracket)
504 2-580-607-01 SCREW, +PSW M5X12 (1 piece)
(for Wall mounting bracket)

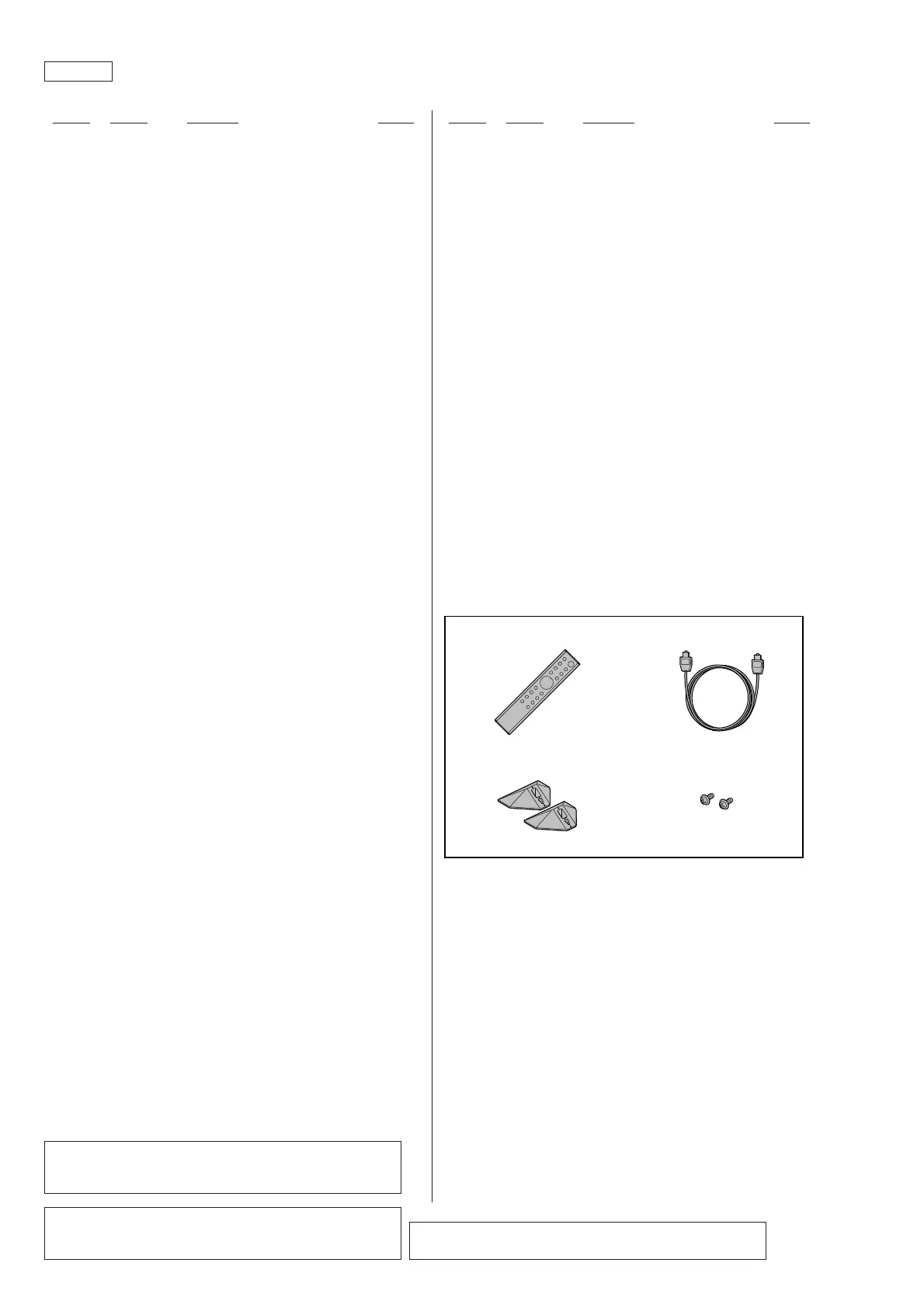

501 Remote control (1) 502 Optical digital cable (1)
503 Wall mounting brackets (2) 504 Screws (2)
POWER
Ver. 1.1
Note 3: Ref. No. ACP2 is a service part used only for the Singapore
model sold in Hong Kong.
