HT-MT300/MT301
10

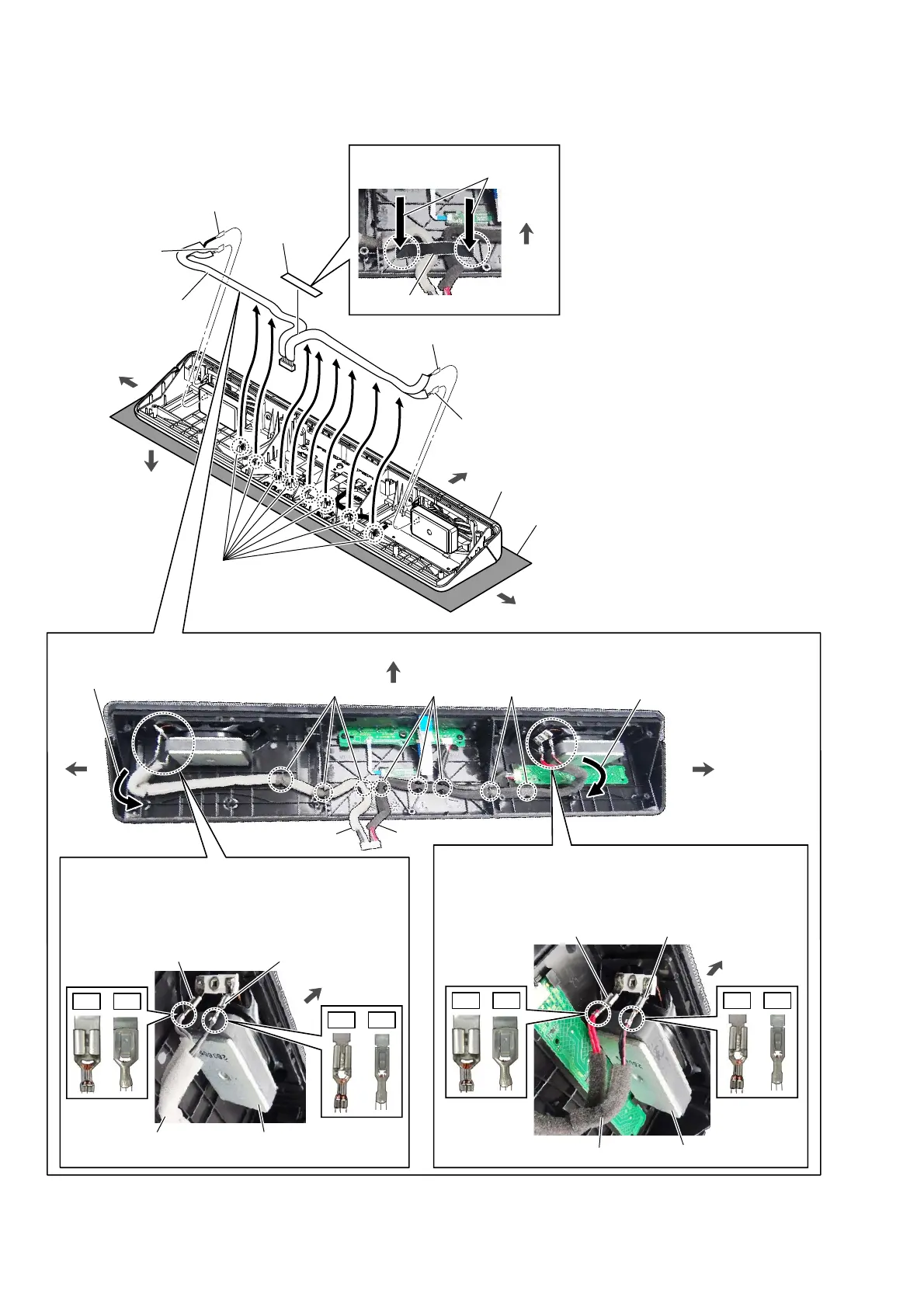

2-3. SPEAKER CONNECTION CABLE
front side
Press.
cushion (CL3)
left side
right side
1 cushion
(CL3)
2 Draw the speaker
connection cable
out of eight grooves.
6SHDNHUFRQQHFWLRQFDEOHVHWWLQJ
three
grooves
3 terminal (narrow)
[black/red]
3 terminal (wide)
[red/red]
3 terminal (wide)
[gray/gray]
3 terminal (narrow)
[black/gray]
left side
4 speaker
connection
cable
Note 1:
Lay a soft piece of cloth under the unit
to avoid damaging the top cabinet.
three
grooves
two
grooves
Arrange the speaker connection cable
in the direction of the arrow.
Arrange the speaker connection cable
in the direction of the arrow.
front side
loudspeaker (L-ch)
speaker connection
cable
terminal (wide)
[gray/gray]
terminal (narrow)
[black/gray]
[black][gray]
right side
front side
speaker connection cable
loudspeaker (R-ch)
terminal (wide)
[red/red]
terminal (narrow)
[black/red]
front side
top side
3DVWLQJSRVLWLRQRI
WKHFXVKLRQ&/
front
side
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOV5FK
Note 2:
When connecting the terminals of the speaker
connection cable to the loudspeaker, be careful
of the direction of the terminals.
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOV/FK
OK NGOK NG
OK NG
OK NG
top cabinet block
Note 2:
When connecting the terminals of the speaker connection
cable to the loudspeaker, be careful of the direction of the
terminals.
