Sony SA-MT300 - Top Cabinet Section

36
HT-MT300/MT301

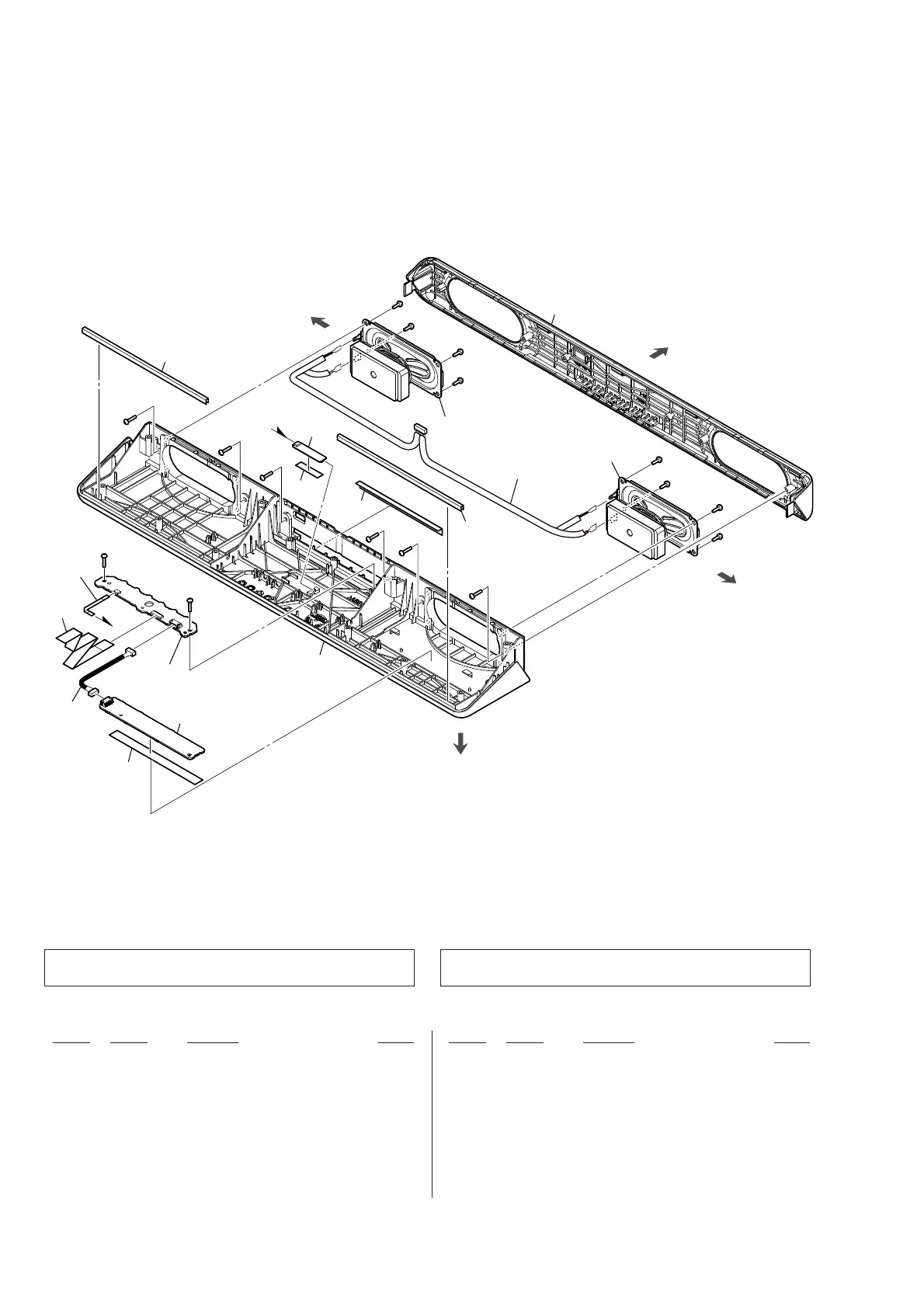

6-2. TOP CABINET SECTION
front side
right side
A
A
not
supplied
top side
left side
not supplied
(LED_CHUKEI board)
not supplied
#1
#1
#1
#1
#1
#1
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
FFC3
(6P)
FFC2
(20P)
SP2
SP1
51
52
53
54
54
55
56
58
57
Note 1: When the complete NFC board (Ref. No. 58) is replaced, refer
to “NFC CONNECTION CHECKING METHOD” on page 4.
Note 2: As for WIRE KIT (BAR FFC), all fl exible fl at cables (Ref.
No. FFC1, FFC2, FFC3) will be 1 set.
51 4-597-758-01 ADHESIVE (VG1)
52 A-2126-705-A TOUCH BOARD, COMPLETE
53 4-684-873-01 CABINET, TOP (for Charcoal Black)
53 4-684-873-21 CABINET, TOP (for Crème White)
54 4-597-757-11 CUSHION SPK
55 X-2594-038-2 FRAME ASSY, GRILLE (for Charcoal Black)
55 X-2594-039-2 FRAME ASSY, GRILLE (for Crème White)
56 4-597-759-01 CUSHION LED
57 4-586-705-21 DOUBLE ADHESIVE TAPE
58 A-2092-220-A NFC BOARD, COMPLETE (See Note 1)
FFC2 9-833-607-40 WIRE KIT (BAR FFC) (20P) (See Note 2)
FFC3 9-833-607-40 WIRE KIT (BAR FFC) (6P) (See Note 2)
SP1 1-859-199-11 LOUDSPEAKER (35X93 mm) (for L-ch)
SP2 1-859-199-11 LOUDSPEAKER (35X93 mm) (for R-ch)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
