Sony SA-MT300 - Bluetooth Module

HT-MT300/MT301
15

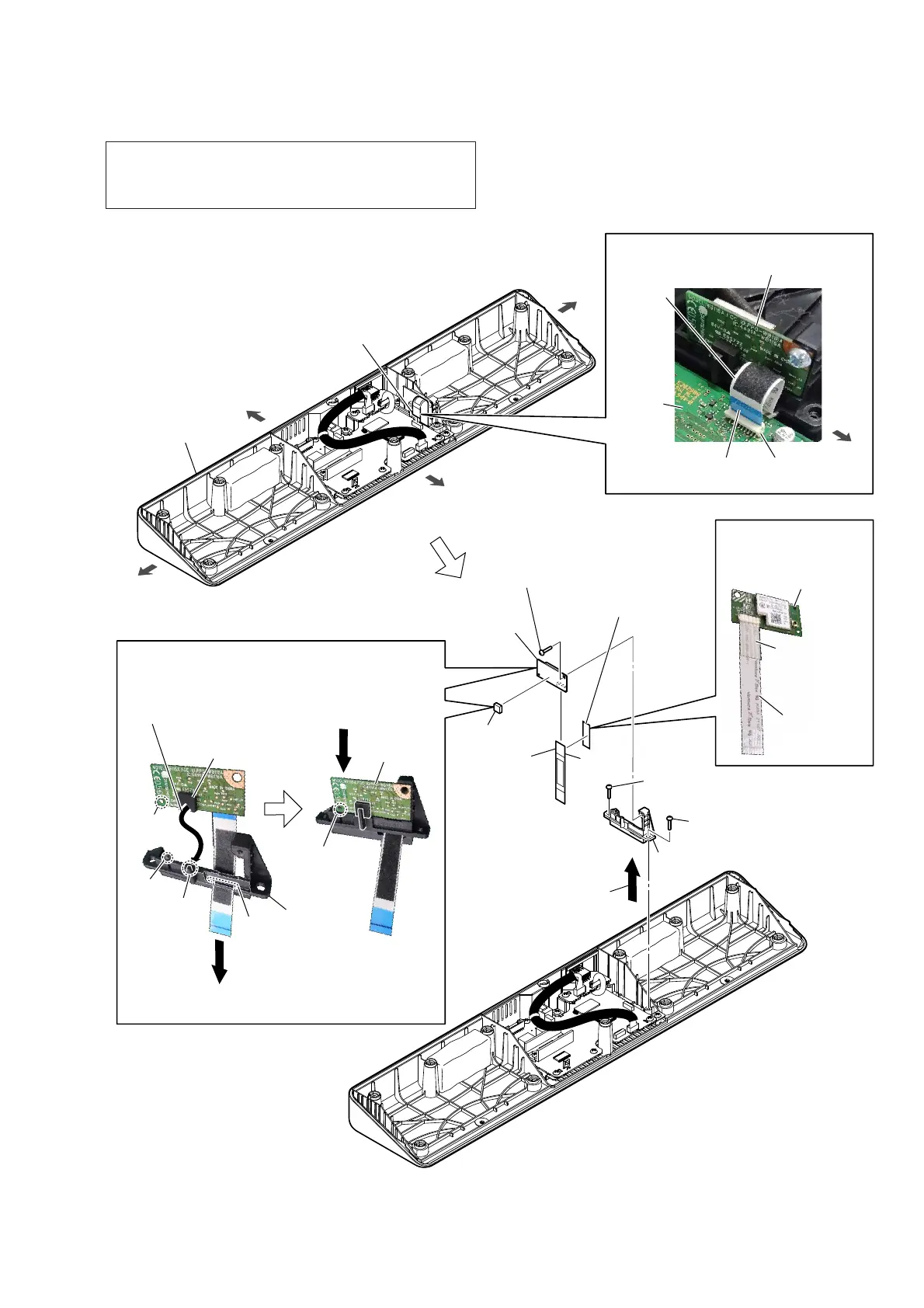

2-9. BLUETOOTH MODULE
1 FFC 18P
(CN2002)
7 FFC 18P
(CN2002)
6
filament tape
(sub material)
2 screw
(BVTP3 u 10)
2 screw
(BVTP3 u 10)
8 BT cushion
9 bluetooth
module
5 BT holder
BT cushion
hole
boss
rib
BT holder
bluetooth module
filament tape
(sub material)
bluetooth
module
bluetooth module
FFC 18P
MAIN
board
CN2002
FFC 18P
4 screw
(BVTP3 u 8)
front side
rear side
left side
right side
)OH[LEOHIODWFDEOHVHWWLQJ
The opposite side
is terminal side.
front
side
3 Remove the bluetooth
module block in the
direction of the arrow.
terminal
side
3DVWLQJSRVLWLRQRI
WKHILODPHQWWDSH
VXEPDWHULDO
+RZWRLQVWDOOWKHEOXHWRRWKPRGXOH
hole
Attach in order from 1 to 4.
1 Pass the FFC through the hole
of the BT holder.
2 Align the cushion (BT)
and the rib.
3 Align the hole
and the boss.
4 Push in the bluetooth
module to lock it.
bottom cabinet block
Note: When the bluetooth module is replaced, refer to “NFC CON-
NECTION CHECKING METHOD” on page 4 and “WIRE-
LESS CONNECTION (LINK) WORK OF BAR SPEAKER
AND SUBWOOFER” on page 5.
