Sony SA-MT300 - LED_CHUKEI Board

HT-MT300/MT301
12

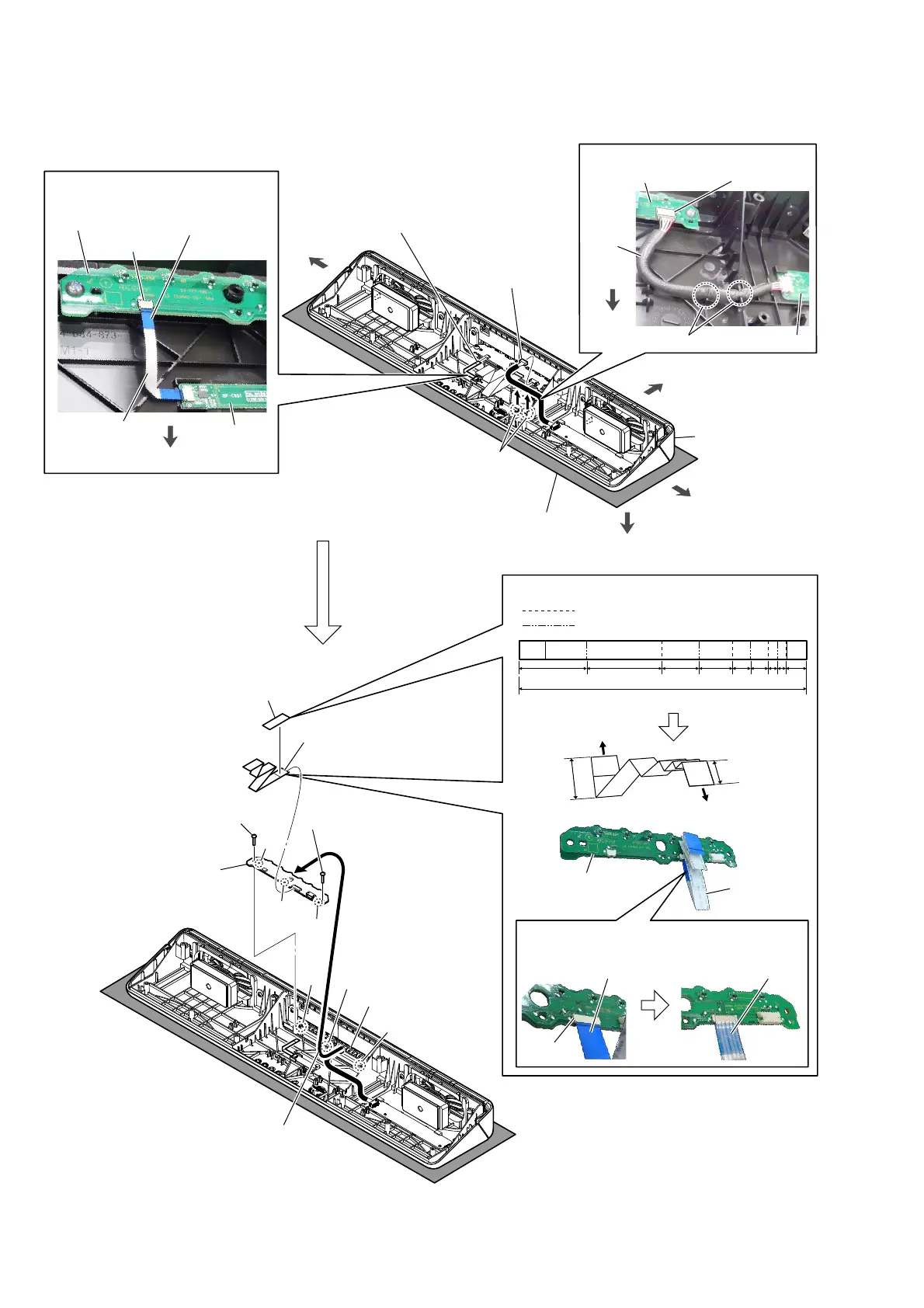

2-6. LED_CHUKEI BOARD
4 screw
(BVTP3 u 8)
4 screw
(BVTP3 u 8)
7 FFC 20P
(CN5001)
6
filament tape
(sub material)
slot
1 FFC 6P
(CN5003)
2 TOUCH board cable
connector (CN5002)
3 Draw the TOUCH board cable
out of two grooves.
NFC board
FFC 6P
LED_CHUKEI
board
LED_CHUKEI board
The opposite side
is terminal side.
CN5001
long
short
LED_CHUKEI board
CN5001
MAIN board
CN2006
TOUCH board
728&+ERDUGFDEOHVHWWLQJ
two grooves
TOUCH
board
cable
LED_CHUKEI board
5 Draw the LED_CHUKEI board out
of the slot in top cabinet block.
filament tape
(sub material)
FFC 20P
front side
left side
right side
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the top cabinet.
top side
CN5002
rear side
+RZWRLQVWDOOWKHIOH[LEOHIODWFDEOH
$IIL[LQJWKHILODPHQWWDSHVXEPDWHULDO
hole
hole
hole
boss
boss
boss
8 LED_CHUKEI board
Note 2:
When installing the
LED_CHUKEI board,
align the three bosses
and three holes.
)OH[LEOHIODWFDEOHVHWWLQJ
CN5003
The opposite side
is terminal side.
rear side
: Mountain fold
: Valley fold
41 47 25 25 15 15 5 5 17
195
Unit: mm
top cabinet block
