Sony SA-MT300 - Top Cabinet Block, Bottom Cabinet Block

HT-MT300/MT301
9
Note: Follow the disassembly procedure in the numerical order given.

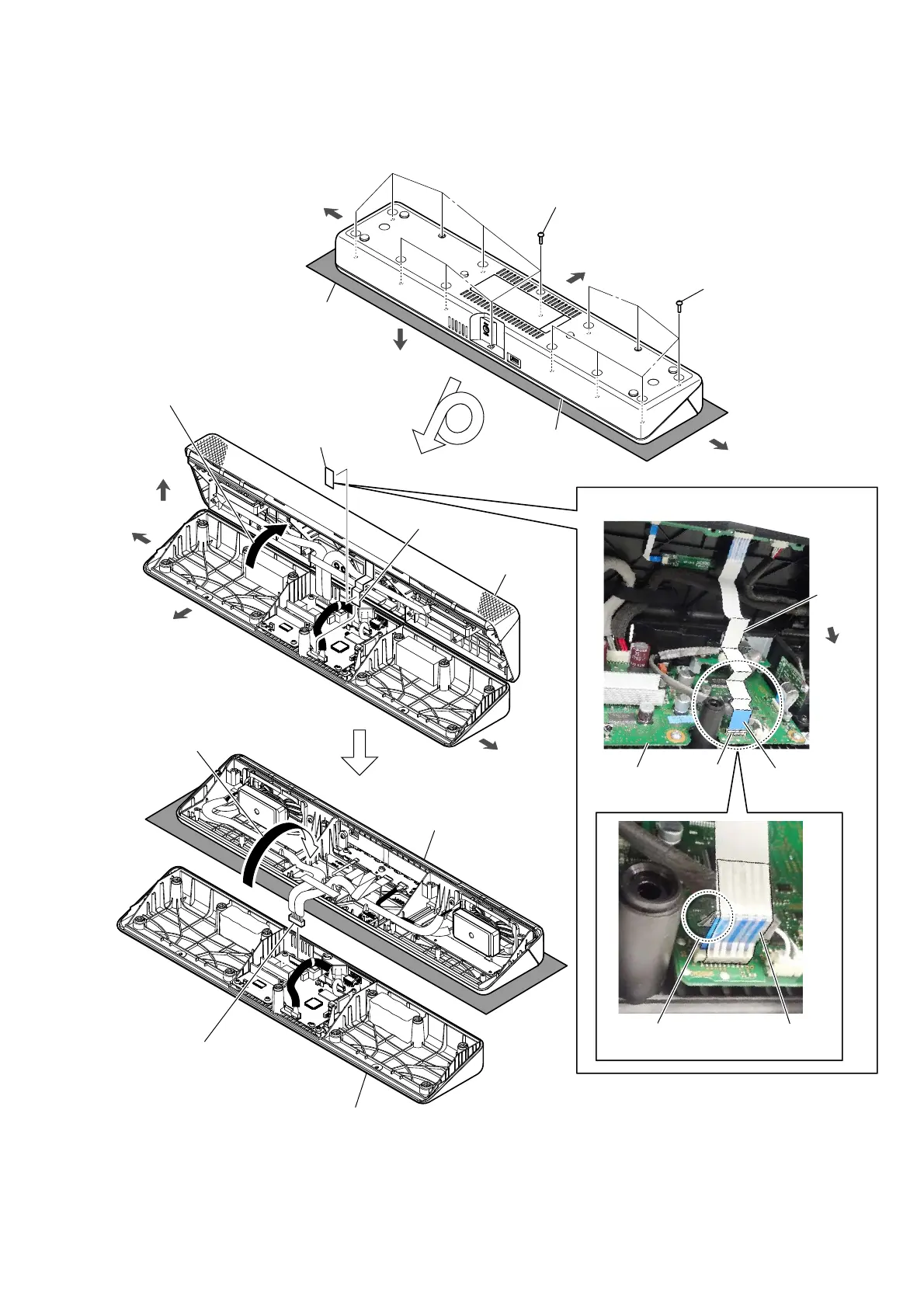

2-2. TOP CABINET BLOCK, BOTTOM CABINET BLOCK
connector
(CN2006)
1 eight screws
(BVTP3 u 10)
1 six screws
(BVTP3 u 10)
3
filament tape
(sub material)
front side
front side
top cabinet block
5 Open the top
cabinet
block in the direction
of the arrow.
left side
right side
left side
right side
2
Lift up the top cabinet block
in the direction of the arrow
at about a 90-degree angle.
6 speaker connection cable
connector (CN1001)
7
top cabinet block
Note:
Lay a soft piece of cloth under the unit
to avoid damaging the top cabinet.
top side
top side
top cabinet
4 FFC 20P
(CN2006)
8
bottom cabinet block
FFC 20P
front side
$IIL[LQJWKHILODPHQWWDSHVXEPDWHULDO
The opposite side
is terminal side.
MAIN board
filament tape
(sub material)
Two folding.
