Sony SA-MT300 - Bottom Cabinet Section

37
HT-MT300/MT301

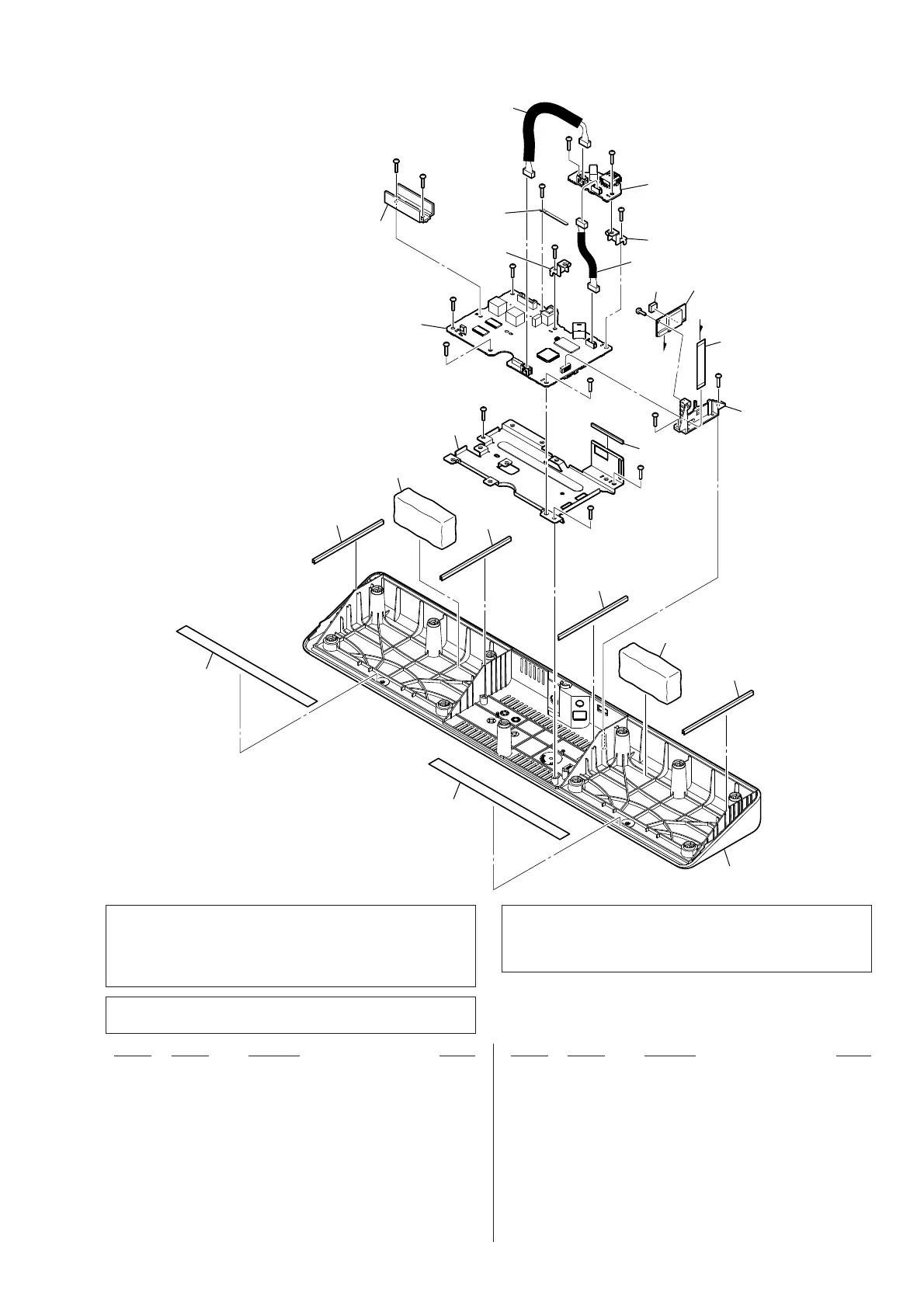

6-3. BOTTOM CABINET SECTION
#1
#1
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
B
B
FFC1
(18P)
BT1
not supplied
not supplied
not supplied
not supplied
101
102
102
103
103
103
103
104
105
not supplied
not supplied
not supplied
not supplied
(JACK board)
not supplied
not supplied
not
supplied
not supplied
Note 1: When the complete MAIN board (Ref. No. 104) is replaced,
refer to “NFC CONNECTION CHECKING METHOD”
on page 4, “WIRELESS CONNECTION (LINK) WORK
OF BAR SPEAKER AND SUBWOOFER” on page 5 and
“SPREADING OF COMPOUND” on page 7.
Note 2: As for WIRE KIT (BAR FFC), all fl exible fl at cables (Ref.
No. FFC1, FFC2, FFC3) will be 1 set.
Note 3: When the bluetooth module (Ref. No. BT1) is replaced, refer
to “NFC CONNECTION CHECKING METHOD” on page 4
and “WIRELESS CONNECTION (LINK) WORK OF BAR
SPEAKER AND SUBWOOFER” on page 5.
101 4-684-874-01 CABINET, BOTTOM (for Charcoal Black)
101 4-684-874-21 CABINET, BOTTOM (for Crème White)
102 4-597-757-11 CUSHION SPK
103 4-597-757-01 CUSHION SPK
104 A-2178-248-A MAIN BOARD, COMPLETE (SV)
(for Charcoal Black) (MT300: US, CND)
(See Note 1)
104 A-2178-249-A MAIN BOARD, COMPLETE (SV) (MT300: AEP)
(See Note 1)
104 A-2178-251-A MAIN BOARD, COMPLETE (SV) (MT300: UK)
(See Note 1)
104 A-2178-260-A MAIN BOARD, COMPLETE (SV) (for Crème White)
(MT300: US, CND) (See Note 1)
104 A-2178-261-A MAIN BOARD, COMPLETE (SV) (MT301: AEP)
(See Note 1)
104 A-2178-263-A MAIN BOARD, COMPLETE (SV) (MT301: UK)
(See Note 1)
105 4-687-783-01 CUSHION, BT
BT1 1-493-097-31 BLUETOOTH MODULE (See Note 3)
FFC1 9-833-607-40 WIRE KIT (BAR FFC) (18P) (See Note 2)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
