Sony SA-MT300 - Exploded Views and Parts List; Exploded Views of Cabinet Sections

35
HT-MT300/MT301
SECTION 6
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

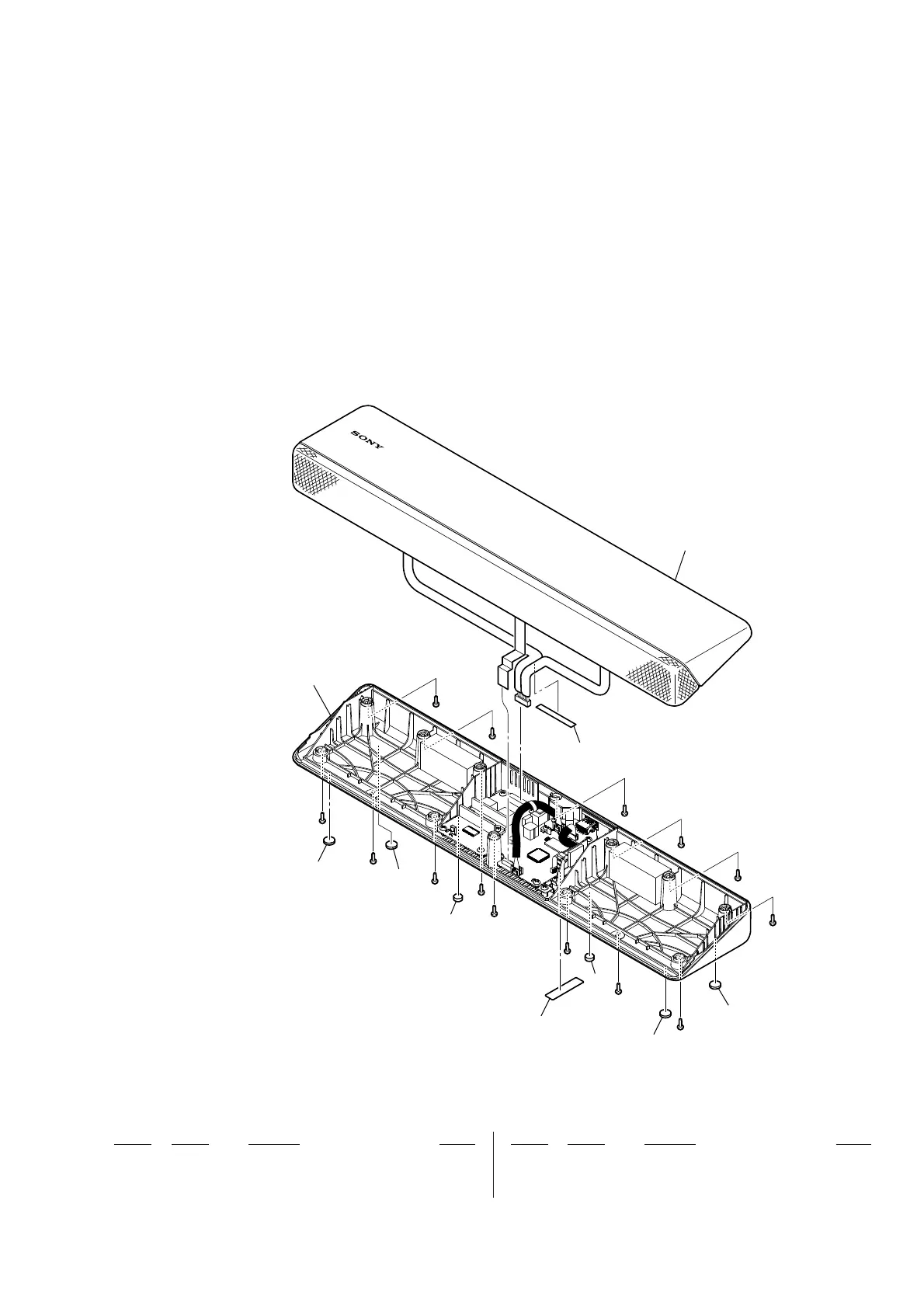

6-1. FOOT SECTION
#1
not supplied
1
1
2
3
3
1
1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
top cabinet section
bottom cabinet section
#1
1 4-597-760-01 CUSHION FOOT
2 4-691-695-01
SHEET (BOTTOM) (for Charcoal Black)
2 4-691-695-11 SHEET (BOTTOM) (for Crème White)
3 4-693-812-01 FOOT, RUBBER
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Refer to “COLOR VARIATION” on page 7
about color variation of the unit.
