Sony SA-MT300 - Grille Frame Assy; Loudspeaker (L-Ch, R-Ch)

HT-MT300/MT301
11

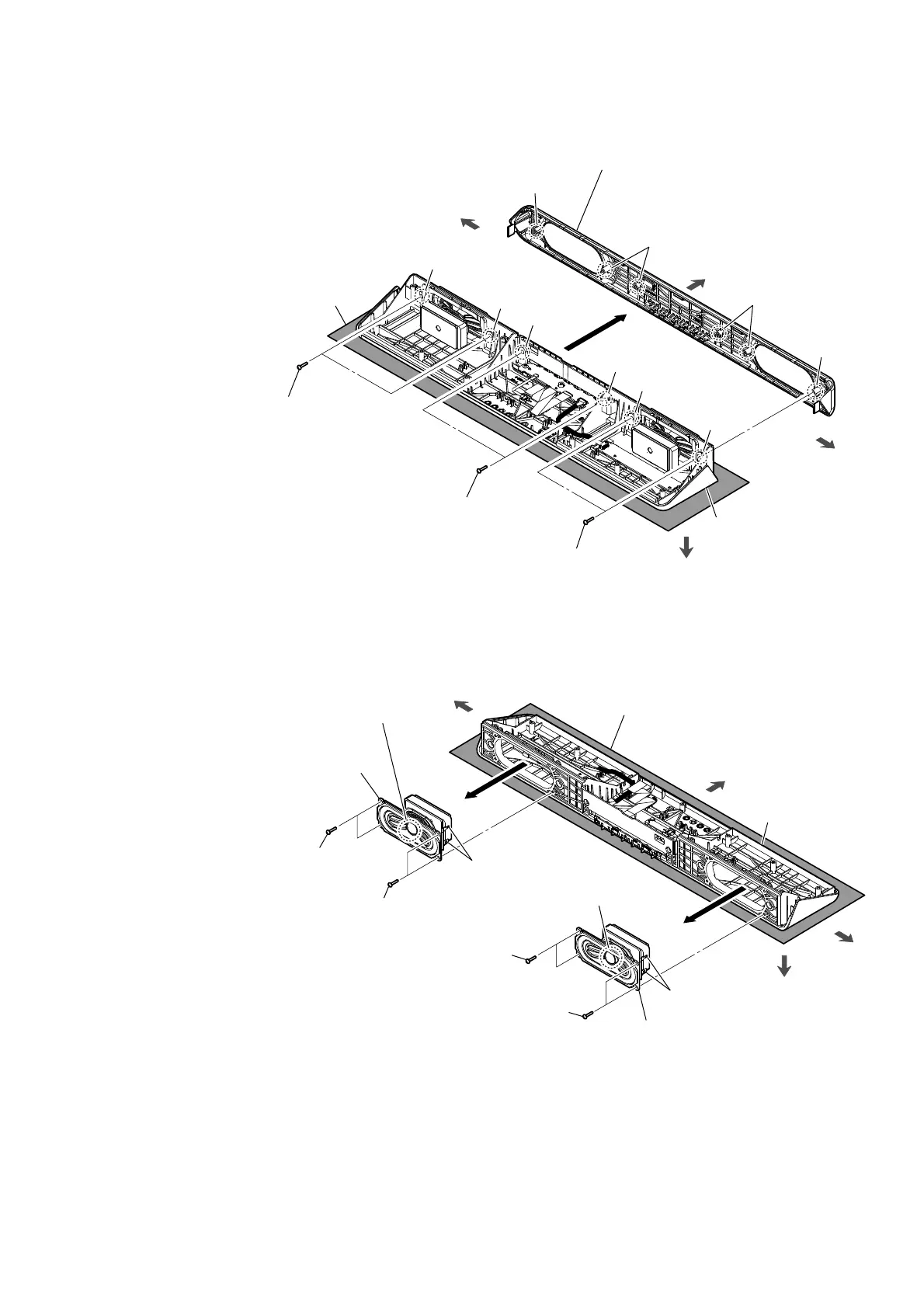

2-4. GRILLE FRAME ASSY
2-5. LOUDSPEAKER (L-CH, R-CH)
screw boss
front side
left side
right side
1 two screws
(BVTP3 u 10)
1 two screws
(BVTP3 u 10)
1 two screws
(BVTP3 u 10)
top side
concave
screw boss
two screw
bosses
two screw
bosses
concave
concave
concave
concave
concave
Note 1:
Lay a soft piece of cloth under the unit
to avoid damaging the top cabinet.
2 grille frame assy
Note 2:
When installing the grille frame assy, align
the six screw bosses and six concaves.
top cabinet block
Note 2:
Do not touch this portion.
rear side
left side
right side
1 two screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
2 loudspeaker (R-ch)
Note 3: When installing the loudspeaker (R-ch),
check the position of the terminals and
install it in the correct orientation.
Note 2:
Do not touch this portion.
Note 1:
Lay a soft piece of cloth under the unit
to avoid damaging the top cabinet.
terminals
terminals
2 loudspeaker (L-ch)
Note 3: When installing the loudspeaker (L-ch),
check the position of the terminals and
install it in the correct orientation.
top side
top cabinet block
