Setup
Before using your monitor, check that the following items are
included in your carton:
•LCD display
•Power cord
• HD15-HD15 video signal cable (analog RGB)
• DVI-D video signal cable (digital RGB)
• Audio cord (stereo miniplug)
• CD-ROM (utility software for Windows/Macintosh, Operating
Instructions, etc.)
• Warranty card
• Quick Setup Guide
Setup 1:Connect the video signal
cables
1 Slide up the back cover.
2 Tilt the display forward.
Connect a computer equipped with a DVI output
connector (digital RGB)
Using the supplied DVI-D video signal cable (digital RGB), connect the
computer to the monitor’s DVI-D input connector (digital RGB) for
INPUT2 (SDM-X53) or INPUT3 (SDM-X73/X93).
Connect a computer equipped with an HD15
output connector (analog RGB)
Using the supplied HD15-HD15 video signal cable (analog RGB),
connect the computer to the monitor’s HD 15 input connector (analog
RGB) for INPUT1 or INPUT2 (SDM-X73/X93).

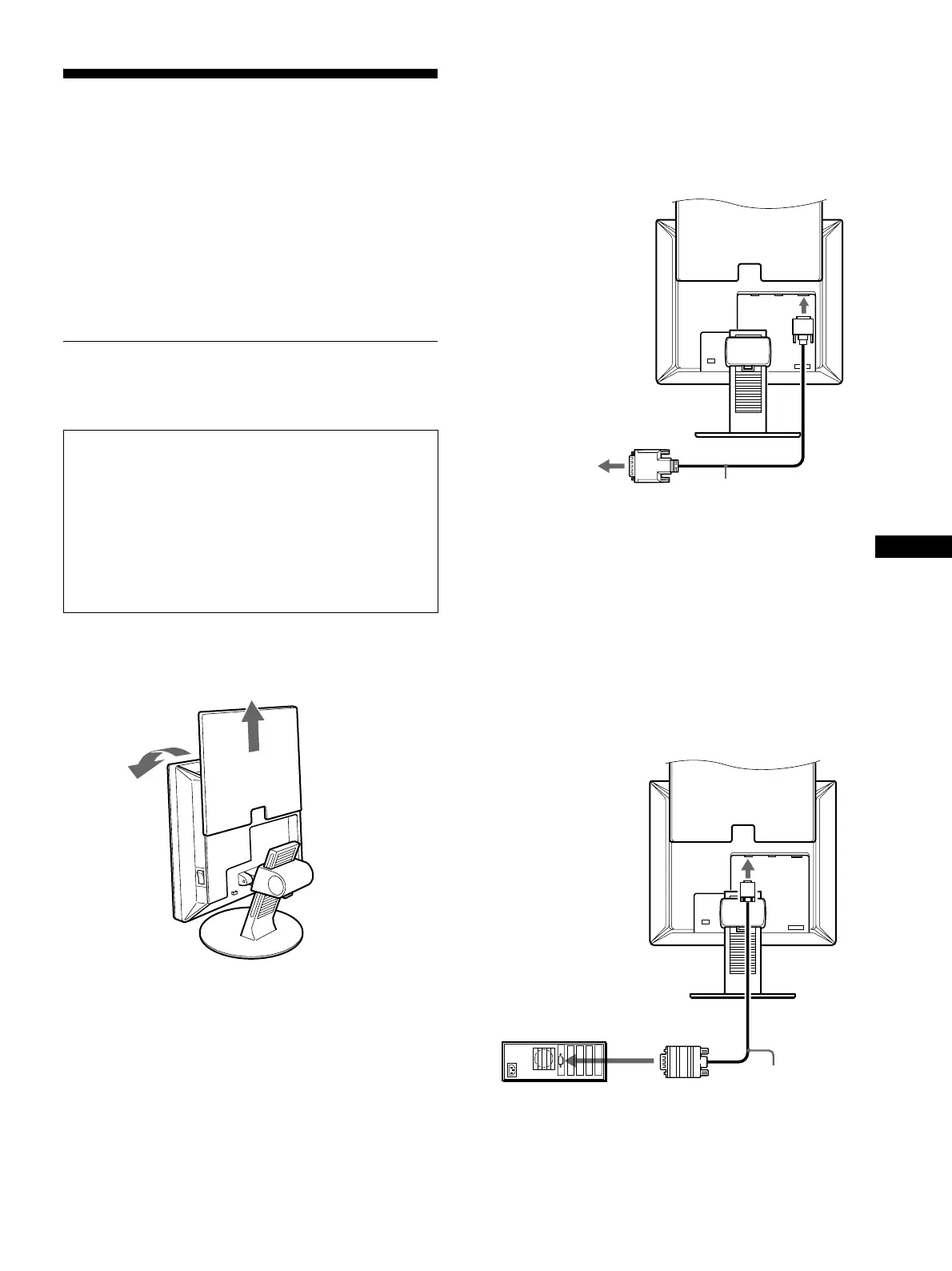

Connect the computer according to the following illustrations.
x Connecting to an IBM PC/AT or
compatible computer
• Turn off the monitor and computer before connecting
them.
• When connecting the computer to the monitor’s HD15
input connector (analog RGB), refer to “Connect a
computer equipped with an HD15 output connector
(analog RGB).”
Note
Do not touch the pins of the video signal cable connector as this might
bend the pins.
to the computer’s DVI output
connector (digital RGB)
to the DVI-D input
connector (digital RGB)
DVI-D video signal
cable (digital RGB)
(supplied)
IBM PC/AT or
compatible computer
to the HD 15 input
connector (analog RGB)
to the computer’s HD15 output
connector (analog RGB)
HD15-HD15 video signal
cable (analog RGB)
(supplied)
IBM PC/AT or compatible
computer
(continued)
To Next Page
