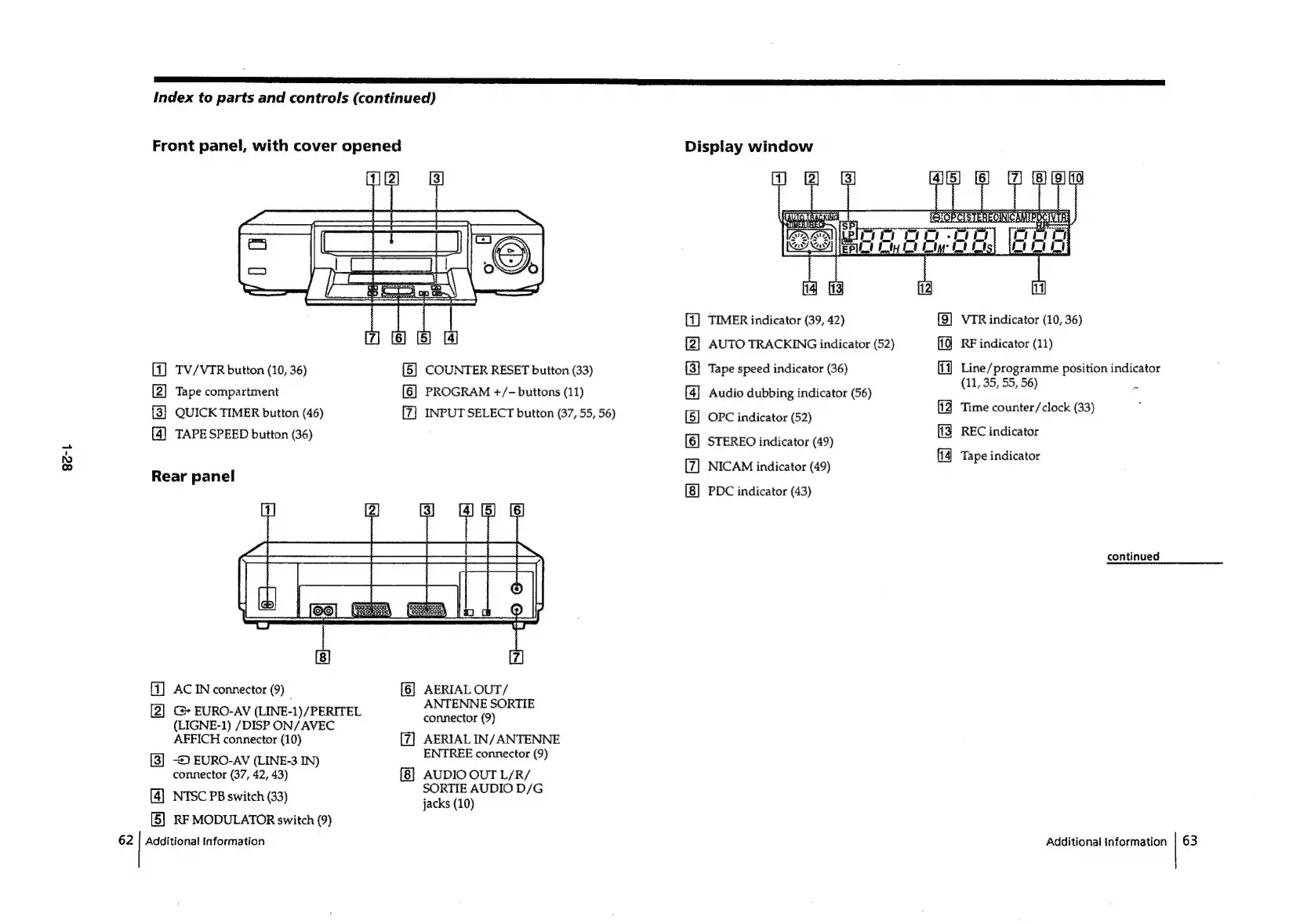

Index to parts and controls (continued)
Front panel, with cover opened
TV/VTR button (10, 36) [5] COUNTER RESET button (33)
[2] Tape compartment [6] PROGRAM +/- buttons (11)
{3} QUICK TIMER button (46) INPUT SELECT button (37, 55, 56)
(4] TAPE SPEED button (36)
Rear panel
AC IN connector (9) _ [6] AERIAL OUT/
[2] G EURO-AV (LINE-1)/PERITEL aaa: an
(LIGNE-1) /DISP ON/ AVEC
AFFICH connector (10) AERIAL IN/ANTENNE
[3] © EURO-AV (LINE-3 IN) ENTREE connector (9)
connector (37, 42, 43) AUDIO OUT L/R/
: SORTIE AUDIO D/G
[4] NTSC PB switch (33) jacks (10)
[5] RF MODULATOR switch (9)
Additional Information
Display window
[1] TIMER indicator (39, 42) [9]
[2] AUTO TRACKING indicator (52) |
{3] Tape speed indicator (36)
[4] Audio dubbing indicator (56)
[5] OPC indicator (52)
(6) STEREO indicator (49)
NICAM indicator (49)
PDC indicator (43)
aa &
VTR indicator (10, 36)
RF indicator (11)
Line/programme position indicator
(11, 35, 55, 56) é
Time counter/ clock (33)
REC indicator
Tape indicator
continued
Additional information | 63
