Sony SLV-EX5 - Section 2: Disassembly; Upper Case Removal; Rear Panel Removal; PSM17-501 Board Removal

2-1

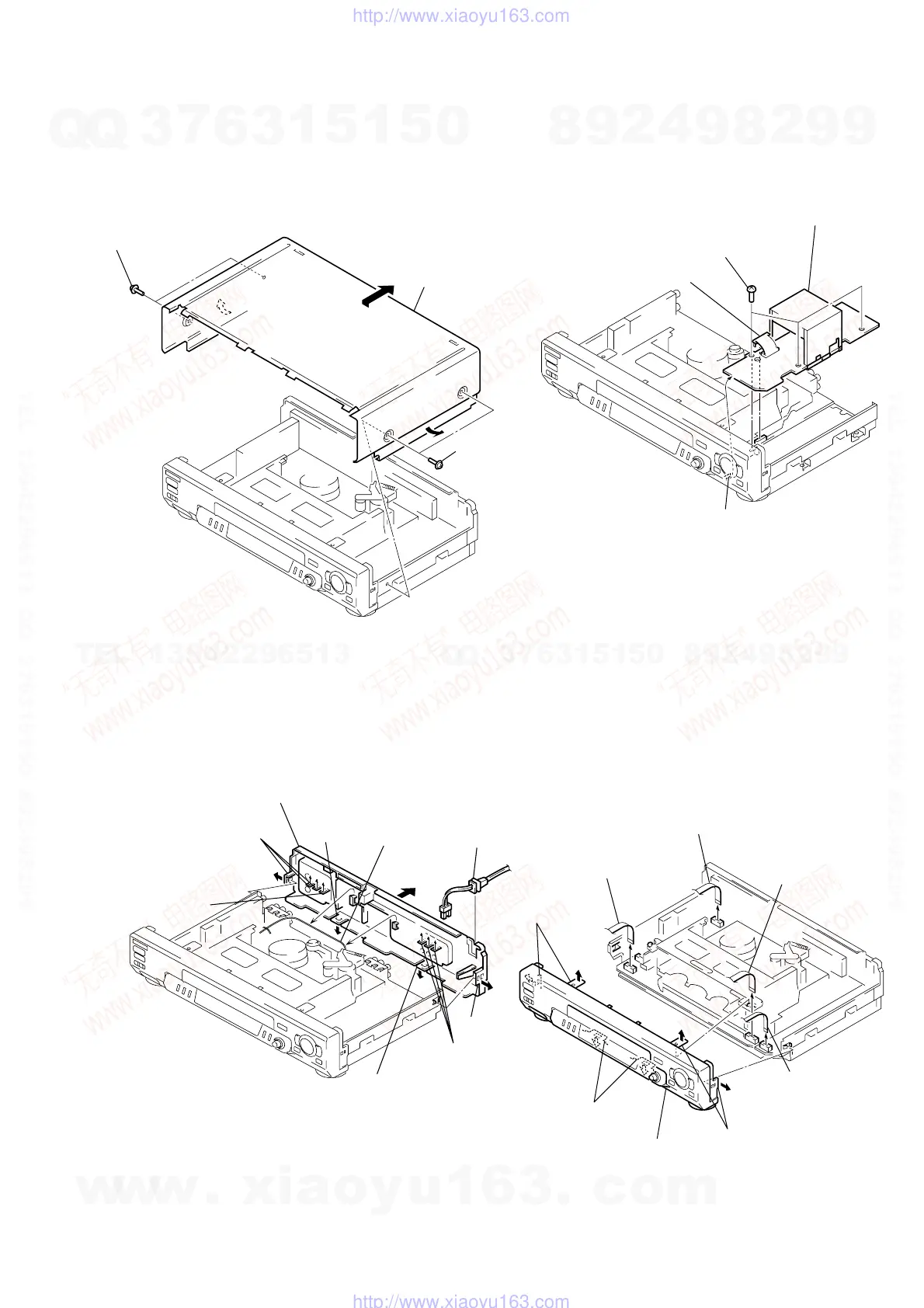

Note: Follow the disassembly procedure in the numerical order given.
2-1. UPPER CASE REMOVAL 2-3. PSM17-501 BOARD REMOVAL
2-2. REAR PANEL REMOVAL
2-4. FRONT PANEL SECTION REMOVAL
SECTION 2
DISASSEMBLY
SLV-EX5/EX8S/EX9S
1 Two tapping screws
2 Two tapping screws
3 Upper case
2 Harness
7 Three claws
(EX8S/EX9S)
3 Three claws
6 Claw
8 Claw
5 Claw
4 Claw
(EX8S/EX9S)
9 Rear panel
1 Power cord
(CN101)
4 PSM17-501 board
1 Connector
(CN600)
2 Three screws
(B3)
3 Claw
4 Flat cable (FDS-6)
(CN103)
1 Flat cable (FMF-39)
(CN401)
2 Flat cable (FFJ-3)
(CN401) (EX8S/EX9S)
3 Flat cable (FKK-3)
(CN411)
5 Two claws
7 Two claws
6 Two claws
8 Front panel section
